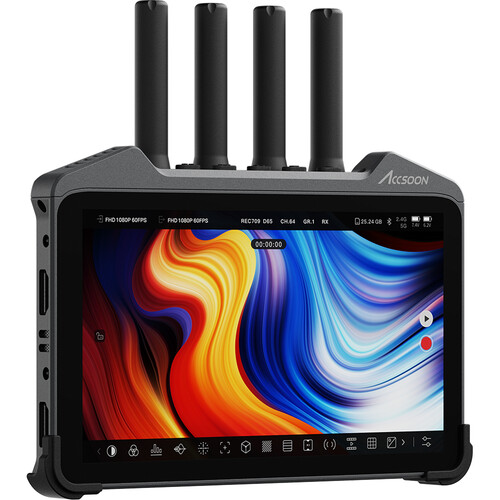

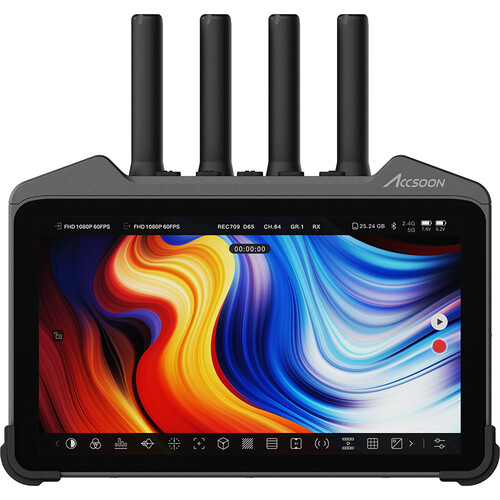

Name: Accsoon CineView M7 Pro 7" 4K Recording Monitor
SKU: M7PRO
Availability: InStock

Add pro cinema monitoring tools to your camera with the CineView M7 Pro 7″ 4K Recording Monitor with Wireless Transmitter/Receiver from Accsoon. This bright, 7″ on-camera multi-touch display offers 1920 x 1080 resolution, wireless streaming and receiver functions, 1000 cd/m² brightness, numerous imaging tools, and the ability to input and output up to DCI 4K60 video via HDMI and up to 1080p60 via 3G-SDI.

Wireless Transmitter/Receiver

The M7 Pro features an integrated dual-band wireless receiver that can receive 1920 x 1080p video from up to 1200′ away. When using the latest firmware update and a separately available receiver or the Accsoon SEE app, you can enable transmitter mode that can send your video to other destinations. The monitor also supports Wi-Fi and Bluetooth file transfer, cloud uploading, and live streaming to the Internet.

Powerful Touchscreen Display

This edge-lit LED-backlit LCD screen features a bright, multi-touch interface with 1920 x 1080 resolution that accurately monitors cinema-grade footage. It features a wide 176° viewing angle, and it is fully calibrated to 100% Rec.709 from the factory for accurate, true-to-life colors.

Versatile Input/Output

The monitor provides a 3G-SDI input and output supporting up to 1080p60 video. The HDMI 2.0 input and output support up to DCI 4K60 video. There is also a 3.5mm microphone jack to embed audio into video recording/output, and a 3.5mm headphone jack is provided with a source selector to monitor either embedded or mic input audio.

Multiple Imaging Tools

The integrated SmartOS features multiple tools to enhance your monitoring experience, including 3D LUT support, color grading, color management, waveforms, histograms, gamma settings, gain control, zebra, vectorscope, device status such as temperature and fan speed, and more.

Recording and Playback

The monitor features built-in recording via the SD card slot or the USB port via a flash drive or external SSD storage. You can record up to 4K60 from the HDMI input or 1080p60 via the SDI input, and it supports H.264/H.265 compression and CBR/VBR control. Recordings also allow you to save files with 3D LUTs applied. The SmartOS features a file management interface for playback and management of all your recording files.

Power Options

You can power the monitor using the dual L-series/NP-F slots on the back, or you can utilize the 2.1mm barrel 16.8V input or the USB-C PD input with a separately available 9V, 3A power supply. The monitor also allows you to pass power through to a camera or external device using the 5V USB-C output.

Additional Details

High-transparency display with antireflective DXC coating
1000 cd/m² brightness for easy viewing, even in outdoor environments
High 1000:1 contrast ratio
Customizable physical function buttons
Optional cage with a sun hood is available separately
Support for cinema color spaces, including 8/10-bit RGB and YUV 422/444
1/4″-20 mounting options on multiple sides
Aircraft-grade aluminum chassis
Passive and fan cooling

Specification

Display Size	7.0″ / 17.8 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	Yes
Video I/O	1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Outpu
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [Record/LUT/Firmware]
Video Format	HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50
Battery	2x L-Series Mount on Fixed Plate
Power Consumption	12 W (Typical) 28 W (Maximum)

Display

Panel Type	LCD
Display Size	7.0″ / 17.8 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 176° Vertical: 176°
Touchscreen	Yes
Maximum Brightness	1000 nits / cd/m²
Contrast Ratio	1000:1
HDR Support	Yes
Color Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra

Inputs/Outputs

Antenna I/O	4x RP-SMA Female
Video I/O	1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output
Embedded Audio	HDMI/SDI
Audio I/O	1x 1/8″ / 3.5 mm Mic Input 1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel 2.1 mm (16.8 VDC) Input 1x USB-C (9 VDC / 3 A) Input 1x USB-C (5 VDC / 2 A) Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [Record/LUT/Firmware]

Wireless

Wireless Range	1148.3′ / 350 m (Line-of-Sight)
Latency	60 ms
Wi-Fi	Unspecified Version; Dual-Band (2.4 & 5 GHz)
Bluetooth	Yes
Mobile App Compatible	No

Format Support

Video Format	HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50
Video Signal Conversion	SDI to HDMI HDMI to SDI
Audio Format	2-Channel 16-Bit 48 kHz
Wireless Video Compression	Compressed
Timecode Support	No

Recording

Pulldown Conversion	No
Camera Trigger	No
Pre-Roll Record	No
Encoding Formats	Up to 4096 x 2160 H.264 Up to 4096 x 2160 H.265
Maximum Audio Tracks	2

Power

Input Power	6 to 16.8 VDC 9 to 15 VDC at 3 A
Battery	2x L-Series Mount on Fixed Plate
Power Consumption	12 W (Typical) 28 W (Maximum)

Mounting

Tripod/Accessory Mounting

2x 1/4″-20 Female

General

Operating Conditions	14 to 104°F / -10 to 40°C
Material of Construction	Aluminum
Dimensions	7.2 x 4.8 x 1.2″ / 182.2 x 120.7 x 31.5 mm
Weight	1.1 lb / 494.3 g, Excluding Antenna
