Dconnect Category6A UTP Cables : CC-C6A-UUTP-LZ-305-PU

The CC‑C6A‑UUTP‑LZ‑305‑PU is a Category 6A Unshielded Twisted Pair (U/UTP) bulk network cable designed for high‑speed 10 Gigabit Ethernet and structured cabling installations. It is supplied as a 305 meter bulk reel with a violet (PU) Low Smoke Zero Halogen (LSZH) outer jacket — ideal for indoor use where enhanced fire safety and low smoke emission are required.

This cable is used to create horizontal and backbone network connections between switches, patch panels, workstations, access points, and otherEthernet devices in commercial buildings, data centers, education campuses, hospitals, and similar environments.

Its LSZH jacket makes it especially suitable for enclosed spaces with strict building fire codes, such as corridors, risers, equipment rooms, and high‑occupancy areas.

Performance & Standards

• Category: Cat 6A (Class EA)
• Supports: 10 GBASE‑T Ethernet at up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Standards Compliance:
  • ANSI/TIA‑568.2‑D
  • ISO/IEC 11801 Class EA
  • IEC 61156‑5
  • RoHS compliant

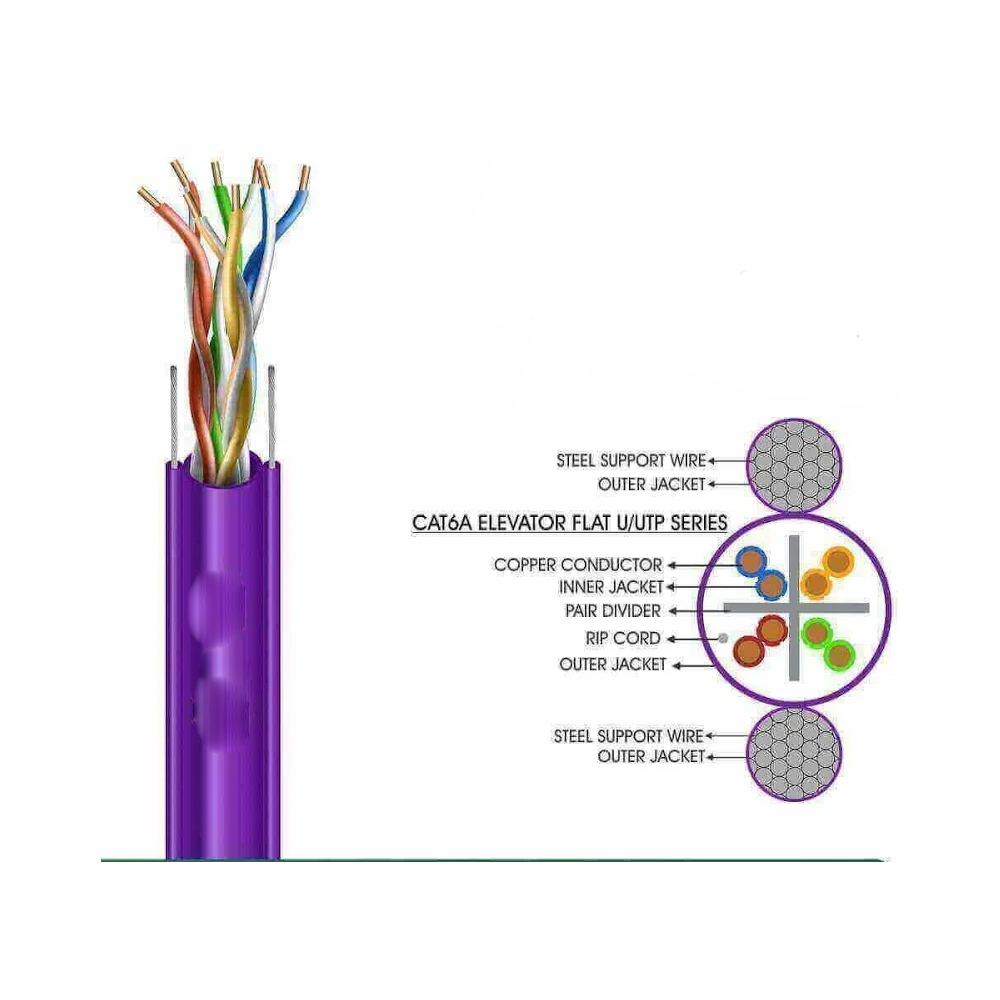

 Construction

• Topology: U/UTP — Unshielded Twisted Pair (no foil/braid)
• Pairs: 4 twisted pairs (8 conductors total)
• Conductor: 23 AWG solid bare copper for reliable signal transmission
• Separator: Central spline (non‑metallic) to reduce crosstalk (in many designs)

Jacket & Safety

• Jacket Material: LSZH (Low Smoke Zero Halogen)
  • Produces minimal smoke and no halogenated toxic gases during fire
  • Ideal for enclosed / populated indoor spaces
• Jacket Color: Violet (PU)
  • Helps visually identify specific cable types or network functions in large installations
