Name: DJI RS 3 Mini Gimbal Stabilizer
SKU: 19762
Availability: InStock

For Mirrorless Cameras

Designed expressly for mirrorless cameras, the DJI RS 3 Mini is a lightweight single-handed gimbal stabilizer. It supports up to 4.4 lb rigs and features Bluetooth control for select cameras and enhanced performance using the 3rd Gen RS stabilization algorithm. Weighing only 1.75 lb, the RS 3 Mini offers multiple control options, including a touchscreen, buttons, and the Ronin app.

Multiple Control Options

Use the 1.4″ OLED touchscreen to calibrate and set parameters for the RS 3 Mini.
Control gimbal movement, camera shutter, focus, and recording using the gimbal buttons.

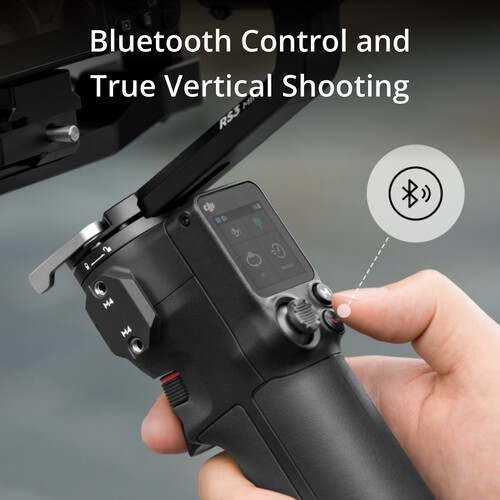

Access wireless control for select cameras using Bluetooth and the Ronin app.

Quick Release Plates

The dual-layer quick release plates make it easy to mount a camera onto the RS 3 Mini and eliminate the need to rebalance the gimbal after swapping out a new battery or memory card.

Horizontal and Vertical Modes

The RS 3 Mini can switch between horizontal mode and a vertical view for social media.
Switch between modes without the need for additional accessories.

Built-In Battery

The RS 3 Mini battery grip contains a built-in 2450mAh battery that provides a runtime of up to 10 hours, generous enough for shooting all day.
It charges in about 2.5 hours using the included USB-C cable.

Intelligent Functions

Create impressive effects using intelligent motion functions, including Panorama, Timelapse, and Tracking.

Accessories

An integrated NATO mount enables you to attach accessories like the RS Briefcase Handle.
The detachable tripod doubles as an extended grip.

Specification

Gimbal Design	Single Handgrip
Load Capacity	0.9 to 4.4 lb / 0.4 to 2 kg
Number of Axes	Three: Pitch (Tilt) / Roll / Yaw (Pan)
Camera Control	On Compatible Models
Mobile App Compatible	Yes: Android & iOS
Display Type	Fixed Touchscreen OLED
Dimensions	12.7 x 7.7 x 3.9″ / 323 x 195 x 98 mm
Weight	1.75 lb / 795.00 g

Gimbal

Load Capacity	0.9 to 4.4 lb / 0.4 to 2 kg
Number of Axes	Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range	Mechanical Range Roll: 335° (-95 to 240°) Pitch (Tilt): 320° (-110 to 210°) Yaw (Pan): 360° Unlimited
Follow Speed	Pan/Tilt/Roll: 360°/s
Counterweight	No
Joystick Controller	Yes (Included)

Compatibility

Camera Control	On Compatible Models
Camera Mounting Screw	1x 1/4″-20 Male

Connectivity

Inputs/Outputs	1x USB-C (2 A 5 VDC Power)
Wireless	Bluetooth 5.1
Mobile App Compatible	Yes: Android & iOS App Name: RONIN

Battery

Battery Type	1x 18650
Battery Runtime	10 Hours
Battery Charging Time	2.5 Hours

Power

Operating Voltage

7.2 VDC

General

Display Type	Fixed Touchscreen OLED
Operating Conditions	14 to 113°F / -10 to 45°C
Materials	Aluminum Alloy
Accessory Mounting	1 x 1/4″-20 Female 1 x NATO Rail
Dimensions	12.7 x 7.7 x 3.9″ / 323 x 195 x 98 mm
Weight	1.75 lb / 795.00 g
