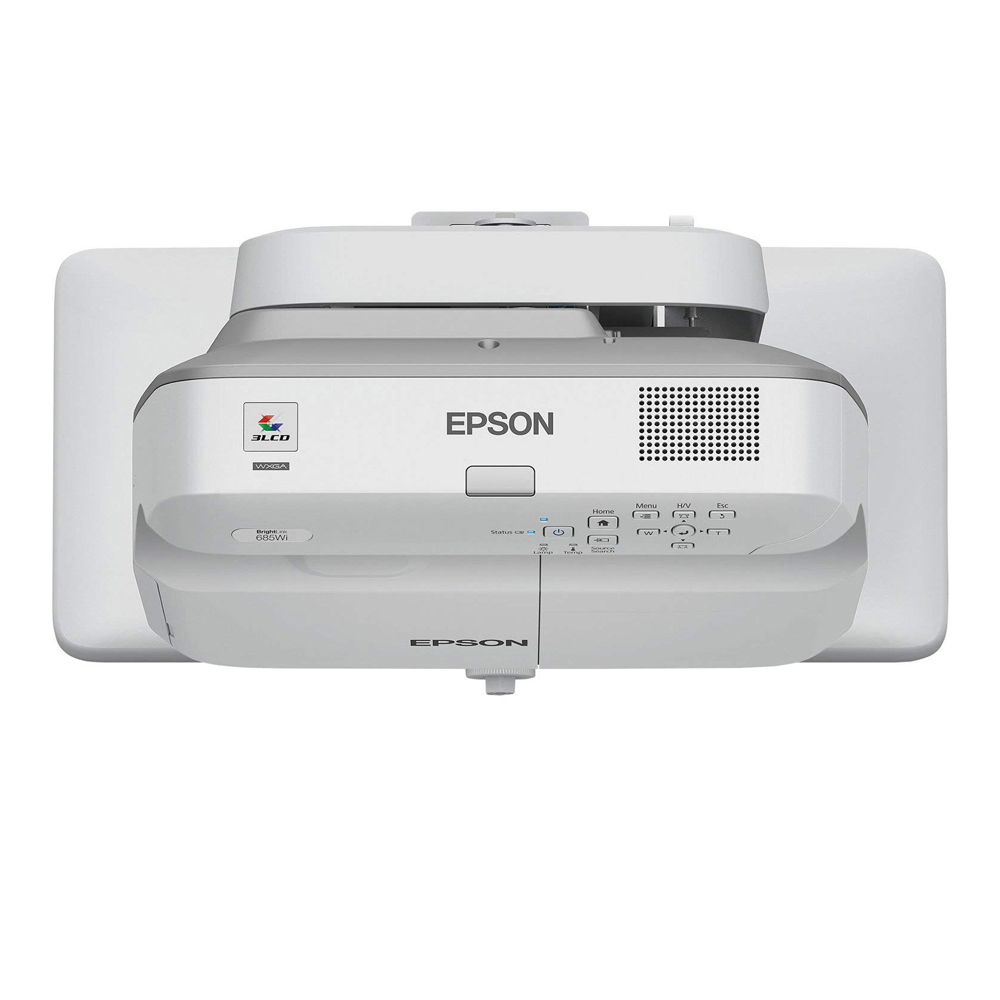

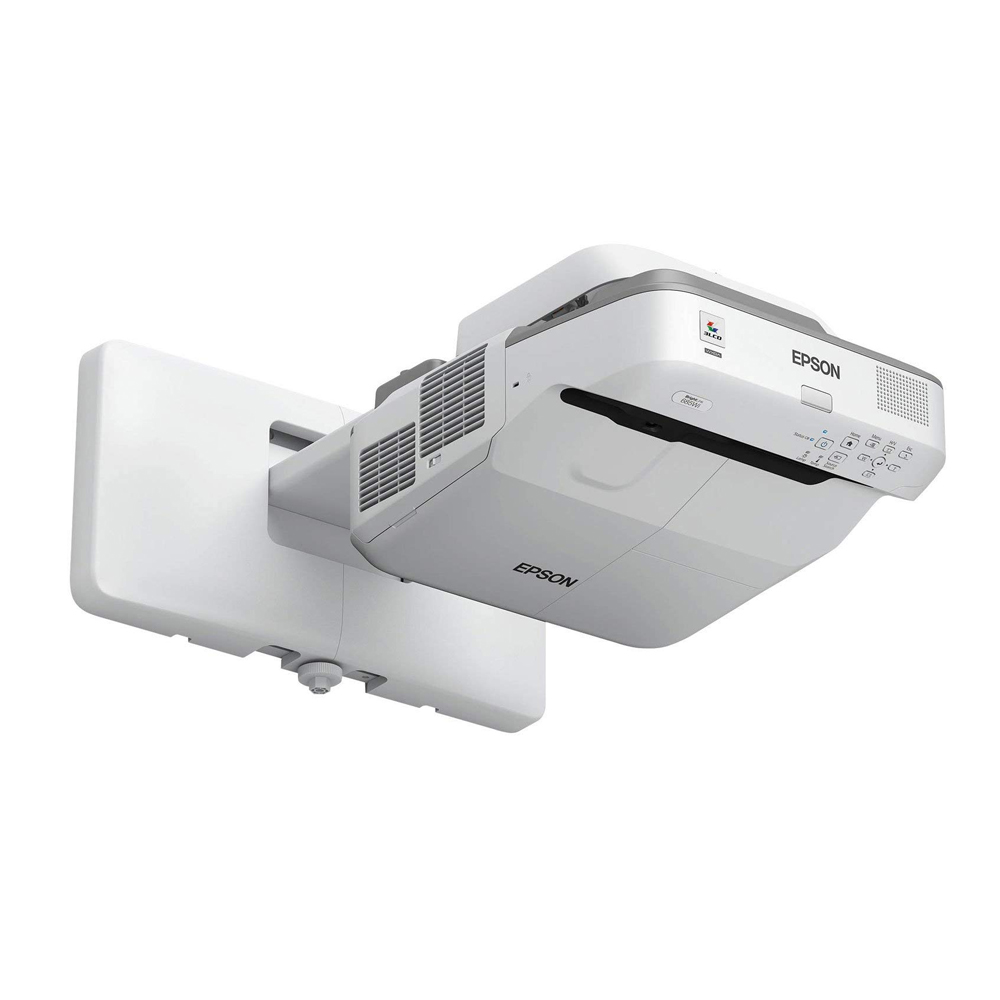

Epson EB-685wi HD Ready Pen Interactive Projector

The Epson BrightLink 685Wi is a 3LCD ultra‑short‑throw interactive projector that turns almost any wall or existing whiteboard into an interactive display. It’s ideal for education and collaborative environments thanks to its interactive pens, bright image quality, and flexible connectivity

• Interactive projection – Dual interactive pens allow up to two users to draw or write directly on the projection surface simultaneously.

•  Ultra‑short‑throw lens – Projects large images (up to ~100″) from a very short distance (≈28 cm), reducing shadows and glare.

• High brightness – 3,500 lumens of color and white brightness for clear, engaging visuals even in well‑lit rooms.

• WXGA resolution – Native 1280×800 (16:10) for widescreen content.

•  Multi‑device support – Teachers can share screen content from multiple student devices wirelessly (optional wireless module and software).

• Software support – Comes with Epson Easy Interactive Tools and iProjection app for easy annotation and device screen sharing.Specification

• Technology
  Projection System	3LCD Technology
  LCD Panel	0.59 inch with D9
  Color Light Output	3,500 Lumen- 2,900 Lumen (economy) In accordance with IDMS15.4
  White Light Output	3,500 Lumen – 2,900 Lumen (economy) In accordance with ISO 21118:2020
  Resolution	WXGA 2
  Resolution Enhancement	HD ready
  Aspect Ratio	16:10
  Contrast Ratio	14,000 : 1
  Light source	Lamp
  Lamp	250 W, 5,000 h durability, 10,000 h durability (economy mode), 9,000 h durability (economy mode)
  Keystone Correction	Manual vertical: ±3 °, Manual horizontal ±3 °
  Colour Video Processing	10 Bits
  2D Vertical Refresh Rate	100 Hz – 120 Hz
  Colour Reproduction	Upto 1.07 billion colours
  Optical
  Throw Ratio	0.28 – 0.37:1
  Zoom	Digital, Factor:1 – 1.35
  Lens	Optical
  Screen Size	60 inches – 100 inches
  Projection Distance Wide	0.4 m ( 60 inch screen ),
  Projection Distance Tele	0.6 m ( 100 inch screen ),
  Projection Lens F Number	1.6
  Projection Lens Focal Length	3.7 mm
  Projection Lens Focus	Manual
  Offset	6 : 1
  Connectivity
  USB Display Function	3 in 1: Image / Mouse / Sound
  Interfaces	USB 2.0-A, USB 2.0, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Jack plug out, Jack plug in (3x), Microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, MHL
  Epson iProjection App	Ad-Hoc / Infrastructure
  Advanced Features
  Security	Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
  2D Colour Modes	Dynamic, Cinema, Presentation, sRGB, Blackboard
  Other features	Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable
  Interactivity	No
  Video Color Modes	Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard
  Projector control	via: AMX, Crestron, Control4
  General
  Power consumption	301 Watt (Normal On-Mode), 258 Watt (Eco On-Mode), 354 Watt (Normal Peak-mode), 309 Watt (Eco Peak-Mode), 0.37 Watt (Energy saving standby)
  Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
  Product dimensions	367‎ x 400 x 149 mm (Width x Depth x Height)
  Product weight	5.7 kg
  Noise Level	Normal:35 dB (A) – Economy:30 dB (A) – Eco2:29 dB (A)
  Supported Temperature	Operation 5° C – 40° C, Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

  If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.Included SoftwareEasyMP Multi PC Projection, Epson Projector ManagementOptionsAir filter ELPAF38, Connection and control box, Document camera, External Speaker, USB extension cable, Wireless LAN unitCompatible Operating SystemsLinux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1Loudspeaker16 WattWhat’s in the boxInstallation/safety manual, Main unit, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Safety wire set, Template Sheet, Wall hanging bracketRoom Type / ApplicationMeeting room / ClassroomPositioningWall MountedColourWhite / Grey
