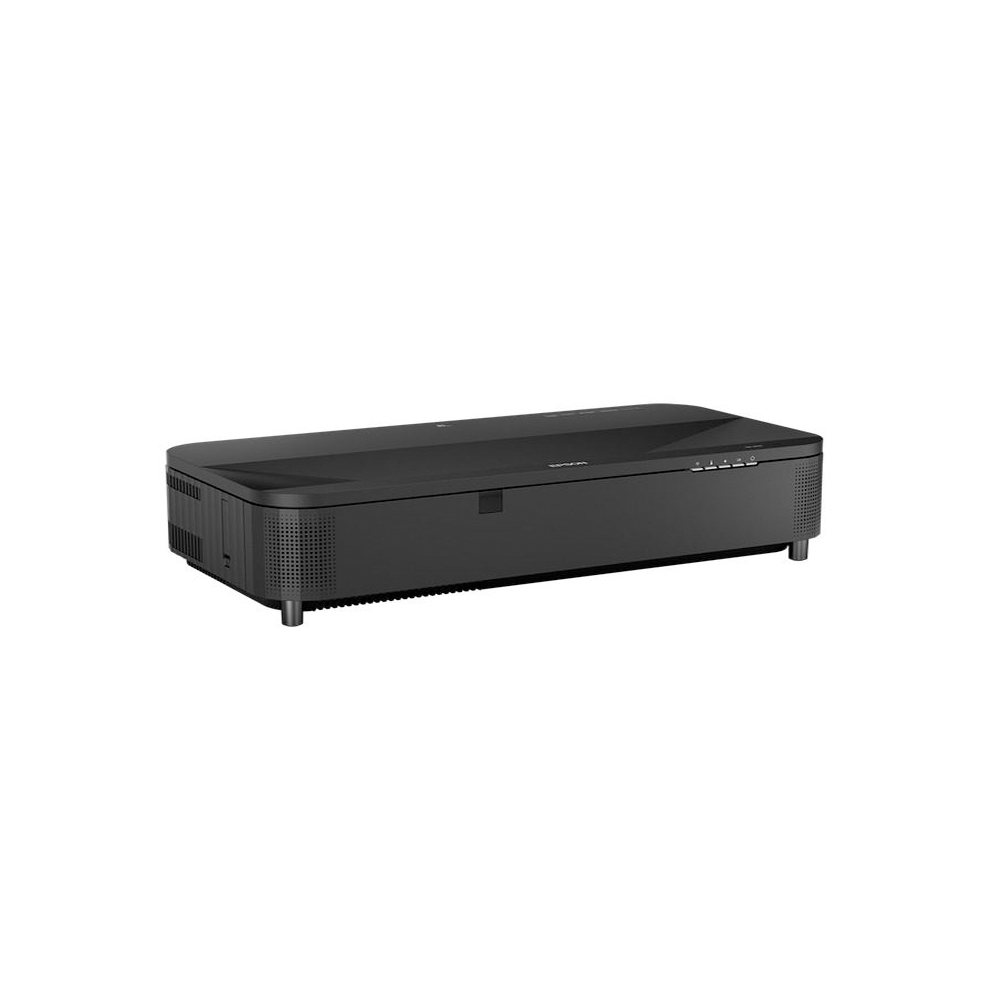

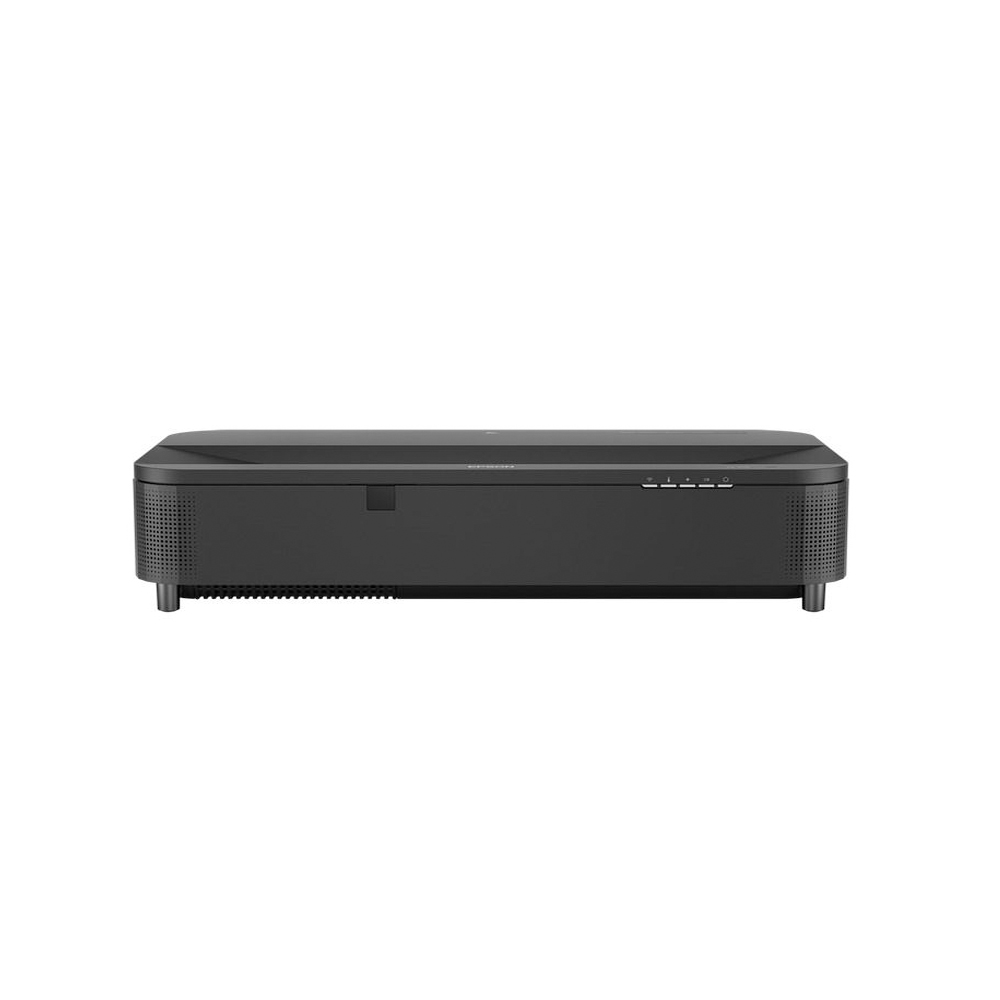

Epson EB-815E Super Ultra-Short-Throw Laser Projector

Technology
Projection system: 3LCD technology, RGB with liquid crystal shutter
LCD panel: 0.62 inches with C2 Fine

Color light output: 5,000 lumens – 3,500 lumens (economy) in accordance with the IDMS15.4 standard
White light output: 5,000 lumens – 3,500 lumens (economical) In accordance with ISO 21118:2020
Resolution: 1080p
High definition (HD): 4K technology
Image aspect ratio: 16:9
Contrast ratio: Over 2,500,000 : 1
Light psu: Laser
Light psu: 20,000 Hours Durability High, 30,000 Hours Durability Eco
Video editing: 10 bit
2D vertical refresh rate: 192 Hz – 240 Hz
HDR support: HDR10, HLG

Optics
Projection ratio: 0.16 – 0.40:1
Zoom: Digital, factor: 1 – 1.35
Lens: Optics
Projected image diagonal: 80 inches – 160 inches
Aperture number of the projection lens: 1.8
Focal length: 2.3 mm
Focus: Manual
Shift: 7 : 1

Control unit connection options

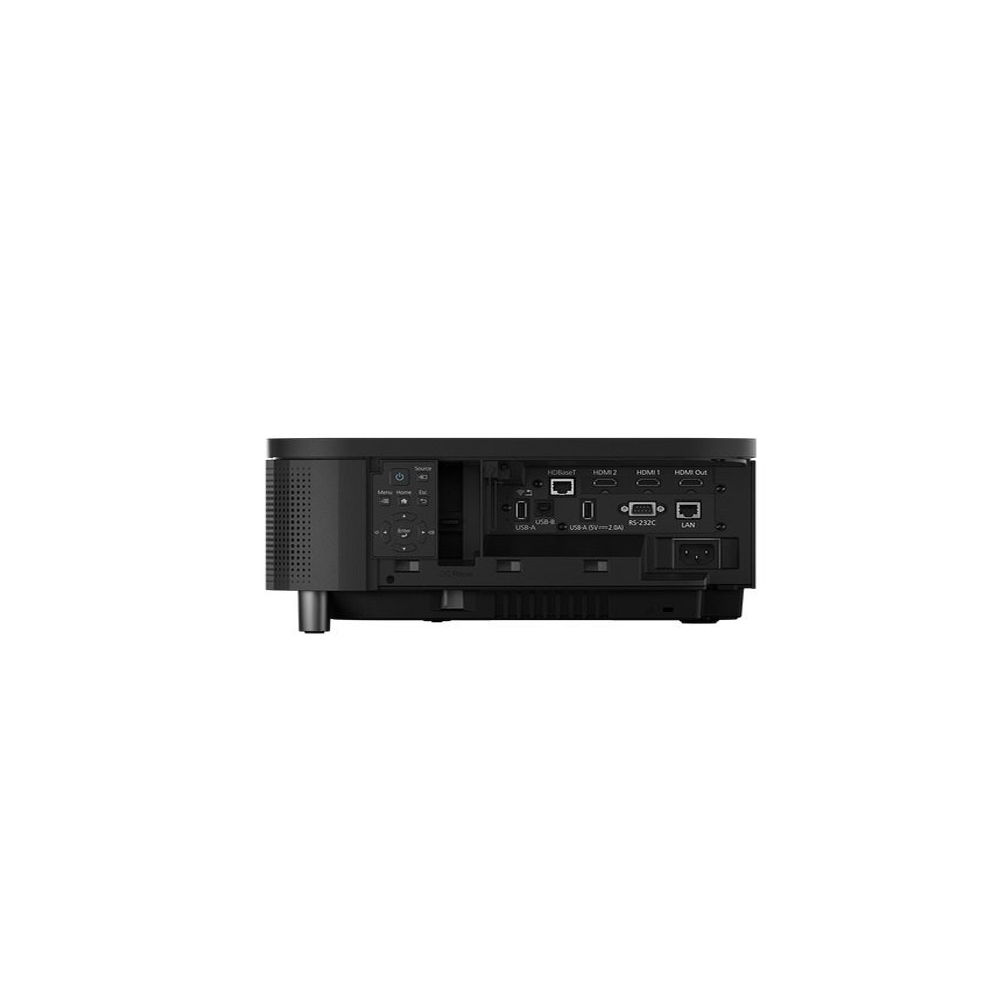

Interface: USB 2.0-A (2x), USB 2.0 type B (service only), RS-232C,
Ethernet interface (100 Base-TX/10 Base-T), wireless LAN IEEE
802.11a/b/g/n/ ac (WiFi 5), HDMI input (2x), HDMI output, HDBaseT,
Miracast
Smart device connection: Ad-hoc/infrastructure
Network protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced features
Security: Kensington lock, Control panel lock, Password protection,
Padlock slot, Wireless LAN unit lock, Wireless LAN security, Password
protection
3D: Well
2D color modes: dynamic, natural, cinema, presentation, whiteboard, DICOM SIM
Functions and features: 21:9 aspect ratio support, 4K technology, A/V
mute, Arc Correction technology, Automatic power on, Automatic psu
search, built-in speaker, CEC standard compatible, Customizable user
logo, Multiple projection in series connection, Digital zoom , direct on
and off function, compatible with visualizers, Edge Blending
technology, Email notification, adaptation of the image to the
projection surface, home screen, Horizontal and vertical correction of
keystone distortion, Image shift, JPEG viewer, Long life of the light
psu, without PC, Point correction, Power on button, Quick Corner,
Scheduling function, Mirror display, Source function, Split screen
function, Extra wide screen (16 : 6), Web control, Web remote control,
Wireless LAN compatible, iProjection application
Color modes: whiteboard, cinema, dynamic, natural, presentation, DICOM SIM, Multi Projection
Projector Control: via: AMX, Extron, Crestron Integrated Partner,
Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device
Discovery Protocol

General information
Power consumption: 290 W – On mode power consumption (Normal)
380 W (Peak), 286 W (Eco), 0.4 W (Energy saving standby)
Heat dissipation: 1,292 BTU/hour (max)
Power supply: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 695? x 341 x 156 mm (W x D x H)
Product weight: 12.5 kg
Max. noise level: Normal mode: 35 dB (A) – economy mode: 26 dB (A)
Temperature: storage -10°C – 60°C
air humidity: Operation 20% – 80%, storage 10% – 90%

Software included: Epson Creative Projection, EasyMP Multi PC
Projection, Epson Projector Content Manager Software, Epson Projector
Management, Epson Setting Assistant
Accessories: Air Filter, Ceiling
Mount, Connection and Control Unit, MB22 Ceiling Mount, Safety Cable
Kit, Visualizer Camera, WP System – ELPWP10, WP System – ELPWP20, Wall
Mount, Wireless Network Unit, Wireless Transmitter – ELPWT01
Scope of delivery: power cable, introductory manual, remote control incl. batteries
Room Type/Application: 4K Streaming, Meeting Room, Team Meeting
Space/Portable, Large Conference Room/Auditorium, Conference
Room/Classroom, Advertising/Retail, Visitor Attraction
Placement: Ceiling installation, Desktop, TV stand, Wall installation
Black colour
