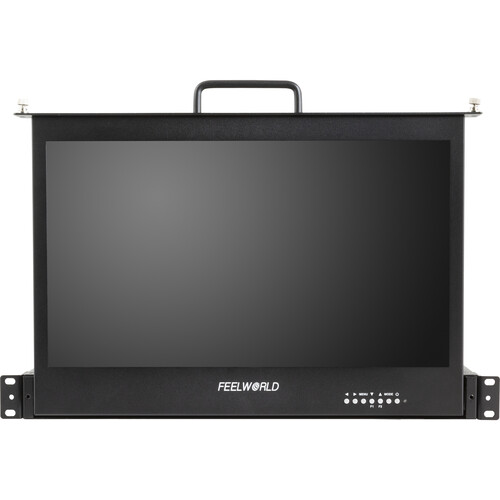

Name: FeelWorld SEETEC 17.3" Pullout HDMI/SDI Rackmount Monitor (1 RU)
SKU: SC173-HSD-56
Availability: InStock

Protected in a metal housing, the 1 RU SEETEC 17.3″ Pullout HDMI/SDI Rackmount Monitor from FeelWorld is a rack-mountable display that is easily integrated into any broadcast or live event production, where it may also be used as a standalone option.

The 17.3″ IPS panel has a native resolution of 1920 x 1080, providing crisp images and sharp color contrast, and the wide array of advanced monitoring tools include focus assist, image zoom, image freeze, check field, center marker, screen marker, image flip, and color temperature control. It has a 178° viewing angle and 300 cd/m² brightness. The HDMI input supports up to DCI 4K24 and UHD 4K30, and the SDI input with SDI loop-through output supports up to Full HD.

Key Features

Peaking focus assist (red highlight)
Check field (red, green, blue, mono)
Pixel-to-pixel center marker
Safe marker (80/85/90/93/96%, 2.35:1)
Image flip (horizontal, vertical)
Image freeze
Zoom (4x, 9x, 16x)
Scan mode (underscan, overscan)
Zoom all
U/D and L/R zoom
Monitoring via 3.5mm stereo headphone jack
Two adjustable function buttons
Top handle allows for portability

Specification

Display Size	17.3″ / 43.9 cm
Native Resolution	1920 x 1080
Touchscreen	No
HDR Support	No
Video I/O	1x HDMI Input 1x DVI-D Dual-Link Input 1x VGA Input 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output

Media/Memory Card Slot	No
Video Format	HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/24/23.98 576p 576i 480p 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i

Battery	No
Power Consumption	10 W

Display

Panel Type	LCD
Display Size	17.3″ / 43.9 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 89° Vertical: 89°
Touchscreen	No
Maximum Brightness	300 nits / cd/m²
Contrast Ratio	700:1
HDR Support	No
Image Controls	Check Field, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan

Inputs/Outputs

Video I/O	1x HDMI Input 1x DVI-D Dual-Link Input 1x VGA Input 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output
Audio I/O	1x RCA Input 1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel Input
Other I/O	1x Mini-USB 2.0 Input
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/24/23.98
576p
576i
480p
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i

Power

Input Power	7 to 24 VDC
Battery	No
Power Consumption	10 W

Mounting

Rack Form Factor

1 U

General

Environmental Resistance	No
Operating Conditions	22 to 82°F / -10 to 50°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Material of Construction	Metal
Dimensions	19.1 x 18.1 x 1.7″ / 485 x 461 x 43.5 mm
Weight	17.0 lb / 7.7 kg
