Name: FeelWorld T51 Triple 5" 2 RU 3G-SDI/HDMI Rackmount Monitor
SKU: T51
Availability: InStock

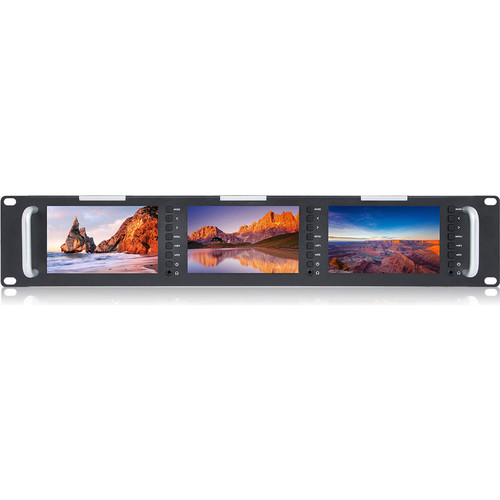

The FeelWorld T51 features three 5″ 800 x 480 resolution displays in a slim, all-metal 2 RU rackmount. The rear panel has three sets of 3G-SDI, HDMI, and composite BNC inputs and outputs, three sets of RCA audio inputs, and a single tally port. A three-color tally light is provided on top of each display on the front panel, and a headphone output is available per display for audio monitoring. For power, the T51 has both a DC barrel input and 4-pin XLR input, and a power adapter is included for the barrel input. Monitoring features include peaking, pixel-to-pixel, zoom all, and custom color temperature.

Key Features

Three 5″ displays in a slim, all-metal 2 RU rackmount with cast-iron handgrips
800 x 480 resolution
Three 3G-SDI inputs and outputs
Three HDMI inputs and outputs
Three composite BNC inputs and outputs
Three L/R RCA audio inputs
Tally port
Three headphone outputs
Three-color tally light on top of each display
500 cd/m² brightness
500:1 contrast
140/120° viewing angle
DC barrel and 4-pin XLR power inputs
DC power adapter included

Monitoring Features

Peaking focus assist
Check field (red, green, blue, mono)
Pixel-to-pixel
Center marker
Safe marker (80, 85, 90, 93, 96, 2.35:1)
Image flip (horizontal, vertical, horizontal/vertical)
Image freeze
Zoom all
U/D and L/R zoom
Custom color temperature

Specification

Display Size	5.0″ / 12.7 cm
Native Resolution	800 x 480
Touchscreen	No
HDR Support	No
Video I/O	3x BNC (3G-SDI) Input 3x HDMI Input 3x BNC (Composite) Input 3x BNC (3G-SDI) Output 3x HDMI Output 3x BNC (Composite) Output

Media/Memory Card Slot	No
Video Format	SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 576p 480p 576i 480i

Battery	No
Power Consumption	25 W (Maximum)

Display

Panel Type	TFT LCD
Display Size	5.0″ / 12.7 cm
Native Resolution	800 x 480
Aspect Ratio	16:9
Viewing Angle	Horizontal: 140° (70/7) Vertical: 120° (50/70)
Touchscreen	No
Maximum Brightness	500 nits / cd/m²
Contrast Ratio	500:1
HDR Support	No

Inputs/Outputs

Video I/O	3x BNC (3G-SDI) Input 3x HDMI Input 3x BNC (Composite) Input 3x BNC (3G-SDI) Output 3x HDMI Output 3x BNC (Composite) Output
Audio I/O	3x 2RCA Input 3x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (12 VDC / 3 A) Input 1x XLR 4-Pin (12 VDC / 3 A) Input
Other I/O	1x DE-15/DB-15 (Tally) 3x Mini-USB
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
576p
480p
576i
480i

Power

Input Power	9 to 24 VDC
Battery	No
Power Consumption	25 W (Maximum)

Mounting

Rack Form Factor

2 U

General

Operating Conditions	12 to 87°F / -20 to 55°C
Storage Conditions	-22 to 149°F / -30 to 65°C
Dimensions	19 x 3.5 x 1.3″ / 48.3 x 8.8 x 3.4 cm
Weight	3.46 lb / 1.57 kg
