Name: Viltrox DC-L1 7" HDMI On-Camera Touchscreen Monitor
SKU: DC-L1
Availability: InStock

The lightweight DC-L1 7″ HDMI On-Camera Touchscreen Monitor from Viltrox provides professional monitoring in a sharp 7″ display suitable for outdoor use with a 1280 x 800 resolution. The DC-L1 supports up to DCI/UHD 4K video input via mini-HDMI. It provides an HDMI loop-through output to send video to another monitor. Other features include custom 3D LUTs, L-series and USB power options, and multiple included accessories.

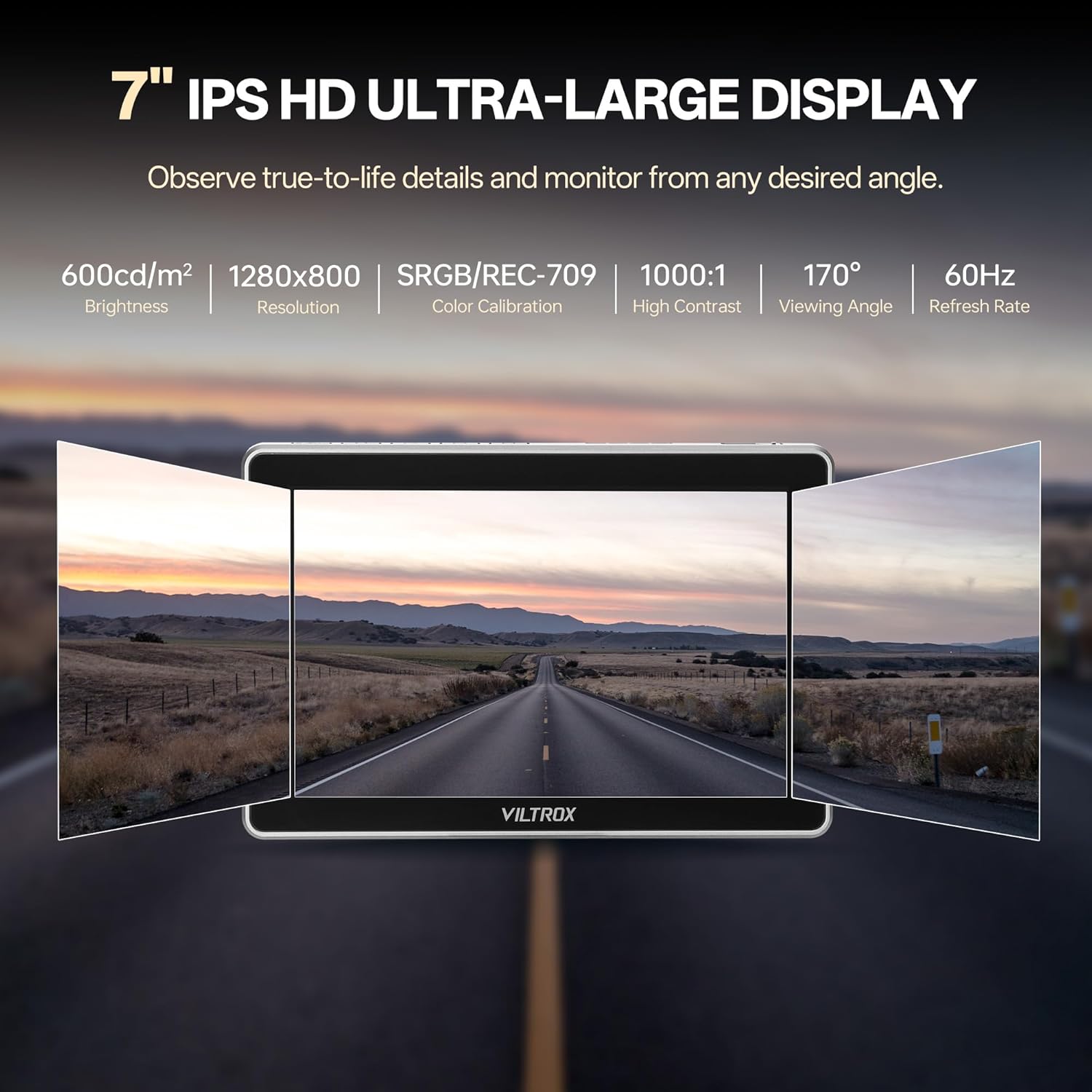

High-Resolution Display

Daylight-viewable 7″ on-camera LCD touchscreen monitor with a 1280 x 800 resolution that supports up to DCI/UHD 4K input via HDMI.

Input/Output

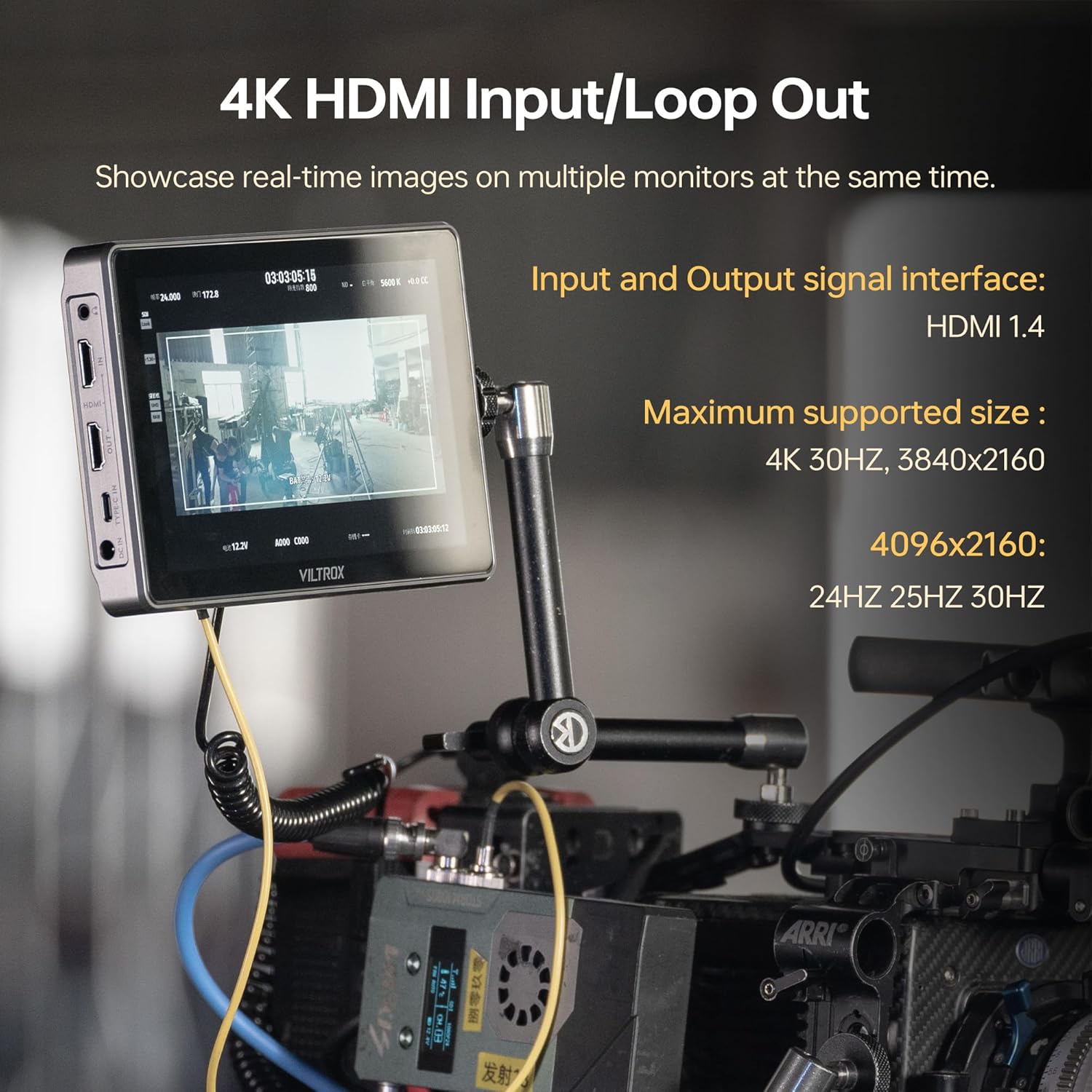

The monitor inputs up to DCI/UHD 4K60 video via HDMI and it can output using the HDMI loop output.

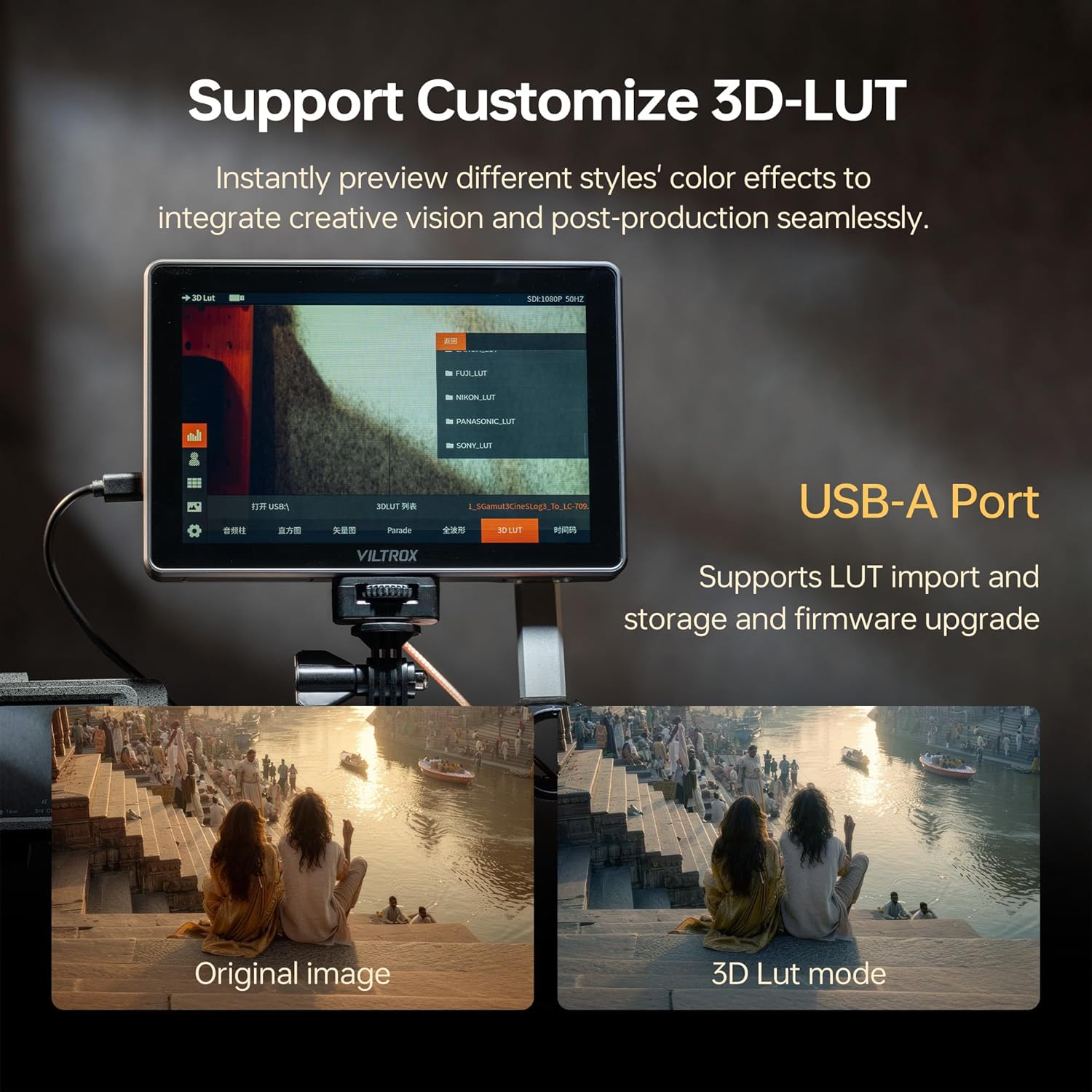

There’s also a USB port to import 3D LUTs and to update firmware. You can import up to 20 custom 3D LUT files.

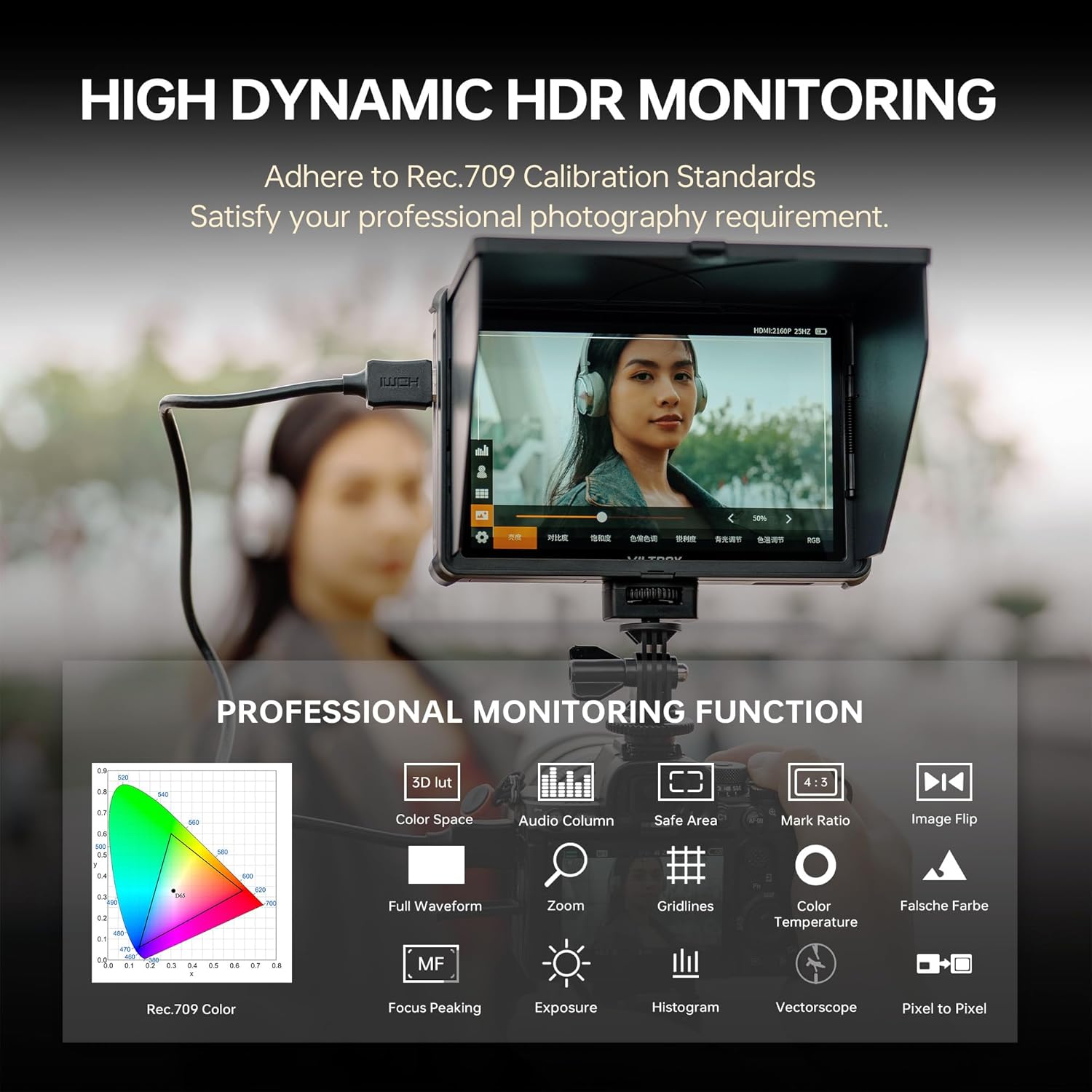

Image Tools

The monitor features numerous built-in image tools that assist in managing your image, including focus, brightness histogram, false color, screen focus, anamorphic de-squeeze, and more.

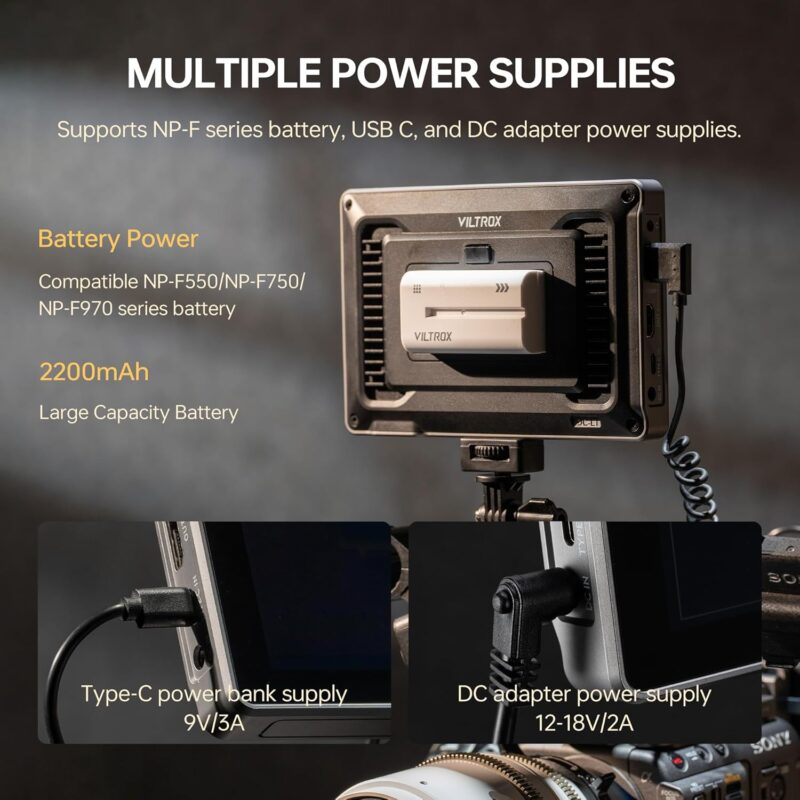

Power Options

The monitor powers using an L-series-type battery or via a separately available USB-C or DC barrel power supply.

Supported L-series battery types include NP-F550, F750, and F970.

Built-In Gyroscope

A built-in gyroscope provides auto-detection of whether your screen is flipped up or down, and it will flip the image accordingly, making switching camera positions easy.

Mounting Options

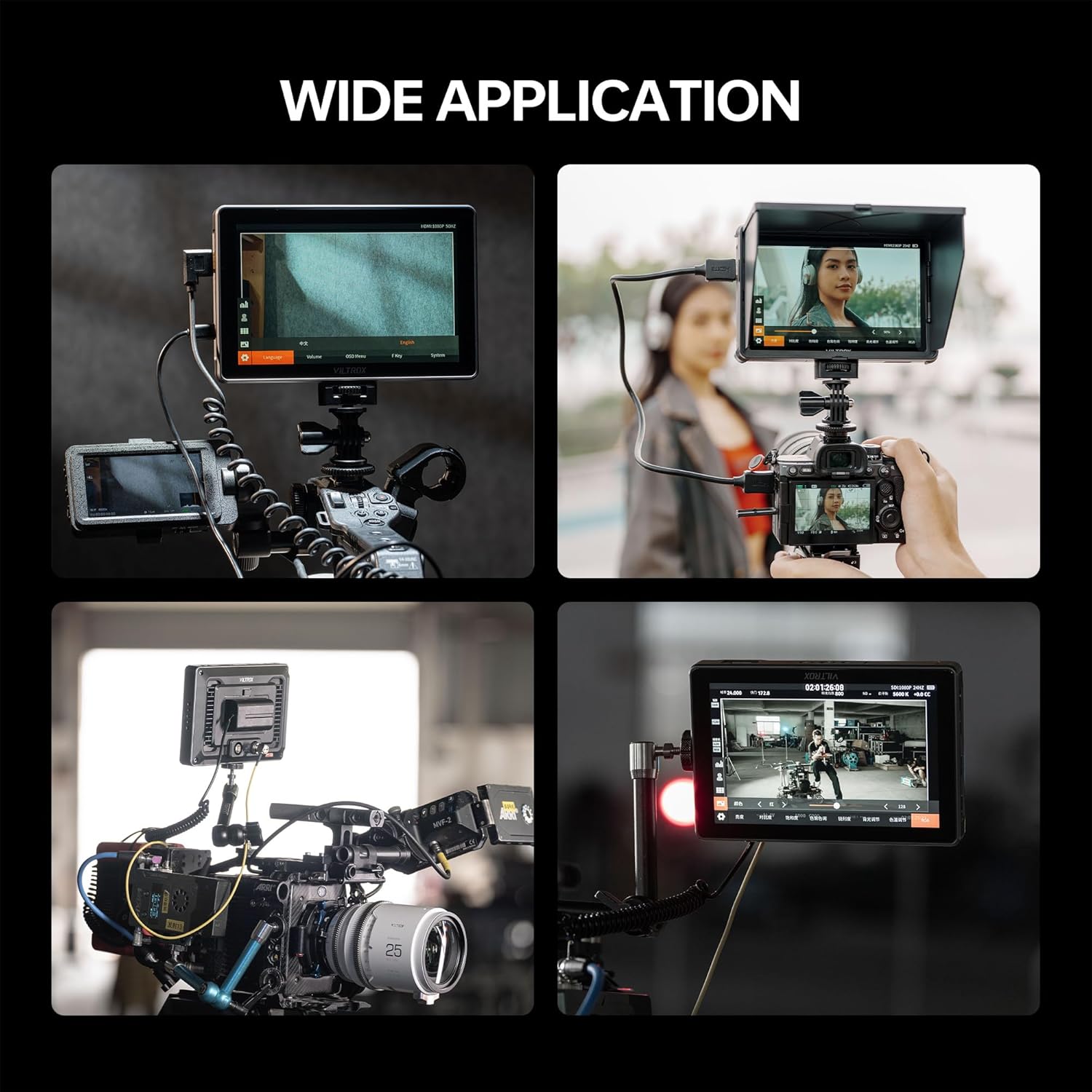

There are 1/4″-20 threads on one side and on the bottom that allow you to mount the monitor onto a cage, directly on a camera, or utilize various accessories such as the included shoe adapter mount or an optional magic arm or tilt mount.

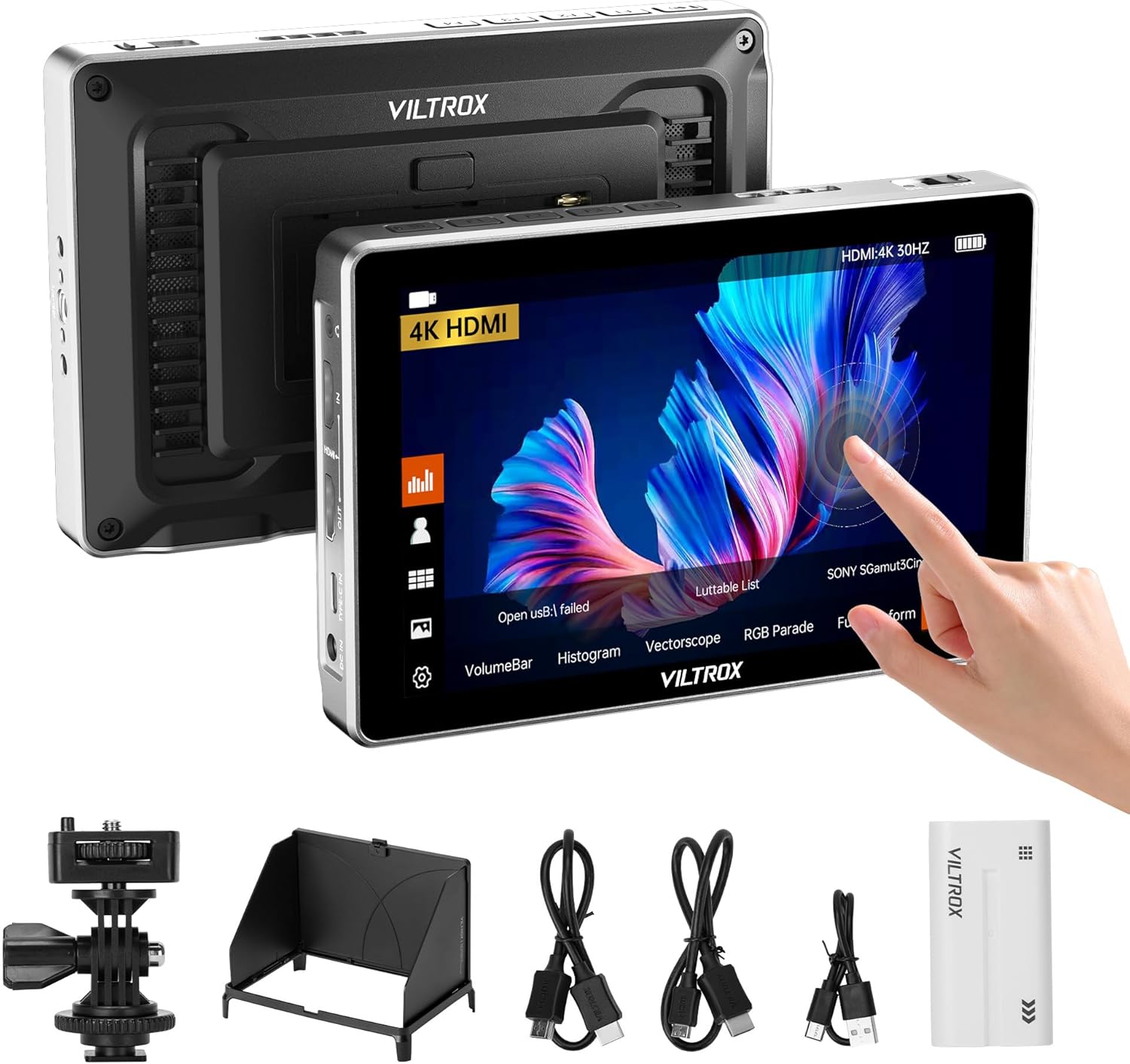

Accessories

Includes a sun hood, an L-series battery, a shoe adapter mount, a soft storage pouch, a screen protector, a USB-A to USB-C cable, an HDMI type A to HDMI type A cable, and an HDMI type A to mini-HDMI cable.

Specification

Display Size	7.0″ / 17.8 cm
Native Resolution	1280 x 800
Touchscreen	Yes
HDR Support	No
Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output
Media/Memory Card Slot	No
Video Format	HDMI DCI 4K UHD 4K 1080p 1080i 720p 576p 480p 576i 480i

Battery	1x L-Series Mount on Fixed Plate
Power Consumption	8 W

Display

Panel Type	IPS-Type LCD
Display Size	7.0″ / 17.8 cm
Native Resolution	1280 x 800
Aspect Ratio	16:10
Viewing Angle	170°
Touchscreen	Yes
Maximum Brightness	600 nits / cd/m²
Contrast Ratio	1000:1
Color Support	16.7 Million Colors (8-Bit)
HDR Support	No
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Histogram, Image Flip, Image Rotate, Overscan, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Inputs/Outputs

Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (2 A / 18 VDC) Input 1x USB-C (3 A / 20 VDC) Input
Other I/O	1x USB-A (Firmware/LUT Upload)
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
DCI 4K
UHD 4K
1080p
1080i
720p
576p
480p
576i
480i

Power

Input Power	10 to 18 VDC at 2 A 9 to 20 VDC at 3 A
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	8 W

Mounting

Tripod/Accessory Mounting

Bottom/Right
1x 1/4″-20 Female

General

Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Dimensions	7 x 4.7 x 1.1″ / 178.7 x 119.7 x 28 mm
Weight	12.9 oz / 367.00 g
