Name: Accsoon CineView Master 4K SDI/HDMI Wireless Video Transmission System
SKU: CVM4K
Availability: InStock

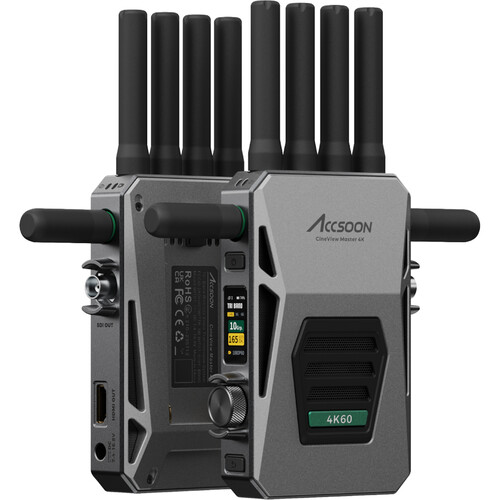

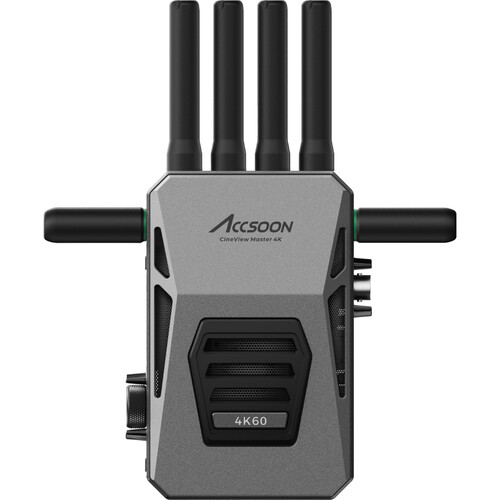

This CineView Master 4K SDI/HDMI Wireless Video Transmission System from Accsoon helps facilitate wireless UHD 4K video transmission with improved user interface and greater range than previous models. Send UHD 4K60 video up to 1.6 miles from the transmitter to the receiver unit with only a 35 ms delay. Wired connections on the receiver include 3G-SDI and HDMI output ports. Wired connections on the transmitter include 3G-SDI and HDMI input ports, HDMI loop output, and USB-C video output for your iOS devices.

Tri-Band Frequency Transmission

The CineView Master 4K boasts the RTMS 4.0 protocol, which integrates 2.4, 5, and 6 GHz frequencies. Intelligent dynamic adjustment of audio and video data goes across all three bands for faster connection times, lower latency, and easy management of multiple connections. With the new 6 GHz frequency, the CineView Master 4K unlocks 14 new channels and gigabit network speed.

Extended Long-Distance Transmission

Both receiver and transmitter units can communicate up to 1.6 miles away, thanks to their tri-band technology and hardware design.

Versatile Wired & Wireless Connections

The 3G-SDI and HDMI connections on the receiver can output video to a production monitor on set with stable, high-quality transmission for smooth on-site monitoring. Use the Accsoon SEE app to wirelessly monitor your system. The transmitter has a 3G-SDI input, HDMI input, and HDMI loop output port. A direct USB-C video output on the transmitter communicates directly with your iOS device. It can charge the connected device simultaneously and share your creations to Frame.io through Camera to Cloud integration.

New User Interface

An improved user interface makes for easy creative control over your stream, video settings, LUTs, WiFi, and other advanced settings using the SEE app.

8K Processor

A new high-performance A/V processor with 8K capabilities works in tandem with the RTMS 4.0 protocol for a 400% increase in processing capabilities over previous models. The system can easily create synchronized multi-video streams via tri-band technology.

Intelligent Heat Dissipation

Toggle between three different fan modes depending on the needs of your production. Standard mode allows for peak fan speeds for outdoor applications, quiet mode reduces the fan speed for studio setups, and off mode turns the fan off when you cannot risk the noise interfering with your production.

Multiple Power Options

Both units support power from both DC input and L-series batteries. There is also the option to add a separately available V-mount battery adapter.

Specification

Video I/O	Transmitter: 1x HDMI 2.0 Input Transmitter: 1x HDMI 2.0 Output Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x USB-C (Unspecified Signal) Output Receiver: 1x HDMI 2.0 Output Receiver: 1x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI
Wireless	Wi-Fi 6 (802.11ax) / 2.4 GHz Radio/RF / 5.8 GHz Radio/RF
Latency	35 ms
Video Format	HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/59.94/50 SDI 1080p: 60/50/30/25/24 1080i: 60/59.94/50
Battery	Transmitter/Receiver: 1x L-Series Mount on Fixed Plate

Inputs/Outputs

Video I/O	Transmitter: 1x HDMI 2.0 Input Transmitter: 1x HDMI 2.0 Output Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x USB-C (Unspecified Signal) Output Receiver: 1x HDMI 2.0 Output Receiver: 1x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI
Audio I/O	No
Power I/O	Transmitter/Receiver: 1x Barrel Input

Wireless

Wireless	Wi-Fi 6 (802.11ax) / 2.4 GHz Radio/RF / 5.8 GHz Radio/RF
Wireless Range	1.6 Miles / 2.5 km (Line-of-Sight)
# of Channels	20
Frequency Range	2412 to 2472 MHz 5180 to 5580 MHz 5660 to 5825 MHz
Latency	35 ms
RF Power	17 dBm
Wi-Fi	Wi-Fi 6 (802.11ax): Tri-Band (2.4 & 5 + 5 GHz)
Bluetooth	No
Mobile App Compatible	Yes: Android & iOS App Name: Accsoon SEE
Cellular Support	No

Format Support

Video Format	HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/59.94/50 SDI 1080p: 60/50/30/25/24 1080i: 60/59.94/50
Audio Format	Not Specified by Manufacturer
Timecode Support	No

Power

Input Power	7.4 to 16.8 VDC
Battery	Transmitter/Receiver: 1x L-Series Mount on Fixed Plate

Mounting

Tripod/Accessory Mounting

Transmitter/Receiver, Bottom
1x 1/4″-20 Female

General

Status Display	On Transmitter & Receiver
Environmental Resistance	No
Operating Conditions	14 to 104°F / -10 to 40°C
Dimensions	Transmitter/Receiver: 5.1 x 3.7 x 1.3″ / 130 x 95 x 32 mm (Excluding Antenna)
Weight	Transmitter: 11.4 oz / 322.00 g, Excluding Antenna Receiver: 11.3 oz / 320.00 g, Excluding Antenna
