Name: Blackmagic Design DeckLink Mini Recorder HD
SKU: BDLKMINIREC3G
Availability: InStock

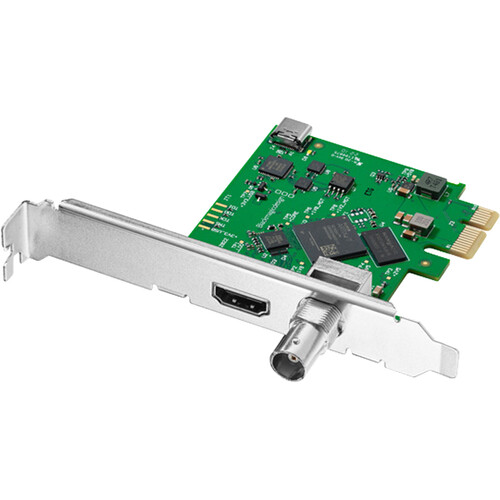

Record HD video over SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.

The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it’ll handle all common video formats as well as HDR.

PCIe Compatibility

PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)

Supported Software Applications

Wirecast
vMix
OBS
Cinergy Capture Pro
DevTek EasyMediaSuite
Glookast Capturer
Livestream Producer
Metus Ingest
Softron MovieRecorder
ToolsOnAir just:in
Burst Video WebClip2Go & [REC]Marker
Zoom

Supported Codecs

AVC-Intra
AVCHD
Canon XF MPEG2
Digital SLR
DV-NTSC
DV-PAL
DVCPRO50
DVCPROHD
DPX
HDV
HEVC
XDCAM EX
XDCAM HD
XDCAMHD422
DNxHR & DNxHD
AppleProRes 4444
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422LT
Apple ProRes 422 Proxy
Uncompressed 8-bit 4:2:2
Uncompressed 10-bit 4:2:2
Uncompressed 10-bit 4:4:4

Hardware Frame Buffer

v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)

Specification

System Connection	(Length Unspecified)
Video Inputs	1x BNC (3G-SDI) 1x HDMI (2.0)
Audio Inputs	No
Simultaneous Multi-Input Support	Not Specified by Manufacturer

Format Support

Input Video Format

SDI (8/10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
SDI (8/10-Bit 4:2:2 YUV)
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (8-Bit 4:4:4 RGB, YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (12-Bit 4:4:4 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Embedded Audio

SDI: 16-Channel
HDMI: 8-Channel

Standards

Video Standard Compliance	SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
HDR Support	Not Specified by Manufacturer

Hardware

OS Compatibility

macOS 11.1
macOS 12.0 or Later
Windows 10
Windows 11
Linux

Power

Power Consumption

Device: 3 W

Environmental

Operating Temperature	41 to 104°F / 5 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90% ()
Storage Humidity	0 to 90% (Non-Condensing)
