Name: Blackmagic Design HyperDeck Studio HD Plus
SKU: HYPERD/ST/DCHP
Availability: InStock

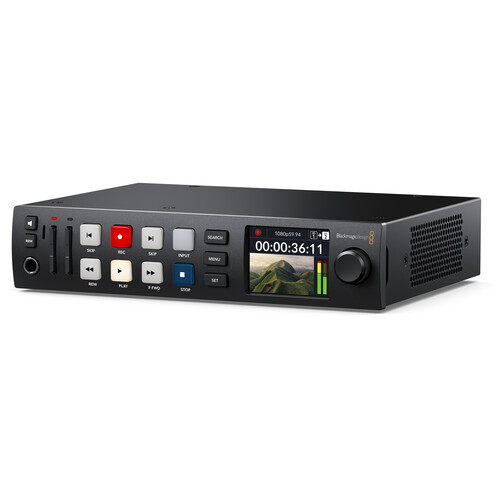

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Plus. The 1 RU tall recorder is 1/2 of a rack wide and powers from 100 to 240 VAC or via an optional 12 VDC power supply for portability. Featuring one 6G-SDI input, one HDMI 2.0 input, two 6G-SDI outputs, and one HDMI 2.0 output, this unit is a compact recording/playout powerhouse. A loop-through output and 3G-SDI monitor output as well as reference and timecode in/out, allow this device to fit into a broadcast environment.

Two SD card slots allow you to capture with virtually unlimited record time, and the unit also supports recording to USB disks via the USB-C output port. The HyperDeck Studio HD Plus features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.

UHD 4K Recording and Playback

The HyperDeck Studio HD Plus records UHD and DCI 4K video at up to 30 fps. The 6G-SDI outputs allow fill and key playback up to 1080p60

Video Inputs

6G-SDI and HDMI 2.0 inputs

Video Outputs

Two SDI outputs support 1080p60 and 2160p30, and a loop-through output sends the input signal downstream to monitors, switchers, or other devices

HDR

The HyperDeck Studio HD Plus supports HDR video and 33-point LUTS on the 3G-SDI output

Supported Codecs

ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime

DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps

H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60

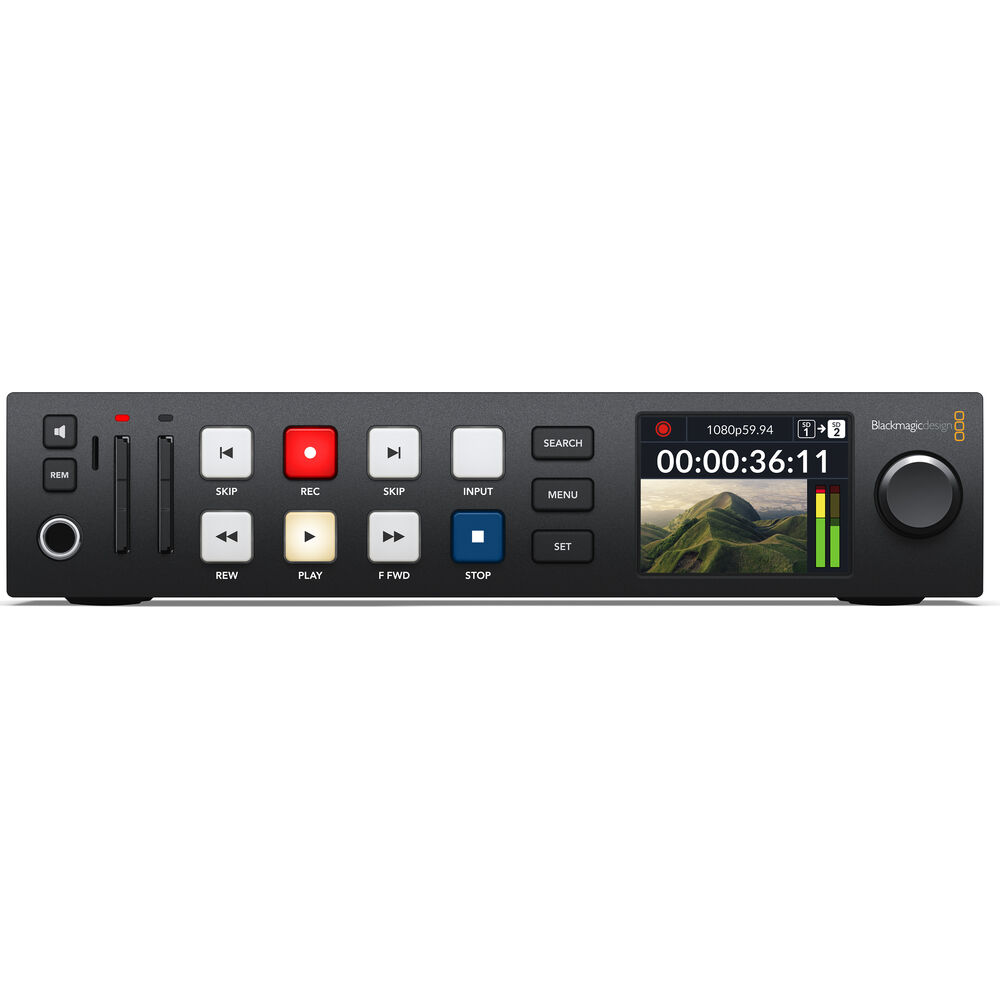

VTR-Style Controls

Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analog-style control over your playback. Broadcast-style deck control front-panel buttons connect to a dedicated RS-422 output.

Remote

The unit is controllable via RS-422 control and over the Ethernet or USB port

Built-In LCD Monitor

The unit’s front panel also features a built-in LCD screen that allows you to monitor input or play back video

Audio Output

The unit features a built-in speaker as well as a 1/4″ headphone jack

Included Software

The HyperDeck Studio HD Plus includes Blackmagic OS and Blackmagic HyperDeck Setup

Specification

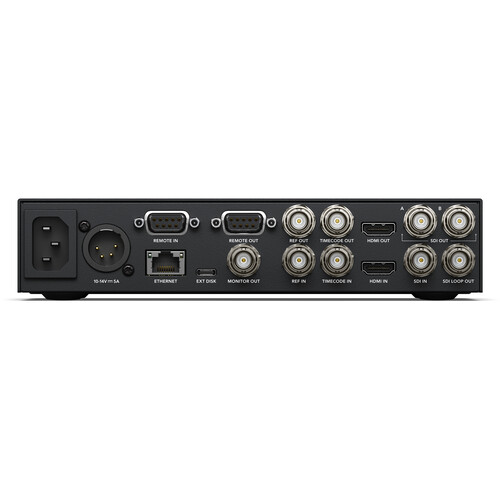

Connectivity

Video Inputs	1 x BNC, 6G-SDI 1 x HDMI 2.0 Type A
Video Output	1 x BNC, 6G-SDI Loop-Out 2 x BNC, 6G-SDI 1 x HDMI Type A, 2.0 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) 1 x BNC, 3G-SDI (Monitor Out)
Timecode	In: 1 x BNC Out: 1 x BNC
Reference	Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC
Audio Input	None (Embedded Audio Only, 16 Channels)
Audio Output	Headphone: 1 x 1/4″ Phone
Device Control	2 x RS-422 Deck Control Port on DB9 Female
Ethernet	1 x RJ45 for Remote Operation
Media Interface	2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+

Standards

Supported Resolutions	4K 4096 x 2160p: 30/29.97/25/24/23.98 3840 x 2160p: 30/29.97/25/24/23.98 2K 2048 x 1080p: 0/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL
SDI Compliance	SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1
SDI Metadata Support	HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI
Video Sampling	4:2:2 YUV
Color Depth	10-Bit
Color Space	Rec. 601 Rec. 709 Rec. 2020 33-Point 3D LUTS Can Be Applied to SDI Monitor Out
HDR Support	Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support	Autodetection of SD, HD, and 6G-SDI
Audio Sampling	Television Standard 48 kHz, 24-Bit
Supported Codecs	ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for Formats up to 1080p60 DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD Formats up to 60 fps H.264 SDI 4:2:2 10-Bit High 4:2:0 8-Bit Medium 4:2:0 8-Bit Low 4:2:0 8-Bit for Progressive Formats up to 1080p60

System Requirements

Operating System

macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later
Windows: 10 64-Bit

General

Rack Height	1 RU
Power Supply	AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x 4-Pin XLR Consumption 100 W Max
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Relative Humidity	0 to 90% Non-Condensing
Dimensions	8.27 x 6.96 x 1.74″ / 21.01 x 17.68 x 4.42 cm
Weight	1.8 lb / 0.82 kg
