Name: Canon RF EOS C80 6K Full-Frame Cinema Camera
SKU: 6389C002
Availability: InStock

The Canon EOS C80 video camera is designed to meet the demands of modern content creators and filmmakers. This compact, mirrorless camera captures stunning 6K30 full-frame footage, perfect for fast-paced environments and solo creators. Powered by a CMOS sensor, the Canon EOS C80 camera combines a lightweight design with professional-grade performance, making it an ideal choice for those seeking efficiency and reliability.

Equipped with upgraded Dual Pixel CMOS AF II, multiple ISO bases, and Canon’s RF-mount lenses, the Canon mirrorless camera delivers precise autofocus, ensuring crisp and clear imagery. You can use advanced Canon RF lenses to enhance your production value and achieve unparalleled visual quality.

This versatile camera supports dual video output with 12G-SDI and HDMI, providing flexibility for various shooting setups. Additionally, it features motorized ND filters, dual mini-XLR audio inputs for professional sound quality, and a tilting LCD screen for ease of use. With slow-motion capture capabilities and efficient codecs, the Canon EOS C80 video camera simplifies the process of creating, editing, and sharing your content.

Dual-Pixel CMOS Autofocus

The Canon EOS C80 camera features enhanced Dual-Pixel CMOS AF technology, utilizing each pixel on approximately 100% of the CMOS sensor for both focus detection and image information. This advanced autofocus system makes the Canon EOS C80 video camera perfect for capturing fast-moving subjects with precision. The back-illuminated, stacked sensor’s excellent light capture capabilities expand the sensor area available for autofocus, enhancing the performance of the Canon mirrorless camera in various lighting conditions.

Optional PL-RF Adapter

A new PL-RF lens mount adapter enables you to access a wide variety of ARRI PL-mount cine-style lenses.

This adapter features Cooke/i metadata compatibility and locking plates for a secure fit.

Compact Design with Tilting LCD

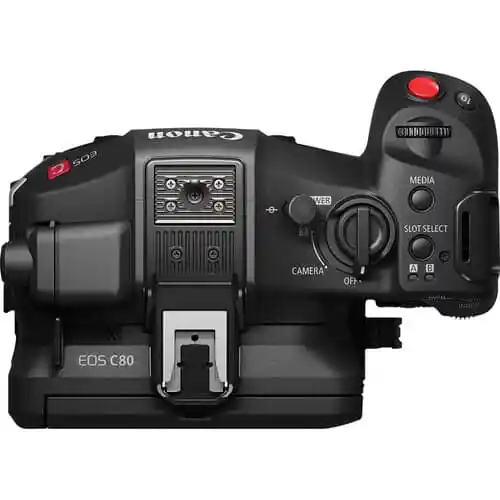

The Canon EOS C80 camera is designed for portability and ease of use, featuring a lightweight, compact body perfect for solo creators and fast-paced shoots. With an ergonomic grip and joystick control, the Canon EOS C80 video camera offers comfortable handling during extended shooting sessions. A Multi-Accessory hot shoe is conveniently placed on top, allowing you to attach accessories like lights or external microphones. The camera also comes with a detachable handle and mic holder for added versatility.

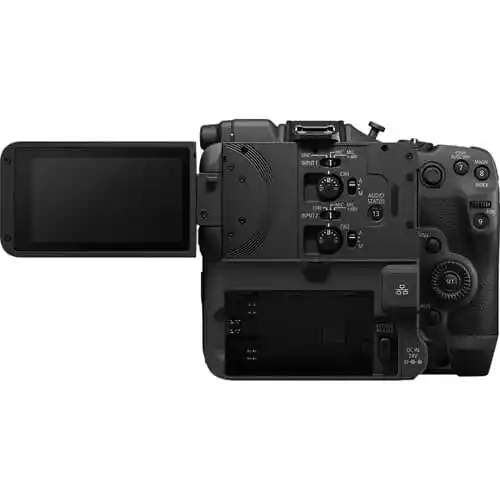

The tilting LCD screen, reinforced with a durable hinge, is equipped with built-in controls such as focus peaking, waveforms, and more, making the Canon mirrorless camera user-friendly and ideal for professional video production. This intuitive design ensures that the Canon EOS video camera is both practical and highly functional for content creators and filmmakers.

Built-In ND Filters

Designed for the EOS C80 RF mount’s short flange distance, a thin motorized ND filter unit enables users to quickly select up to 10 stops of neutral density.

ND button controls on the right side of the camera enable operators to quickly adjust exposure while maintaining their shot’s depth of field.

Ethernet and Wi-Fi Control

The Canon EOS C80 camera offers advanced connectivity with its Ethernet port and built-in Wi-Fi, enabling seamless remote control capabilities. By using an optional Canon RC-IP1000 or RC-IP100 unit, you can access XC protocol-based remote control, making the Canon EOS C80 video camera an ideal choice for multicamera productions and professional setups.

6K Full-Frame Sensor

The Canon EOS C80 camera features a 6K full-frame CMOS sensor that offers exceptionally low noise, increased sensitivity efficiency, and enhanced 4K imagery through 6K oversampling. Thanks to the improved light capture technology of the back-illuminated, stacked CMOS sensor, the Canon EOS C80 video camera delivers stunning performance even in challenging lighting conditions. This advanced sensor makes the Canon mirrorless camera a top choice for professional creators seeking high-quality video production.

Multiple Recording Formats

The Canon EOS C80 video camera supports multiple recording formats, including full-frame 6K30 Canon Cinema RAW Light LT and cropped Super 35 up to 4K30 in RAW ST and 4K60 in RAW LT. Oversampled 4K at 120p or 2K at 180p with maximized detail is available, all captured in 4:2:2 10-bit color. Capture slow and fast motion with ease at up to UHD 4K120 using HEVC and AVC codecs. Make the editing process smoother with XF-AVC S and XF-HEVC S codecs, which offer an improved naming system, folder structure, and metadata preservation, all within the MP4 format. The Canon EOS video camera makes high-quality production more accessible.

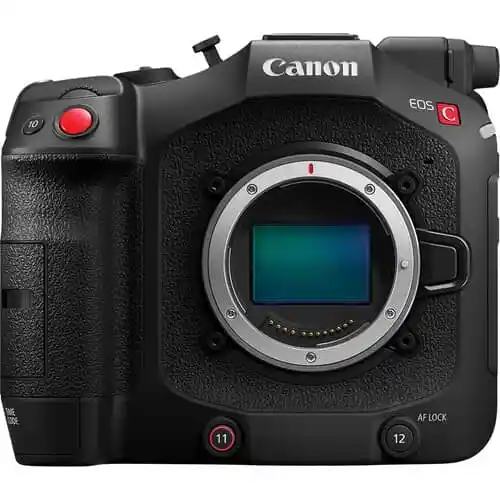

RF Lens Mount

The built-in RF lens mount gives the Canon EOS C80 camera full compatibility with Canon’s RF lenses, known for their fast performance, reliability, advanced coatings, and image stabilization. With a short flange distance, the RF mount helps reduce the camera’s overall body depth, making the Canon mirrorless camera more compact and easier to handle. The Canon EOS C80 video camera excels in both form and function, making it an excellent choice for professionals seeking flexibility and portability.

Multiple Interfaces Including 12G-SDI

The Canon EOS C80 video camera is equipped with versatile video outputs, including full-size HDMI and 12G-SDI BNC outputs, allowing simultaneous connection to an onboard monitor, video transmitter, or electronic viewfinder (EVF). These advanced interfaces make the Canon mirrorless camera perfect for professional video production setups. Additionally, the USB-C port enables UVC video output, allowing you to connect the Canon EOS C80 camera to a smartphone or a Canon GP-E2 GPS receiver for enhanced workflow. A BNC connector provides further flexibility, making the Canon EOS video camera a versatile tool for filmmakers and content creators.

Mini-XLR Audio Inputs

Two mini-XLR inputs with phantom power and manual control dials provide professional audio recording options.

The EOS C80 supports 4-channel audio using dual mini-XLR ports, an internal stereo mic, and a 3.5mm mic input.

Specification

Lens Mount	Canon RF
Image Sensor	Full-Frame
Effective Sensor Resolution	19.05 Megapixel (6008 x 3170)
Image Stabilization	Digital
ISO/Gain Sensitivity	Native: 100 to 102,400
Max Recording Modes	Cinema RAW Light 12-Bit Up to 6K at 24.00/25/29.97/23.98 fps XF-AVC S Intra 4:2:2 8/10-Bit Up to DCI 4K at 50/120/59.94 fps XF-AVC S Long GOP 4:2:0 8-Bit Up to DCI 4K at 50/120/59.94 fps XF-HEVC S Long GOP 4:2:2 10-Bit Up to DCI 4K at 50/120/59.94 fps XF-HEVC S Long GOP 4:2:0 10-Bit Up to DCI 4K at 50/120/59.94 fps XF-HEVC S Intra 4:2:0 8-Bit Up to DCI 2K at 24.00/25/29.97/50/59.94/23.98 fps XF-HEVC S Long GOP 4:2:0 10-Bit Up to DCI 2K at 24.00/25/29.97/50/59.94/60.00/23.98 fps XF-HEVC S Long GOP 4:2:0 8-Bit 720p at 24.00/25/50/59.94/23.98 fps
Max Video Output	via SDI/BNC / USB / HDMI DCI 4K
Media/Memory Card Slot	Slot 1: SD/SDHC/SDXC Slot 2: SD/SDHC/SDXC
Video I/O	HDMI / BNC
Mobile App Compatible	Yes: iOS Only Functionality: View Live Feed, Remote Control, Adjust Settings
Battery	Canon BP-AN Series

Imaging

Lens Mount	Canon RF
Lens Communication	Yes: Cooke /i
Image Sensor	Full-Frame BSI Stacked CMOS
Effective Sensor Resolution	Effective: 19.05 Megapixel (6008 x 3170) Actual: 26.67 Megapixel (6202 x 4300)
Image Stabilization	Digital, 5-Axis
Built-In ND Filter	Mechanical Filter Wheel with 6-Stop (1/64), 2-Stop (1/4), 4-Stop (1/16), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
Internal Filter Holder	No
Capture Type	Stills & Video

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/2000 to 1 Second
Shutter Angle	11.25 to 360°
ISO/Gain Sensitivity	Native: 100 to 102,400
Advertised Dynamic Range	16 Stops
White Balance	Range: 2000 to 15,000K Presets: Set B, Tungsten, Set A, Daylight, AWB

Focus

Focus Mode

Continuous-Servo AF, One-Shot AF, Manual Focus, Focus Lock AF Area Mode

Video Capture

Internal Recording	Cinema RAW Light 12-Bit 6000 x 3164 at 24.00/25/29.97/23.98 fps (553 to 639 Mb/s) 4368 x 2304 at 23.98/50/24.00/25/29.97/59.94 fps (293 to 678 Mb/s) XF-AVC S Intra 4:2:2 8/10-Bit 4096 x 2160 at 50/120/59.94 fps (150 to 600 Mb/s) 3840 x 2160 at 23.98/120/50/24.00/25/29.97/59.94 fps (150 to 500 Mb/s) 2048 x 1080 at 23.98/120/180/50/24.00/25/29.97/59.94 fps (35 to 300 Mb/s) 1920 x 1080 at 23.98/120/180/50/24.00/25/29.97/59.94 fps (35 to 300 Mb/s) XF-AVC S Long GOP 4:2:0 8-Bit 4096 x 2160 at 50/120/59.94 fps (150 Mb/s) 3840 x 2160 at 23.98/120/24.00/25/29.97 fps (100 Mb/s) 2048 x 1080 at 23.98/180/50/24.00/25/29.97/59.94 fps (35 Mb/s) 1920 x 1080 at 23.98/180/50/24.00/25/29.97/59.94 fps (35 Mb/s) XF-HEVC S Long GOP 4:2:2 10-Bit 4096 x 2160 at 50/120/59.94 fps (225 Mb/s) 3840 x 2160 at 23.98/120/24.00/25/29.97 fps (135 Mb/s) 2048 x 1080 at 23.98/180/50/24.00/25/29.97/59.94/30.00 fps (50 Mb/s) 1920 x 1080 at 23.98/180/50/24.00/25/29.97/59.94/30.00 fps (50 Mb/s) XF-HEVC S Long GOP 4:2:0 10-Bit 4096 x 2160 at 50/120/59.94 fps (150 Mb/s) 3840 x 2160 at 23.98/120/24.00/25/29.97 fps (100 Mb/s) 2048 x 1080 at 23.98/180/50/24.00/25/29.97/59.94 fps (35 Mb/s) 1920 x 1080 at 23.98/180/24.00/25/29.97/59.94 fps (35 Mb/s) XF-HEVC S Intra 4:2:0 8-Bit 2048 x 1080 at 24.00/25/29.97/50/59.94/23.98 fps (9 to 16 Mb/s) 1920 x 1080 at 23.98/50/24.00/25/29.97/59.94/60.00 fps (9 to 16 Mb/s) 1280 x 720 at 23.98/50/24.00/25/29.97/59.94 fps (6 Mb/s) Sensor Crops During Recording XF-HEVC S Long GOP 4:2:0 10-Bit* 2048 x 1080 at 24.00/25/29.97/50/59.94/60.00/23.98 fps (9 to 16 Mb/s) 1920 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps (9 to 16 Mb/s) XF-HEVC S Long GOP 4:2:0 8-Bit 1280 x 720 at 24.00/25/50/59.94/23.98 fps (6 Mb/s)
Video Output	via SDI/BNC / USB / HDMI 4096 x 2160
Fast-/Slow-Motion Support	Yes
Gamma Curve	Canon Log 2, Canon Log 3, Rec2020, HDR-HLG, Rec709
Built-In Microphone	Stereo
Audio Recording	Cinema RAW Light: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S, XF-HEVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S, XF-HEVC S: 2-Channel, 16-Bit at 48 kHz via AAC Audio
IP Streaming	H.264, RTSP, UDP, RTP, SRT, MPEG2 1920 x 1080 at 50p, 59.94p, 59.94i, 50i (4.0 to 9.0 Mb/s)

Interface

Media/Memory Card Slot	Slot 1: SD/SDHC/SDXC Slot 2: SD/SDHC/SDXC
Internal Storage	No
Video I/O	1x BNC (12G-SDI) Output 1x HDMI Output
Audio I/O	2x Mini XLR Input 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output
Power I/O	1x Barrel (23.7 to 25VDC) Input
Other I/O	1x RJ45 (XC) Control 1x USB-C Monitor 1x BNC (Timecode) (Shared with Video Output) 1x 2.5 mm Sub-Mini (LANC) Control
Wireless	Wi-Fi 5 (802.11ac)
Mobile App Compatible	Yes: iOS Only App Name: Remote Camera Control App Functionality: View Live Feed, Remote Control, Adjust Settings
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

Display Type	Primary Monitor: Included External 3.5″ Touchscreen LCD
Resolution	Primary Monitor: 1280 x 720

Power

Battery	Canon BP-AN Series
Power Consumption	≤19.6 W

Environmental

Operating Conditions	32 to 104°F / 0 to 40°C up to 85% Humidity
Storage Conditions	23 to 113°F / -5 to 45°C up to 60% Humidity

General

Shoe Mount	1x Intelligent Hot Shoe

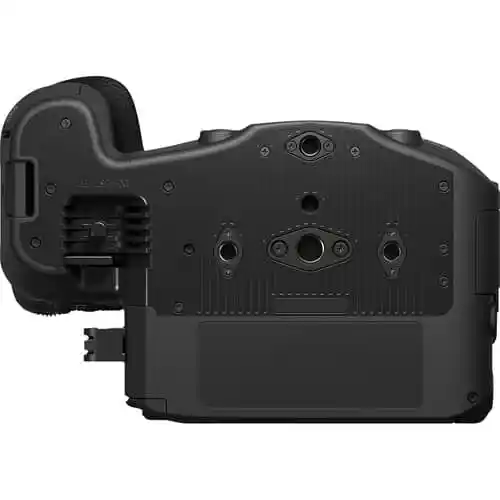

Tripod Mount	1x 3/8″-16 Female 2x 1/4″-20 Female
Netflix Approved	Yes
Dimensions (W x H x D)	6.3 x 5.4 x 4.6″ / 160 x 138 x 116 mm 10.9 x 6.8 x 6.3″ / 276 x 173 x 160 mm (With Included Battery, Handle, Mic Holder)
Weight	2.87 lb / 1.30 kg (Body Only) 3.406 lb / 1.545 kg (With Handle, Battery)
