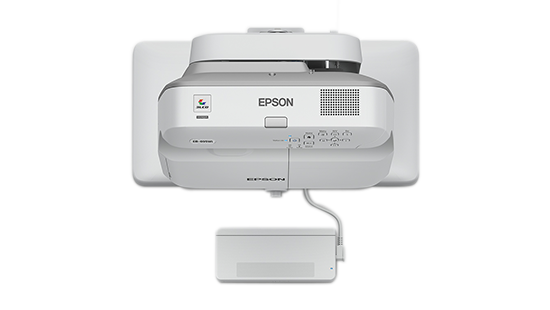

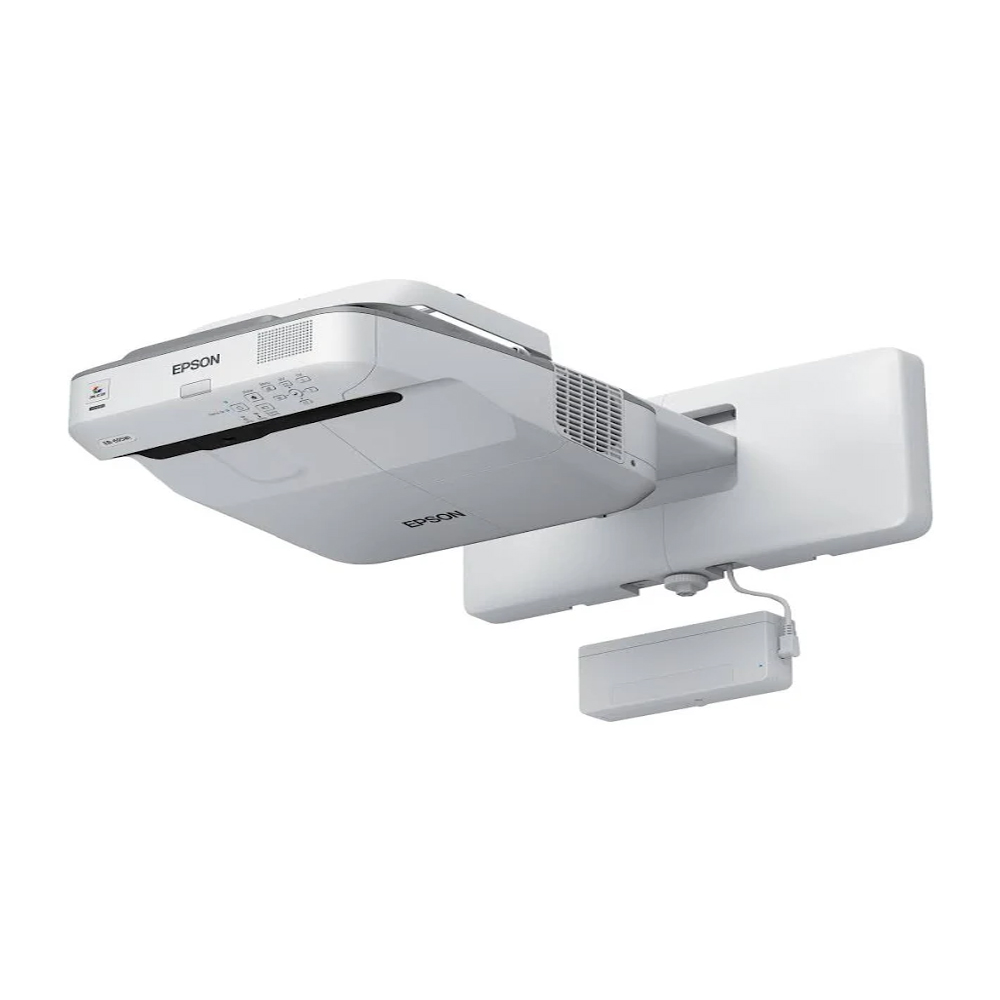

Name: Epson EB-695WI 3500 Lumens Interactive HD Ready WXGA Projector
SKU: EB-695Wi
Availability: InStock

The Epson EB‑695Wi is a high‑performance interactive ultra‑short‑throw projector designed for classrooms, meeting rooms, training spaces, and interactive presentation environments. It replaces traditional interactive whiteboards by projecting large, touch‑enabled images from a very short distance while keeping installation and operation simple.

Interactive Projection: Combines finger‑touch control with dual interactive pens, allowing multiple users to write, draw, or control content directly on the projected image without needing a computer connected.
Ultra‑Short Throw Design: Can project large images up to ~100 inches diagonally from very close to the wall (throw ratio ~0.28–0.37), helping minimize shadows and glare during use.
Bright & Clear Images: Uses Epson’s 3LCD technology with 3,500 ANSI lumens of colour and white brightness to deliver vivid visuals even in well‑lit rooms.
📊 WXGA Resolution: Native 1280 × 800 (16:10) widescreen resolution—great for displaying presentations, documents, and multimedia content sharply and clearly.
Multi‑User Interactivity: Supports up to 6 simultaneous finger touches plus 2 pens at once, enabling collaborative work by multiple students or team members.
Split‑Screen & Multi‑PC Support: Allows sharing content from multiple sources simultaneously, and can be combined with other projectors for a larger interactive display.
Optional Wireless Display: With Epson’s iProjection app and accessories, you can wirelessly stream from laptops, tablets, or Chromebooks.
Long Lamp Life: Lamp can last up to 10,000 hours in eco mode, lowering maintenance and replacement costs over time.

Ideal for:

Classrooms and lecture halls (collaborative learning)
Corporate training rooms and meeting spaces
Libraries and breakout areas
Interactive presentations and group brainstorming sessions

Technology
Projection System	3LCD Technology
LCD Panel	0,59 inch with D9
Color Light Output	3.500 Lumen- 2.900 Lumen (economy) In accordance with IDMS15.4
White Light Output	3.500 Lumen – 2.900 Lumen (economy) In accordance with ISO 21118:2020
Resolution	WXGA 2
High Definition	HD ready
Aspect Ratio	16:10
Contrast Ratio	14.000 : 1
Light source	Lamp
Lamp	250 W, 5.000 h durability, 10.000 h durability (economy mode), 9.000 h durability (economy mode)
Keystone Correction	Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing	10 Bits
2D Vertical Refresh Rate	100 Hz – 120 Hz
Colour Reproduction	Upto 1.07 billion colours
Optical
Throw Ratio	0,28 – 0,37:1
Zoom	Digital, Factor: 1 – 1,35
Lens	Optical
Screen Size	60 inches – 100 inches
Projection Distance Wide	0,4 m ( 60 inch screen
Projection Distance Tele	0,6 m ( 100 inch screen
Projection Lens F Number	1,6
Projection Lens Focal Length	3,7 mm
Projection Lens Focus	Manual
Offset	6 : 1
Connectivity
USB Display Function	3 in 1: Image / Mouse / Sound
Interfaces	USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, HDMI in (3x), Composite in, RGB in (2x), RGB out, MHL, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out
Epson iProjection App	Ad-Hoc / Infrastructure
Advanced Features
Security	Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Colour Modes	Dynamic, Cinema, Presentation, sRGB, Blackboard
Other features	AV Mute Slide, Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Interactive, Long lamp life, MHL audio/video interface, Microphone input, Multi-screen interactivity, PC Interactive, Split-Screen-Function
Interactivity	Yes – pen and finger-touch
Video Color Modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Projector control	via: AMX, Crestron, Control4
General
Power consumption	301 Watt (Normal On-Mode), 258 Watt (Eco On-Mode), 354 Watt (Normal Peak-mode), 309 Watt (Eco Peak-Mode), 0,37 Watt (Energy saving standby)
Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions	367‎ x 400 x 149 mm (Width x Depth x Height)
Product weight	5,8 kg
Noise Level	Normal: 35 dB (A) – Economy: 30 dB (A) – Eco2: 29 dB (A)
Supported Temperature	Operation 5° C – 40° C, Storage -10° C – 60.000° C
Supported Humidity	Operation 20% – 80%, Storage 10% – 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management
Options	Air filter ELPAF38, Connection and control box, Document camera, External Speaker, Pen tip(Felt), Pen tip(Teflon), Wireless LAN unit
Compatible Operating Systems	Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Loudspeaker	16 Watt
What’s in the box	CD Manual, Finger touch unit, Interactive pens, Main unit, Pen tray, Power cable, Quick Start Guide, Remote control incl. batteries, Safety Cable, USB cable, User Manual (CD-ROM), Wall hanging bracket, Warranty card
Room Type / Application	Meeting room / Classroom
Positioning	Wall Mounted
Colour	White / Grey
