Name: FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
SKU: F7PLUS
Availability: InStock

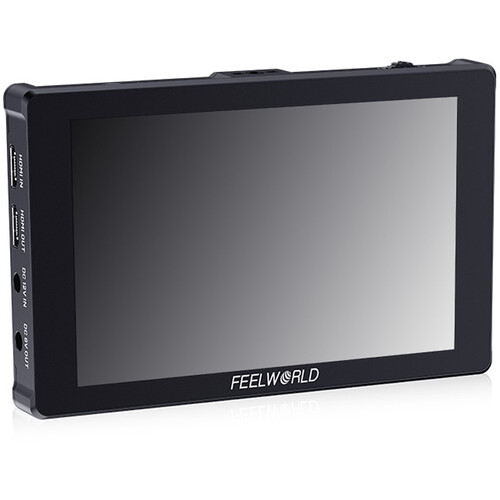

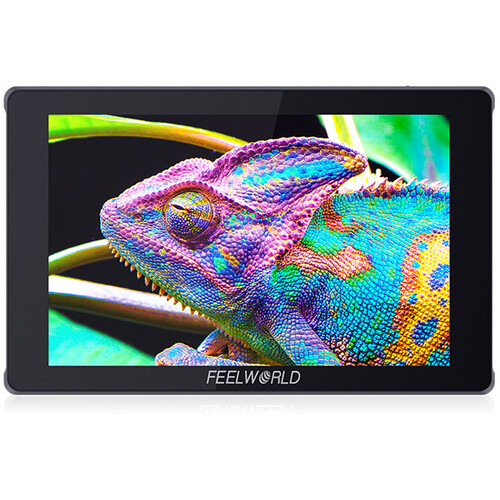

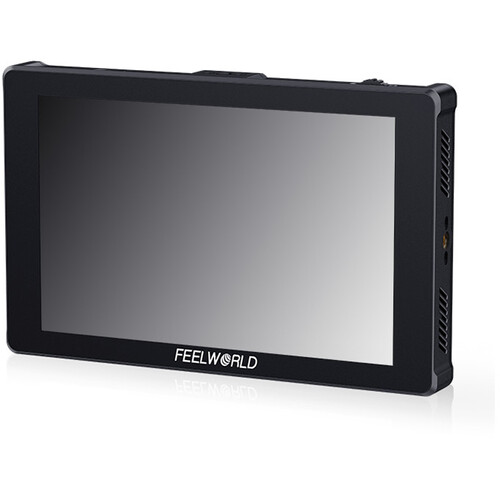

Monitor up to UHD 4K video with the F7 Plus 7″ Touchscreen HDMI Field Monitor from Feelworld. Compact in design, this 7″ display fits on top of your camera or handheld rig to provide crisp video monitoring with a 1920 x 1200 resolution. It features HDMI input and output that supports up to DCI/UHD 4K resolutions.

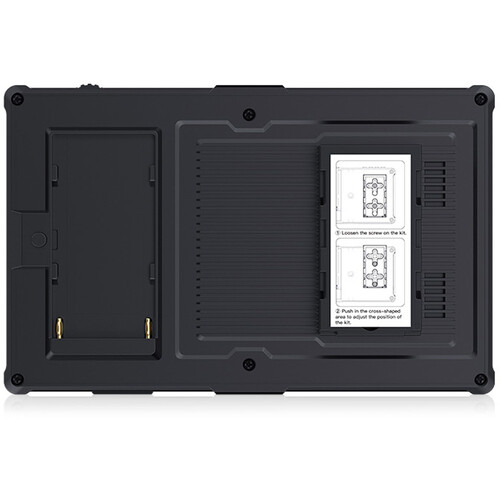

The monitor features an L-series battery plate on the back, and it can also be powered via USB-C or DC barrel inputs. There is also a DC barrel output to power your camera or accessories, and a mounting block on the back makes it easy to connect a wireless receiver to the back. There are numerous built-in image tools to ensure accuracy, such as vectorscope, histogram, and RGB parade.

Quick Features

7″ touchscreen display
1920 x 1200 resolution
HDMI 2.0 input and output up to DCI/UHD 4K resolutions
HDR support
3.5mm headphone jack
5V USB-C and 12V 2.1mm barrel power inputs
8V 2.1mm barrel power output
Rear L-series battery plate
Accessory installation block on the back
Support for 11 languages
1/4″-20 mounting thread
SD card slot for loading 3D LUTs

Monitoring Tools

Histogram
Vectorscope
Waveform
Audio level meters
Focus peaking
False color
Overscan/underscan
Anamorphic de-squeeze
Image flip
Nine grid
Image freeze
1:1 pixel mapping
Frame markers
Focus assist
Check field
Exposure/zebra

Specification

Display Size	7.0″ / 17.8 cm
Native Resolution	1920 x 1200
Touchscreen	Yes
HDR Support	Yes: Hybrid Log Gamma
Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Media/Memory Card Slot	Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only]
Video Format	HDMI DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	15 W

Display

Panel Type	IPS-Type LCD
Display Size	7.0″ / 17.8 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 160° (80/80) Vertical: 160° (80/80)
Touchscreen	Yes
Maximum Brightness	1200 nits / cd/m²
Contrast Ratio	1200:1
Color Support	16.7 Million Colors (8-Bit)
HDR Support	Yes: Hybrid Log Gamma
Color Gamut	100% Rec. 709
Image Controls	Anamorphic De-Squeeze, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Vectorscope, Waveform

Inputs/Outputs

Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel 5.5 mm (12 VDC) Input 1x USB-C (5 VDC / 2 A) Input 1x Barrel 5.5 mm (8 VDC) Output
Other I/O	No
Media/Memory Card Slot	Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only]

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i

Power

Input Power	7 to 24 VDC
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	15 W

Mounting

Tripod/Accessory Mounting

Top/Bottom/Right
1x Anti-Twist 1/4″-20 Female

General

Operating Conditions	-4 to 122°F / -20 to 50°C
Storage Conditions	-22 to 140°F / -30 to 60°C
Dimensions	7.3 x 4.6 x 0.8″ / 186 x 117 x 21 mm
Weight	20.9 lb / 9.5 kg
