Name: Hollyland Mars M1 Enhanced 5.5" Wireless Transceiver Monitor
SKU: Hollyland Mars M1
Availability: InStock

Key Features

Wirelessly Monitor Video from up to 450′
Transmitter & Receiver Mode Switching
New Capsule Antennas & Record/Playback
5.5″ Touchscreen 1920 x 1080 Display
1080p SDI Input; Up to 4K30 via HDMI
Presets & USB-C 3D LUT Import
High 1000 cd/m² Brightness
Low 0.08s Latency, Smart Channel Scan
DC Power Input & Output
Built-In L-Series Battery Plate

Hollyland Mars M1 OverView

Transmit, receive, and monitor high-quality wireless video transmissions using this compact Mars M1 Enhanced 5.5″ Wireless Transceiver Monitor from Hollyland. The Mars M1 Enhanced provides new features, including a record/playback review feature that can review up to 2 minutes of video for instant review, and it features a new low-profile capsule antenna design. As with the original M1, it features a 5.5″ touchscreen display that provides a sharp resolution and 1000 cd/m² brightness for follow focus and director’s monitoring applications. Its built-in wireless transmitter and receiver allow you to send and receive video between M1 units as well as to/from the Mars 400S Pro, Mars 300 Pro, and Mars 4K wireless transmitters/receivers at a distance of up to 450′. You can also monitor video from the M1 Enhanced on smartphones and tablets running the companion HollyView app.

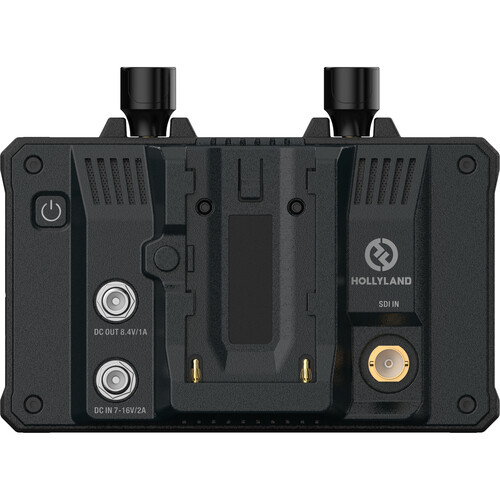

The monitor supports up to DCI/UHD 4K30 video input via its HDMI input, and it features an HDMI loop output and a 1080p SDI input that supports multiple broadcast drop-frame frame rates. Multiple imaging tools are available using the built-in HollyOS firmware, including scopes, peaking, and storage of 3D LUTs on the monitor. It can be powered using its built-in L-series battery plate or via its DC input. It also features a DC power output, so you can power your camera or other gear.

Display with Professional Color Calibration

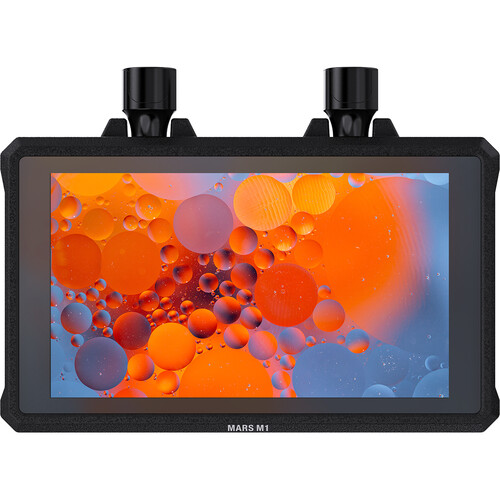

The Mars M1 Enhanced is designed with a 5.5″ 1920 x 1080 resolution touch LCD screen with 1000 cd/m² brightness. Professional color calibration is performed during manufacturing, and multiple-level color temperature adjustments are available. The screen supports the Rec. 709 color gamut for excellent color rendition, 16:9 aspect ratio, and 16.7M natural colors.

Compatibility

The Mars M1 Enhanced is an all-in-one transmitter, receiver, and monitor solution that M1 can be used either as a transmitter or a receiver. As well as transmitting between two M1 units, the M1 can also transmit and receive from all Mars 300 Pro, Mars 400S Pro, and all Mars 4K models, as well as to smartphones and tablets with the HollyView app.

Input/Output

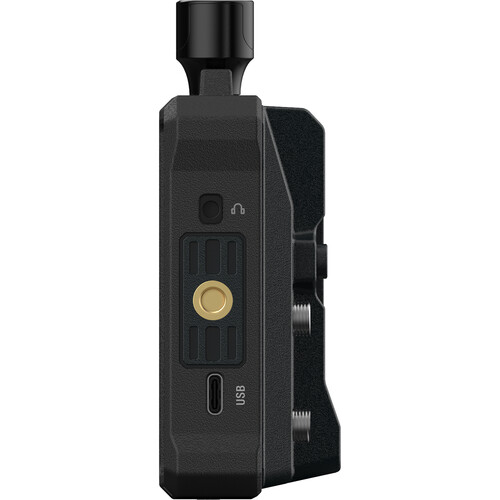

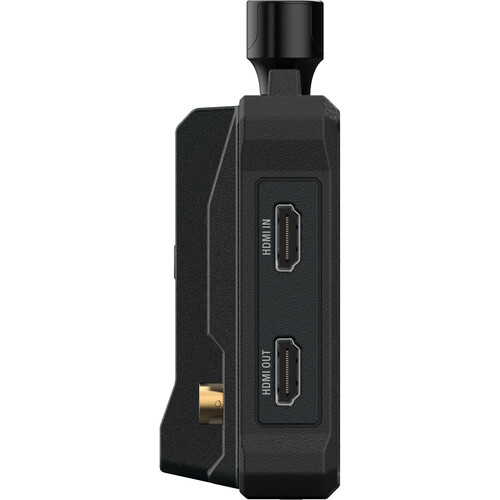

The Mars M1 Enhanced features HDMI input and HDMI loop output, one 3G-SDI input, as well as a 3.5mm headphone output.

Wirelessly Transmit and Receive Video

The Mars M1 Enhanced supports up to DCI/UHD 4K30 HDMI input and output for expanded connectivity and compatibility. The SDI input supports up to 1080p input and provides expanded frame rate flexibility for both broadcast and production frame rate standards and compatibility through production and post-production.

Trigger Recording and Video Playback

The Mars M1 Enhanced is engineered for automatic trigger recording and video playback. Replay your video wherever and whenever you want to ensure it is captured at its finest quality. The video recording function supports up to two minutes of recording time.

Display Size	5.5″ / 14.0 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	No
Video I/O	1x HDMI (Unspecified Signal) Input 1x BNC (3G-SDI) Input 1x HDMI (Unspecified Signal) Loop Output
Video Format	HDMI DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Battery Type	1x L-Series
Mounting	1x 1/4″-20 Female (Right) 1x 1/4″-20 Female (Bottom)

3D LUT File Import

Selectable 3D LUT presets are available to map the colors to the monitor for a consistent, high-quality effect. You can also load your own custom LUTs.

Smart Channel Scan

Smart Channel Scan enables you to find the interference-free option for a stable connection experience. The optimum channel is selected automatically upon startup.

Wireless Range

Transmission distance up to 450′.
