Laowa Aurogon FF 10-50x NA0.5 Supermicro APO Lens (Sony E

  • Medium Format | NA0.5 to NA0.15
  • 10-50x Supermicro APO Lens System
  • Objective Lens, Four Magnification Tubes
  • Fixed 0.79″ Focus Distance
  • Unclicked Manual Aperture Ring
  • Apochromatic Elements
  • Aluminum Carrying Case

Free

Shipping anywhere in UAE

100%

Guaranteed Satisfaction

12 - 48 Hrs

Delivery anywhere in UAE

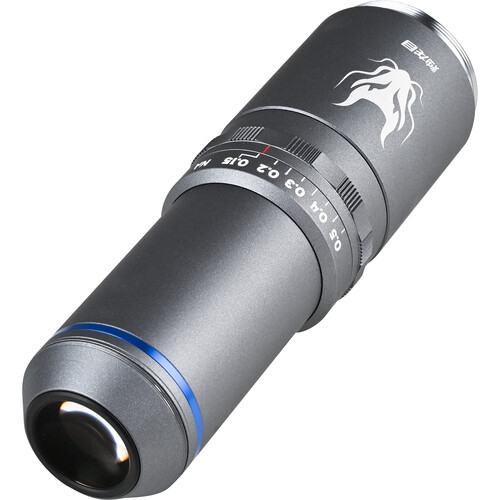

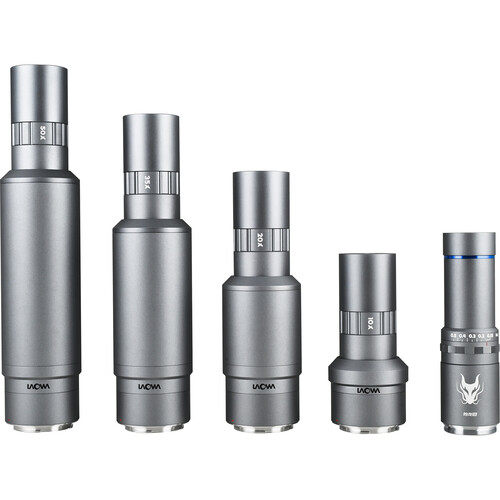

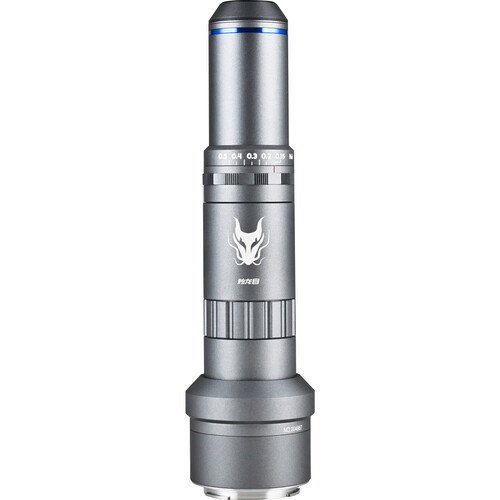

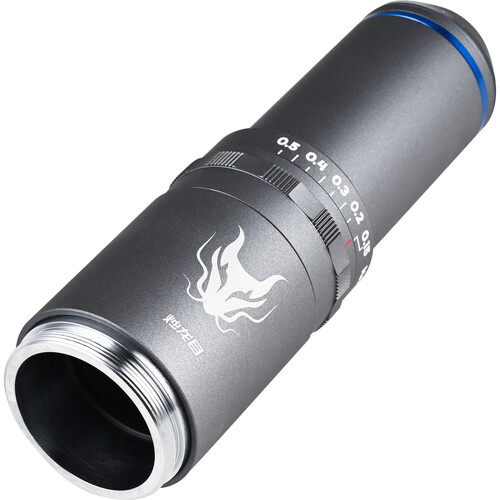

The Laowa Aurogon FF 10-50x NA0.5 Supermicro APO for Sony E from Venus Optics is a microphotography lens system that can be directly used on cameras without the need to use microscope adapters. It features four seamlessly interchangeable magnification tubes, offering 10x, 20x, 35x, and 50x magnification options. The adjustable numerical aperture (NA) of this microscope lens ranges from 0.5 to 0.1, the high NA providing room for exceptional brightness and minimal diffraction. The lens is designed with a fixed 0.79″ long working distance, ensuring both flexibility and convenience for the lighting setup, and you can easily change magnification without having to reset focus and lighting for stable microscopic shooting setups.

The apochromatic lens design minimizes chromatic aberrations in all magnification ratio for outstanding resolution. The eight grades of Numerical Aperture (NA) values from 0.5 to 0.15 indicated on the objective lens addresses the depth of field for microscopic shooting. The wide NA provided combined with ample lighting ensures that when capturing images, a lower ISO value can be used, resulting in a higher resolution image. The Laowa Aurogon is suitable for use in both still and video applications.

Objective Lens plus Magnification Tube Equivalent Focal Length
  • 10x: 18.8mm
  • 20x: 10.3mm
  • 35x: 6.85mm
  • 50x: 5.56mm
Maximum Distortion
  • 10x: 0.60%
  • 20x: 0.80%
  • 35x: 0.40%
  • 50x: 0.40%
Image Field Diameter
  • 10x: Column 2 Value 15
  • 20x: Column 3 Value 15
  • 35x: Column 4 Value 15
  • 50x: Column 5 Value 15
Conjugate Distance
  • 10x: 11.8″
  • 20x: 14.6″
  • 35x: 16.5″
  • 50x: 18.3″
Component Lengths
  • Objective Lens Only: 6.6″
  • 10x Magnification Tube: 4.4″
  • 20x Magnification Tube: 6.4″
  • 35x Magnification Tube: 8.3″
  • 50x Magnification Tube: 9.9″
Component Weights
  • Objective Lens Only: 13.8 oz
  • 10x tube: 13.3 oz
  • 20x tube: 15.7 oz
  • 35x tube: 1.17 lb
  • 50x tube: 1.34 lb

Specification

Focal Length
5.56 to 18.5mm
Aperture
Maximum: NA0.5
Minimum: NA0.15
Lens Mount
Sony E
Lens Format Coverage
Full-Frame
Minimum Focus Distance
0.8″ / 20 mm
Magnification
50:1 Macro Reproduction Ratio
10 to 50x Magnification
Aperture/Iris Blades
9
Focus Type
Manual Focus
Image Stabilization
No
Packaging Info
Package Weight
14.575 lb
Box Dimensions (LxWxH)
22.8 x 16.2 x 7.6″
