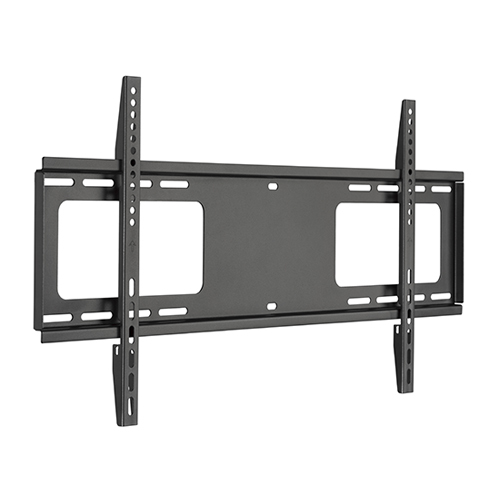

Name: LP38-48F Heavy Duty Fixed TV Walll Mount bracket for 43"-95" TVs
SKU: LP38-48F
Availability: InStock

With an impressively low 0.94″ (24mm) mounting profile, the LP38-48F is a super slim mount perfectly fits those applications where seamless integration counts most. It supports most 43″ ~ 95″ flat panel TVs up to 80kgs/176lbs. VESA patterns up to 800x400mm. If you’re looking to add deep to your favorite movie, the LP38-48F is waiting to show you what you’ve been missing.

Specification

Product Category:	Fixed TV Wall Mount
Rank:	Standard
Material:	Steel
Metal Sheet Thickness:	Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.059″ cold-rolled sheet,Wall Plate THK=0.079″ cold-rolled sheet)
Surface Finish:	Powder Coating
Color:	Fine Texture Black

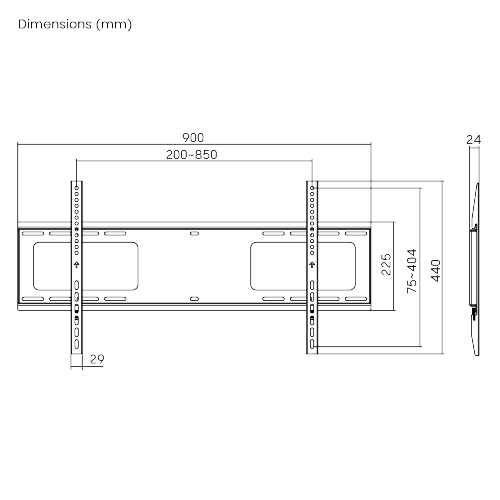

Dimensions:	900x440x24mm (35.4″x17.3″x0.94″)
Fit Screen Size:	43″-95″
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200×200,300×200,400×200,300×300,400×300,400×400,600×400,800×400
Max. Mounting Hole:	800×400

Weight Capacity:	80kg (176lbs)
Strength Tested:	4 Times Approved
Profile:	24mm (0.94″)
Installation:	Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	Magnetic Bubble Level(Included in Components Package)
Accessory Kit Package:	Compartment Polybag
Certification:	UL
