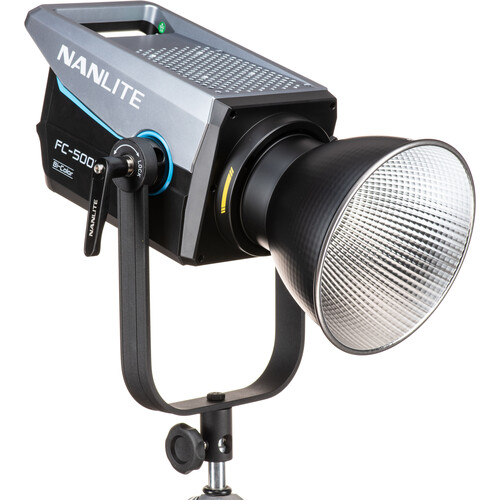

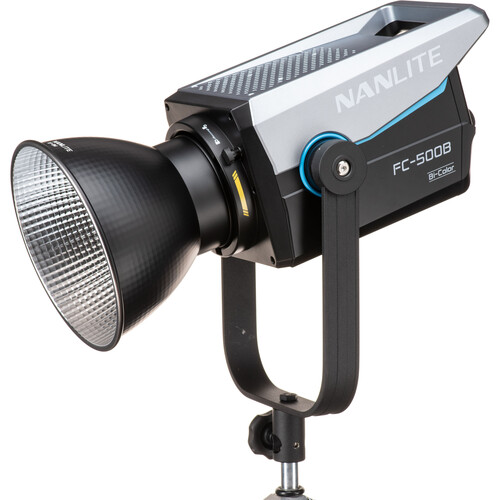

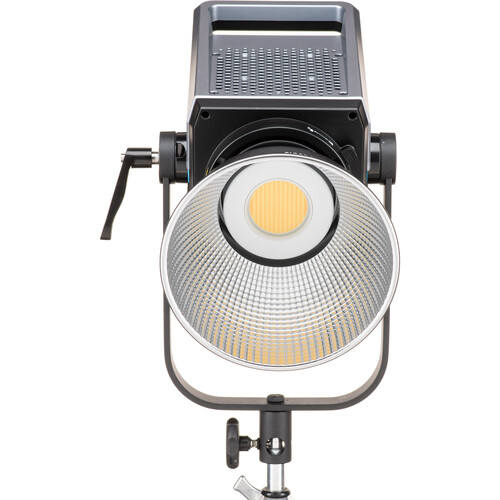

Name: Nanlite FC500B Bi-Color LED Spotlight
SKU: FC500B
Availability: InStock

Designed to give you full flexibility of a bi-color output, the FC500B Bi-Color LED Spotlight from Nanlite is a compact, stylish AC-powered fixture suitable to light up most scenarios with a Kelvin range of 2700 to 6500K. With an innovative wing-shaped top housing, the FC500B stands out from other Nanlite fixtures. Delivering impressive brightness, it ensures faithful color reproduction with a CRI of 96 and a TLCI of 98 and provides advanced features with intuitive onboard and remote control.

This highly versatile light comes with Bluetooth and 2.4 GHz for wireless connection, DMX/RDM capability, and smart fan modes for complete control over sound. The FC500B’s light head is conveniently separated from the included power supply, so each can be as lightweight as possible. A reflector and a robust carry case are also supplied for extended output and portability.

Bi-Color Output with Advanced Features

Advanced features include maximum output mode to supply full output power and constant output mode to maintain constant intensity across the CCT range. Adjustable from 0 to 100% in 0.1% increments, users can easily fine-tune the dimming to achieve the precise intensity needed for video and photo productions. At 5600K, this light outputs an incredible 65,640 lux at 3.3′ with the included reflector.

Multiple Control Options

For precision control, intuitive local knobs and a 2″ screen are available, but the FC500B can also be controlled remotely using your smartphone.

You can fully control the light from your smartphone via Bluetooth with the NANLINK app
The fixture can also be remotely controlled on a 2.4 GHz connection using the separately available WS-TB-1 transmitter or WS-RC-C2 remote control
Locking metal 3.5mm DMX/RDM port facilitates advanced control and enables the FC500B to be quickly adopted into any DMX-controlled environment

12 Practical Lighting Effects

Choose between 12 built-in customizable effects that can be saved as presets using the NANLINK app.

CCT loop, INT loop, flash, pulse, storm, TV, paparazzi, candle/fire, bad bulb, firework, explosion, and welding

Smart Fan Modes

The light offers smart fan modes to suit your sound requirements on-set, avoiding interference with audio recording.

AC Operation

The FC500B is conveniently ready to work plugged into a standard AC outlet thanks to its included 110 to 240 VAC power supply. The FC500B’s power supply has a safety strap to hang it on a separately available light stand.

Easy Positioning Yoke

The FC500B ships with a yoke with a one-sided lock that allows 360° rotation for a greater tilting range. A 5/8″ receiver accepts industry-standard light stands, and the light’s Bowens mount is widely compatible with multiple light modifiers.

Bowens Mount

By utilizing the near-universal Bowens-style light modifier mount and incorporating an umbrella holder, the FC500B is compatible with an extensive selection of light modifiers.

Travel-Ready Case

A corrosion-resistant carry case with efficient shock protection is included, so you can safely transport and store your light when not in use.

Additional Features

The light’s head measures 14.69 x 9.7 x 5.87″ and weighs 6.97 lb
520W unit
USB port allows firmware updates

Specification

Item Type	1x LED Monolight
Included Storage Case	Yes
Photometrics	2700K: 1516 fc / 16,320 Lux 3200K: 1640 fc / 17,660 Lux 5600K: 1961 fc / 21,110 Lux 6500K: 1846 fc / 19,880 Lux

Color Temperature	2700 to 6500K
Color Modes	Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 98
Dimming	• 0 to 100%
Front Accessory Mount	Bowens S
Wireless Remote Control Type	Bluetooth Radio/RF
Power Source	AC Power (Cable Built-In)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	520 W
Fixture Mounting	1x 5/8″ Receiver (Via Yoke Mount)

Light Fixture

Item Type	1x LED Monolight
Included Storage Case	Yes
Photometrics	2700K: 1516 fc / 16,320 Lux at 3.3′ / 1 m* 4575 fc / 49,250 Lux at 3.3′ / 1 m (with Reflector) 3200K: 1640 fc / 17,660 Lux at 3.3′ / 1 m 5065 fc / 54,530 Lux at 3.3′ / 1 m (with Reflector) 5600K: 1961 fc / 21,110 Lux at 3.3′ / 1 m 6097 fc / 65,640 Lux at 3.3′ / 1 m (with Reflector) 6500K: 1846 fc / 19,880 Lux at 3.3′ / 1 m 5923 fc / 63,760 Lux at 3.3′ / 1 m (with Reflector)*Standardized Measurement Supplied by the Manufacturer
Color Temperature	2700 to 6500K
Color Modes	Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 98
Dimming	• 0 to 100%
Cooling System	Fan
Beam Angle	120° Unmodified
Built-In Flash	No
Umbrella Mount	Yes
Front Accessory Mount	Bowens S

Connectivity

Wireless Remote Control Type	Bluetooth Radio/RF
Mobile App Compatible	Yes: Android & iOS App Name: NANLINK
Wireless Frequency	2.4 GHz

Power & I/O

Power Source	AC Power (Cable Built-In)
Input Power	100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	Yes
Power Consumption	520 W

Mounting

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 5/8″ Receiver (Via Yoke Mount)

General

Display	Yes
Environmental Resistance	No
Dimensions	14.69 x 9.7 x 5.87″ / 37.31 x 24.64 x 14.91 cm (Fixture) 11.09 x 4.45 x 3.58″ / 28.17 x 11.3 x 9.09 cm (Power Supply/Controller)
Weight	6.97 lb / 3.16 kg (Fixture) 4.94 lb / 2.24 kg (Power Supply/Controller)
