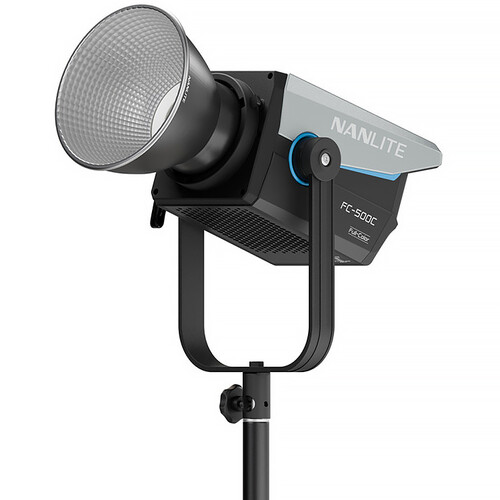

Name: Nanlite FC500C RGB LED Spotlight
SKU: FC500C
Availability: InStock

Nanlite introduces the versatile, full-color FC500C RGB LED Spotlight. This powerful 500W light delivers improved performance with a Kelvin range of 2700 to 7500K, plus 36,000 vivid colors for a wide range of RGB color options. Like its bi-color version, the FC500C is a compact, stylish AC-powered fixture that can also run on optional V-mount batteries when combined with the separately available FC power controller. With the Nanlite’s innovative wing-shaped top housing, the FC500C stands out from other fixtures. Delivering an impressive light output, it ensures faithful color reproduction with a CRI of 95 and a TLCI of 94, and it provides advanced features with intuitive onboard and remote control.

Advanced Features

This highly versatile light comes with Bluetooth and 2.4 GHz for wireless connection, DMX/RDM capability, and smart fan modes for complete control over sound. The FC500C’s light head is conveniently separated from the included power supply, so each can be as lightweight as possible.

Bright Light Output

At 5600K, this light outputs an incredible 57,050 lux at 3.3′ with the included reflector. Adjustable from 0 to 100% in 0.1% increments, it allows users to easily fine-tune the dimming to achieve the precise intensity needed for video and photo productions.

RGBW Capability

Other benefits are green-to-magenta shift by +/- 150, 151 gel presets, HSI mode, and an RGBW mode that allows individual control of red, green, blue, and white colors.

Faithful Color Reproduction

CRI of 95, TLCI of 94, SSI of 84 (3200K), and SSI of 71 (5600K) are indicators of advanced color rendering. Other scores are TM-30 (Rf) of 92 and TM-30 (Rg) of 100. These high numbers ensure optimized skin tones and accurate colors for your images.

Multiple Lighting Effects

With built-in lighting effects, the FC500C makes it easy to imitate lighting scenarios that can otherwise be tricky to recreate. At the touch of a button, you can simulate different practical effects, such as HUE loop, CCT loop, INT loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.

Multiple Control Options

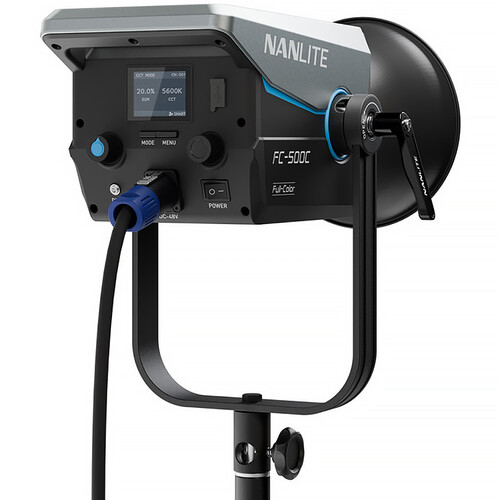

For precision control, intuitive local knobs and a 2″ screen are available, but the FC500C can also be controlled remotely using your smartphone.

You can fully control the light from your smartphone via Bluetooth with the NANLINK app
The fixture can also be remotely controlled on a 2.4 GHz connection using the separately available WS-TB-1 transmitter or WS-RC-C2 remote control
Locking metal 3.5mm DMX/RDM port facilitates advanced control and enables the FC500C to be quickly adopted into any DMX-controlled environment

AC Operation

Thanks to its included 100 to 240 VAC power supply, the FC500C is conveniently ready to work plugged into a standard AC outlet. The power supply also has a safety strap for hanging it on a separately available light stand.

Optional Battery Power

With the separately available FC power controller and optional V-mount batteries, the FC500C is also suitable for reliable work in the field.

Smart Fan Modes

The light offers smart fan modes to suit your sound requirements on-set, avoiding interference with audio recording.

Easy Positioning Yoke

The FC500C ships with a yoke with a one-sided lock that allows 360° rotation for a greater tilting range. A 5/8″ receiver accepts industry-standard light stands, and the light’s Bowens mount is widely compatible with multiple light modifiers.

Bowens Mount

By utilizing the near-universal Bowens-style light modifier mount and incorporating an umbrella holder, the FC500C is compatible with an extensive selection of light modifiers.

Travel-Ready Case

A hard foam carry case with efficient shock protection is included, so you can safely transport and store your light when not in use.

Additional Features

The light’s head measures 15 x 9.7 x 5.8″ and weighs 8.6 lb

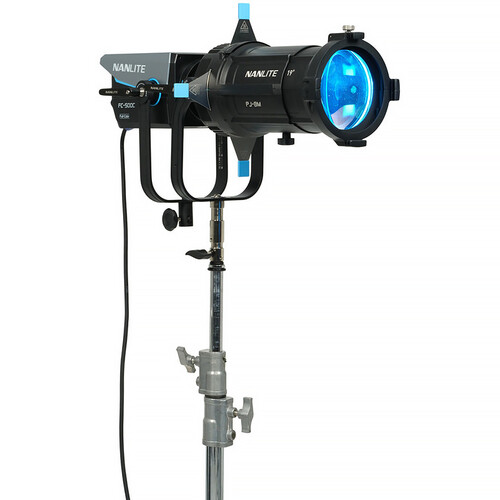

Compatible with the optional PJBM projection attachment
USB port allows firmware updates

Specification

Item Type	1x LED Monolight
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics at 3.3′ / 1 m	3200K: 2598 fc / 27,970 Lux (Unmodified) 5600K: 2673 fc / 28,770 Lux (Unmodified)
Color Temperature	2700 to 7500K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 94
Dimming	App-Controlled / Controller Included / DMX / RDM • 0 to 100%
Front Accessory Mount	Bowens S
Wireless Remote Control Type	Bluetooth Radio/RF *Remote Not Included
Power Source	AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	500 W
Fixture Mounting	1x 5/8″ Receiver (Via Yoke Mount)

Light Fixture

Item Type	1x LED Monolight
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics	3200K: 2598 fc / 27,970 Lux at 3.3′ / 1 m (Unmodified) 299 fc / 3215 Lux at 9.8′ / 3 m (Unmodified) 5158 fc / 55,520 Lux at 3.3′ / 1 m (with Reflector) 514 fc / 5532 Lux at 9.8′ / 3 m (with Reflector) 5600K: 2673 fc / 28,770 Lux at 3.3′ / 1 m (Unmodified) 307 fc / 3303 Lux at 9.8′ / 3 m (Unmodified) 5300 fc / 57,050 Lux at 3.3′ / 1 m (with Reflector) 529 fc / 5699 Lux at 9.8′ / 3 m (with Reflector)
Color Temperature	2700 to 7500K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 94
Dimming	App-Controlled / Controller Included / DMX / RDM • 0 to 100%
Cooling System	Fan
Built-In Flash	No
Preprogrammed Effects	No
Umbrella Mount	Yes
Front Accessory Mount	Bowens S

Connectivity

Wireless Remote Control Type	Bluetooth Radio/RF *Remote Not Included
Mobile App Compatible	Yes: Android & iOS App Name: Nanlink Functionality: Remote Control
Wireless Frequency	2.4 GHz

Power & I/O

Power Source	AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs	Light Fixture To Power Supply/Controller: 1x Unspecified Power Input Power Supply/Controller To Light Fixture: 1x Unspecified Power Output 1x IEC Power Input 1x Unspecified DMX Input
Input Power	100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	1x USA Type-A/B Plug to IEC Cable (19.6′ / 6 m) 1x Unspecified to Unspecified Cable
Inline Switch	No
Power Pass-Thru	No
Power Consumption	500 W

Mounting

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 5/8″ Receiver (Via Yoke Mount)

General

Display	Yes
Environmental Resistance	No
Operating Conditions	-4 to 113°F / -20 to 45°C
Dimensions	15 x 9.7 x 5.87″ / 38.1 x 24.6 x 14.91 cm (Fixture) 11.09 x 4.45 x 3.58″ / 28.17 x 11.3 x 9.09 cm (Power Supply/Controller)
Weight	8.6 lb / 3.9 kg (Fixture) 4.94 lb / 2.24 kg (Power Supply/Controller)
