Name: Nissin MF18 Macro Ring Flash for Nikon
SKU: MF18-N
Availability: InStock

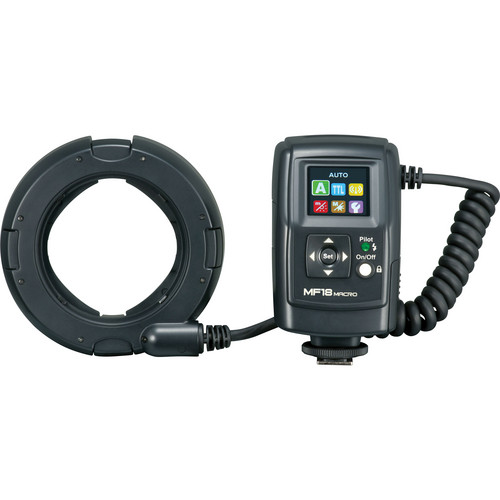

The Nissin MF18 Macro Ring Flash for Nikon is a ringlight flash, specifically designed for use with Nikon cameras with i-TTL capabilities. Featuring a Fine Macro mode, this flash provides highly precise light control from 1/128 to 1/1204 in 1/6 EV steps, to achieve the greatest accuracy. The MF18 is high-speed sync (HSS) capable to 1/8000 second when shooting in TTL or Manual mode (1/1 to 1/64). HSS gives you the freedom to shoot with larger apertures when a shallow depth of field is desired, even when shooting in bright sunlight. When used in manual mode, the flash can be adjusted in 1/3 EV steps from full power down to 1/64th power. The tube flash design is divided in half, allowing you to vary light output depending on the lighting conditions. This design also works in conjunction with the expansion flash head, permitting use of this flash on lenses ranging from 49mm to 82mm in diameter. Specially constructed for the MF18, additional adapter rings can be purchased separately for lens sizes 49, 52, 55, 58, 62,67, 72, 77, and 82mm.

Brand Compatibility

Ringlight flash specifically designed for use with Nikon cameras with i-TTL capabilities.

High-Speed Sync

The MF18 is high-speed sync (HSS) capable to 1/8000 second when shooting in TTL or Manual mode (1/1 to 1/64). HSS gives you the freedom to shoot with larger apertures when a shallow depth of field is desired, even when shooting in bright sunlight. With a guide number of 16 (meters) the MF18 is also powerful enough to give you the freedom to stop down your lens and shoot with smaller apertures when a greater depth of field is required, even when shooting with

Fine Macro Mode

Fine Macro mode provides highly precise light control from 1/128 to 1/1024 in 1/6 EV steps to achieve the greatest accuracy. Variable power in manual mode is 1/1 – 1/64 minus 2/3 EV in in 1/3 EV steps.

Flash Tube Design

Tube flash design works in conjunction with the expansion flash head, permitting use of this flash on lenses ranging from 49mm to 82mm in diameter.

Wireless TTL

Wireless TTL and multi-function remote control system allow this flash to control slave groups with +/- 3 stops EV compensation.

Color Display

Color display features an easily navigable menu that automatically rotates depending on the camera’s orientation.

Nissin Compatibility

Compatible with separately available Nissin PS 8 Ni-MH Battery Pack for Nikon Camera.

Modeling Lamp

Modeling LED lamp works in conjunction with power ratio control feature to help better preview your lighting.

Specification

Guide Number	52.5′ / 16 m at ISO 100 (50 mm Position)
Recycle Time	Approx. 0.1 to 5.5 Seconds
Exposure Control	Nikon i-TTL
Secondary Illumination	Modeling Light
Wireless Operation	Radio (TTL) Unspecified Range
Color Temperature	5600K
Internal Power	4x AA
Lens Compatibility	52mm/58mm/62mm/67mm/72mm/77mm Filter Threads (via Included Adapter Ring) 49mm/55mm/82mm Filter Threads (via Optional Adapter Ring)

Flash

Guide Number	52.5′ / 16 m at ISO 100 (50 mm Position)
Angle of Coverage	80°
Flash Duration	1/700 to 1/300 Second at Full Power
Recycle Time	Approx. 0.1 to 5.5 Seconds
Exposure Control	Nikon i-TTL
Power Range	1/1 to 1/1024
Secondary Illumination	Modeling Light

Wireless

Wireless Operation

Radio (TTL)
Unspecified Range

LED

Color Temperature

5600K

Power

Internal Power	4x AA
External Power Pack Compatible	Yes

General

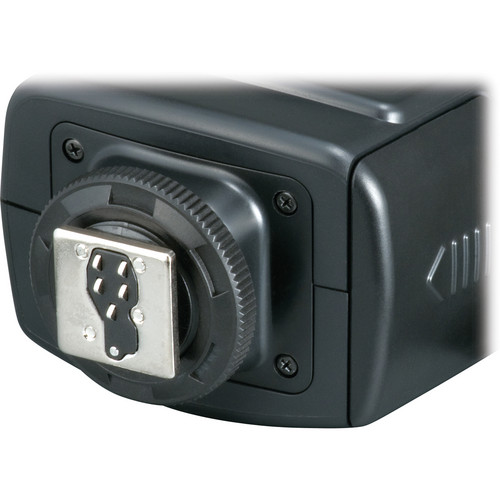

Mount	Shoe Mount (Controller), Lens Mount (Flash)
Lens Compatibility	52mm/58mm/62mm/67mm/72mm/77mm Filter Threads (via Included Adapter Ring) 49mm/55mm/82mm Filter Threads (via Optional Adapter Ring)
Display	No
Off-Camera Terminal	PC
Dimensions (W x H x D)	4.5 x 2.6 x 3.3″ / 11.5 x 6.5 x 8.5 cm (Controller) 4.7 x 5.3 x 1.6″ / 12.0 x 13.4 x 4.1 cm (Ring)
Weight	15.7 oz / 445.1 g (without Batteries)
