Name: Sennheiser EW 112P G4 Camera-Mount Wireless Omni Lavalier Microphone
SKU: EW 112P G4-A
Availability: InStock

The Sennheiser EW 112P G4 camera-mount wireless lavalier microphone system features the proven combination of reliability, flexible control, and broadcast-quality sound that has made the EW Series an industry standard for videographers, journalists, and content creators all over the world.

The EW 112P G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The frequency scan function automatically searches for the cleanest frequency at your location, while the adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio.

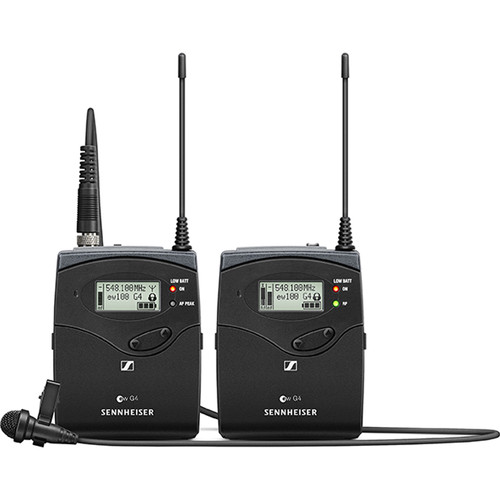

The system includes the improved ME 2-II omnidirectional lavalier mic, a bodypack transmitter, and a camera-mount receiver. It connects to a camcorder or a DSLR/mirrorless camera to capture crisp-sounding speech or dialog for projects ranging from documentaries to wedding videos, corporate spots, and hands-free interviews.

The EW 112P G4 is backward-compatible with previous evolution systems, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 500 systems.

Built for Dependable Performance in the Field

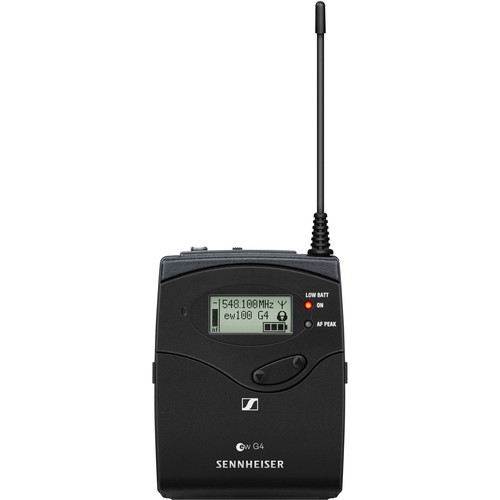

The EW 112P G4 features rugged, all-metal chassis well suited for extended use on location. The lightweight, compact bodypack transmitter is easy to conceal and offers rounded edges that are soft to the touch and comfortable for the talent to wear. A locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic.

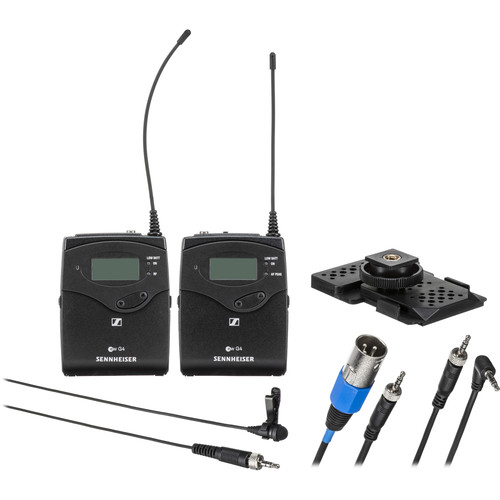

Using the included shoemount adapter, the equally compact receiver easily mounts on your camera without adding much weight. The included cables allow you to connect the receiver to the 3.5mm or XLR audio input of any DSLR/mirrorless, camcorder, or recording device.
Both transmitter and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level. To get you going quickly, they synchronize via infrared interface with the simple push of a button.

Proven Broadcast-Quality Sound

The EW 112P G4 ships with the popular ME 2-II omnidirectional lavalier microphone, which delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker’s head moves away from the mic.
To take full advantage of the ME 2-II’s dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission, and delivering audio with remarkable accuracy and quality.

Additional Features

Adaptive-diversity reception for reliable transmission up to 330′
42 MHz bandwidth with 1680 tunable UHF frequencies for clean reception
20 frequency banks, each with up to 12 factory-preset channels to prevent intermodulation
Pilot tone squelch for eliminating RF noise when transmitter is turned off
Receiver with adjustable output range of 42 dB to match the audio input of your camera or recording device
User-friendly menu operation with flexible control options
Transmitter and receiver feature 4-step battery-life indicator
Auto-Lock function avoids accidental changing of settings
RF Mute function
8 hours of battery life
Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
Side contacts for recharging the Accupacks without removing them from either transmitter or receiver—requires the L 2015 quick-charging unit (available separately)
Operate up to 12 wireless mics at once on set
Unlike digital wireless systems, the SK 100 G4 transmitter can transmit to an unlimited number of EW Series receivers
Wide range of accessories adapts the system to a variety of applications

Specification

Wireless Technology	Analog UHF
Diversity	Yes
Max Operating Range	330′ / 100.6 m (Line of Sight)
Receiver Type	1x Camera-Mount
Number of Audio Channels	1
Included Transmitters	1x Bodypack
Microphone Type	1x Lavalier
Included Charging Case	No

System

Wireless Technology	Analog UHF
Diversity	Yes
RF Frequency Band	A: 516 to 558 MHz
Number of RF Channel Frequencies	1680
Max Operating Range	330′ / 100.6 m (Line of Sight)
Max Transmitters per Band	12
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No

Receiver

Receiver Type	1x Camera-Mount
Mounting Options	Shoe-Mount (with Included Hardware)
Antenna	1x Fixed Flexible Whip
Number of Audio Channels	1
Audio I/O	1x 1/8″ / 3.5 mm Locking TRS Unbalanced Output
Network I/O	No
USB/Lightning Connectivity	No
Gain Range	42 dB (6 dB Steps)
Display	Backlit LCD
Power Requirements	Battery

Transmitters

Included Transmitters	1x Bodypack
RF Output Power	30 mW
Antenna	Fixed Flexible Whip
Input Level	Microphone / Line / Instrument
Audio I/O	1x 1/8″ / 3.5 mm Locking TRS Female Input
Muting	Mute Switch
Gain Range	60 dB (3 dB Steps)
Auto-Level/Gain	No
Frequency Response	80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line)
Sync Method	IR
Display	Backlit LCD

Microphones

Microphone Type	1x Lavalier
Polar Pattern	Omnidirectional
Frequency Response	50 Hz to 18 kHz
Maximum SPL	130 dB
Sensitivity	20 mV/Pa
Output Connector	1x 1/8″ / 3.5 mm Locking TRS Male
Cable Length	5.25′ / 1.6 m
Color	Black

Power

Receiver Battery Type	2x AA (Included) or 1x Sennheiser Battery Pack (Not Included)
Receiver Battery Life	8 Hours (Alkaline)
Transmitter Battery Type	2x AA (Included) or 1x Sennheiser Battery Pack (Not Included)
Transmitter Battery Life	8 Hours (Alkaline)
Included Charging Case	No

Charging Case

Input Power

3 VDC at 180 mA

Physical

Housing	Metal
Dimensions	Receiver: 3.2 x 2.5 x 0.9″ / 82 x 64 x 24 mm Transmitter: 3.2 x 2.5 x 0.9″ / 82 x 64 x 24 mm
Weight	Receiver: 5.6 oz / 160 g (with Batteries) Transmitter: 5.6 oz / 160 g (with Batteries) Microphone: Not Specified
