Name: SmallRig 4323 V-Lock Battery Plate with 15mm LWS Base Kit
SKU: 4323
Availability: InStock

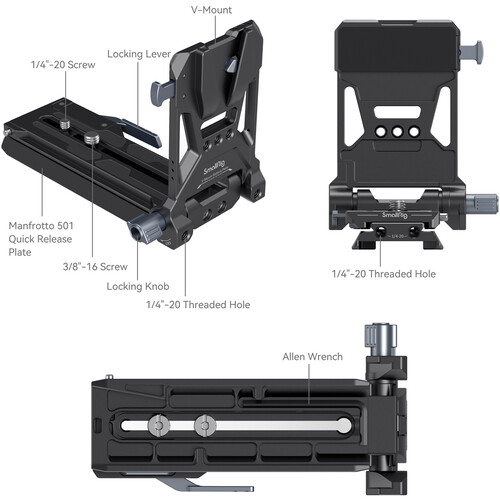

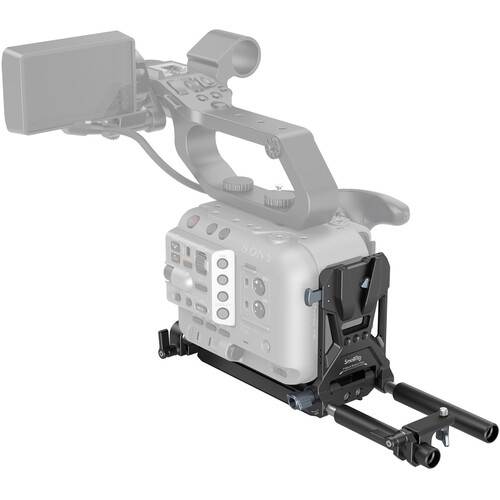

Add a lightweight mounting system to your small camera rig with this V-Lock Battery Plate with 15mm LWS Base Kit from SmallRig. This kit features a folding baseplate with a Manfrotto 501-type quick release plate on the base and a V-lock plate on the back that can fold down 180° to fold out of the way of the camera rear.

The V-lock plate is designed for V-mount batteries with power outputs to mount onto the back of the camera but contains no electronics. The baseplate is extendable, allowing the camera to slide up to 3.9″ for more space or to add counterbalance for cameras with larger lenses. Also included is a 15mm LWS rod clamp for the front, and the two included 4″ 15mm rods screw onto the back of the baseplate for additional mounting of optional pads or counterweights. A wireless device mount is also included that mounts onto a 15mm rod that provides a 1/4″-20 screw.

Key Features

All-in-one design with V-mount battery mounting solution (there are no electronic contacts on the V-lock plate).

Lightweight, modular folding baseplate design.

The base features a 3.9″ sliding range to adjust the center of gravity.

The V-lock plate folds down 180° for easy storage and to use the camera’s rear plate.

Built-in Manfrotto 501-type quick release plate at the bottom for quick switching between handheld and tripod.

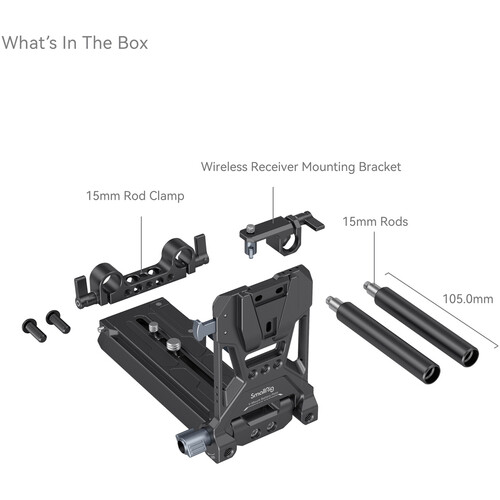

Includes a 15mm rod clamp, 4″ 15mm rods, and a wireless device mounting bracket, which provide mounting for an optional follow focus, matte box, lens support, shoulder pad, and other accessories.

Specification

Support Type	Baseplate
Configuration	Battery Mounting Plate
Grip Type	No
Camera Compatibility	Universal Width: 4.7″ / 12 cm

Mounting

Rod Standard	15 mm LWS / 60 mm Spacing
Included Rods	2x 4.1″ / 10.5 cm 15 mm Aluminum Rod • M12 Male Screw
Battery Plate Type	No
Accessory Mounting	Rod Block, Front 2x 1/4″-20 Male Screw
Camera Mounting	Manfrotto 501 Plate with 1/4″-20 Male Screw, 3/8″-16 Male Screw
Tripod Mounting	Baseplate Manfrotto 501
Rod Ports	Rod Blocks 2x 15 mm Rod Port
Shoe Mounting	No
Rosettes	No
Cable Clamp	No

General

Filter Compatibility	No
Materials	Aluminum, Steel
Dimensions	11.5 x 4.9 x 4.3″ / 291 x 124 x 108 mm
Weight	15.7 oz / 446 g
Mounting Options	Female V-Lock Receiver Plate for V-Mount Battery or Accessory (Unpowered)
