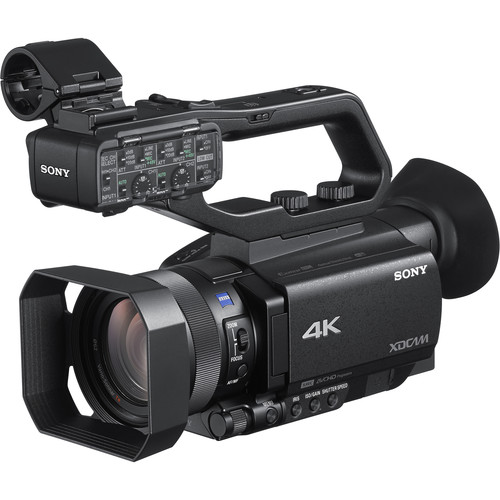

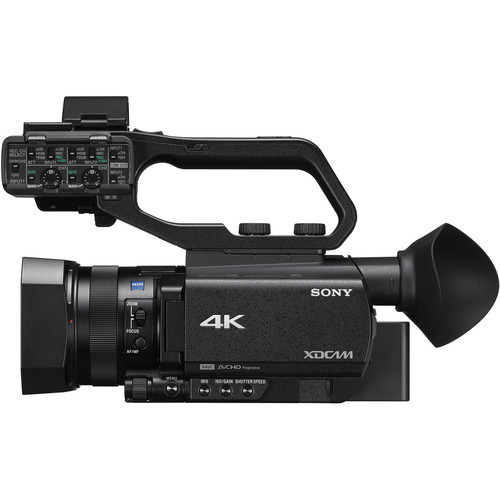

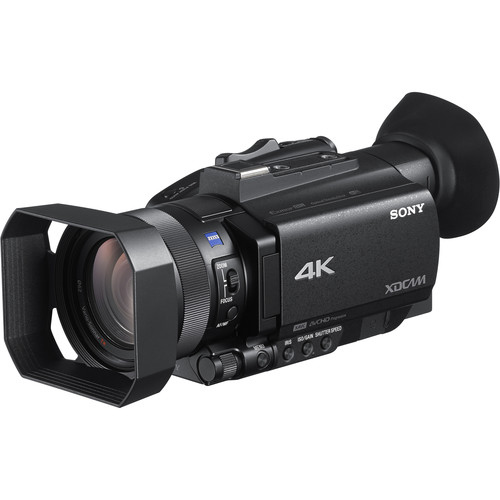

Name: Sony PXW-Z90V 4K HDR XDCAM with Fast Hybrid AF
SKU: 22381
Availability: InStock

Sony 4K HDR XDCAM with Fast Hybrid AF offers phase-detection autofocus (AF) and HDR capabilities in a compact, palm-style body. Suitable for corporate events, broadcast news, and television production, the PXW-Z90V camcorder features a stacked 1″ Exmor RS CMOS sensor with UHD 4K (3840 x 2160) resolution, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5″ touchscreen LCD monitor. It can record 4K in XAVC Long at 4:2:0, HD in XAVC Long at 4:2:2 10-bit, as well as MPEG HD at 4:2:2 (requires optional license key). S-Log3/S-Gamut3 functions offer users additional image control.

The PXW-Z90V’s Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking—a boon when shooting UHD 4K, especially for individual operators. In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject’s focus. The PXW-Z90V’s 3.5″ touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles.

Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your 4K recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the PXW-Z90V’s 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.

The PXW-Z90V camera supports Sony’s Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps. Recording to a variety of formats, frame rates, and codecs, the camcorder supports 100 Mb/s XAVC Long recording of 4K UHD video at up to 29.97p, and 50 Mb/s capture of HD up to 59.94p. Footage is recorded to two SD memory card slots, either simultaneously to both cards or in relay mode to create a backup. The PXW-Z90V’s 3G-SDI output offers integration with professional studio environments.

Specification

Image Sensor	1″-Type
Effective Sensor Resolution	14.2 Megapixel
Image Stabilization	Optical in Integrated Lens
ISO/Gain Sensitivity	Gain: -3 to 33 dB
Max Recording Modes	XAVC Up to UHD 4K up to 29.97 fps AVCHD 1080p up to 29.97/480/240/500/250/1000/100/50/59.94 fp
Max Video Output	720p
Media/Memory Card Slot	Dual Slot: SD/SDHC/SDXC
Video I/O	1x HDMI Output 1x BNC (Composite) Output 1x BNC (3G-SDI) Output
Mobile App Compatible	No
Battery	Sony V-Series

Imaging

Image Sensor	1″-Type CMOS
Effective Sensor Resolution	14.2 Megapixel
Image Stabilization	Optical in Integrated Lens
Built-In ND Filter	Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/10000 to 1/6 Second
ISO/Gain Sensitivity	Gain: -3 to 33 dB
Minimum Illumination	1.7 Lux at 1/30 Shutter Speed
White Balance	Range: 2300 to 15,000K

Lens

Focal Length	9.3 to 111.6mm (35mm Equivalent: 29 to 348mm)
Zoom	12x Optical
Minimum Aperture	f/2.8 to 4.5
Minimum Focus Distance	0.4″ / 1 cm (Wide) to 39.4″ / 100.1 cm (Tele)
Filter Size	62 mm
Control Rings	Focus Zoom

Focus

Focus Mode

Automatic, Manual Focus

Video Capture

Internal Recording	XAVC 3840 x 2160 up to 29.97 fps (60 to 100 Mb/s) 1920 x 1080p up to 1000/100/480/240/500/250/50/29.97/59.94 fps (35 to 50 Mb/s) 1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s) 1280 x 720 at 50/59.94 fps (50 Mb/s) AVCHD 1920 x 1080p up to 29.97/480/240/500/250/1000/100/50/59.94 fps24 to 28 Mb/s)
Video Output	1280 x 720
Fast-/Slow-Motion Support	Yes
Built-In Microphone	Stereo
Audio Recording	2-Channel, 24-Bit at 48 kHz
IP Streaming	H.264, RTMP, RTMPS 1280 x 720 (3.0 Mb/s) 640 x 360 (1.0 Mb/s)

Interface

Media/Memory Card Slot	Dual Slot: SD/SDHC/SDXC
Internal Storage	No
Video I/O	1x HDMI Output 1x BNC (Composite) Output 1x BNC (3G-SDI) Output
Audio I/O	2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power) 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output
Power I/O	1x Barrel Input
Other I/O	1x Micro-USB 1x Micro-USB Control 1x 2.5 mm Sub-Mini (LANC) Control
Wireless	Wi-Fi 5 (802.11ac) / NFC
Mobile App Compatible	No
Global Positioning (GPS, GLONASS, etc.)	No
