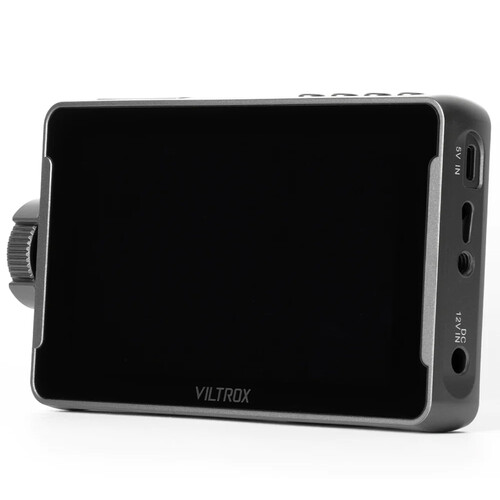

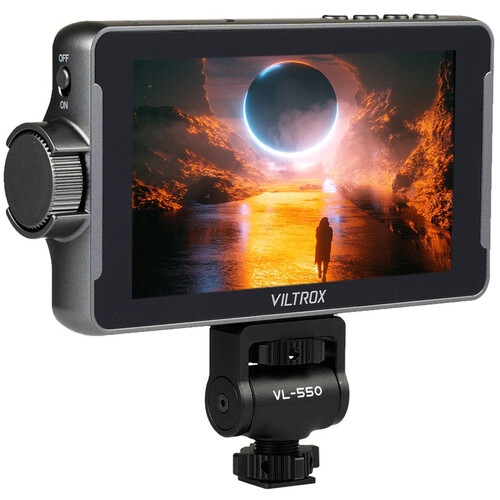

Name: Viltrox DC-550 PRO 5.5" Touchscreen HD Camera Monitor
SKU: DC-550 Pro
Availability: InStock

The lightweight DC-550 PRO 5.5″ Touchscreen HD Monitor from Viltrox lets you view your camera’s image on a bright, sharp 5.5″ display. The DC-550 PRO supports up to 4K30 video input and can send the signal through an HDMI loop-through output. This PRO model features two additional histograms, three parade waveforms, a cooling fan, and 1200 cd/m² brightness, making it suitable for outdoor use.

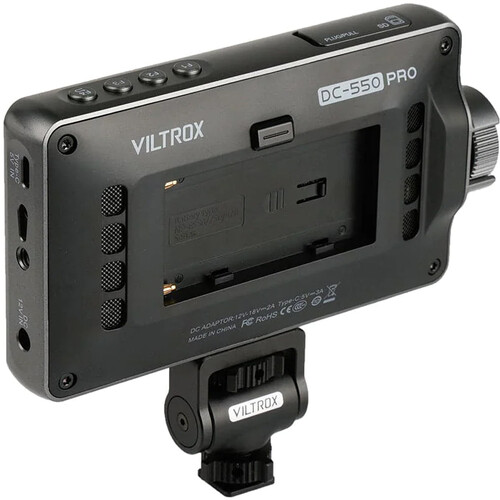

The DC-550 PRO features a 1920 x 1080 touchscreen display that supports live view from your camera, and it provides image tools such as peaking, color temperature, tone, pixel-to-pixel zoom, brightness, and contrast. You can monitor the audio via its built-in speaker or 3.5mm headphone port. At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with the L-series battery, or you can power it with a separately available AC adapter.

Features

Daylight-viewable, 5.5″ on-camera touchscreen LCD monitor with 1920 x 1080 resolution

The DC-550 PRO features 1200 cd/m² brightness for indoor and outdoor use, two additional histograms including RGB and brightness, and three parade waveforms including RGB, Y, and YUV

Full-size HDMI input, full-size HDMI loop-through output

Supports up to 4K30 video input and output

The 178° ultra-wide-angle screen is convenient for creators to enjoy clear picture quality when monitoring from different angles

Power the monitor with a separately available power adapter or Sony L-series type batteries in the built-in battery plate

Rec.709 color standard

Import custom 3D LUTs via a separately available SD card using the built-in slot

Specification

Display Size	5.5″ / 14.0 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	No
Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT Upload Only]
Video Format	HDMI DCI 4K: 30/25/24 UHD 4K: 30/25/24 1080p
Battery	1x L-Series Mount on Fixed Plate

Display

Panel Type	TFT LCD
Display Size	5.5″ / 14.0 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	1200 nits / cd/m² (Peak)
HDR Support	No
LUT Support	No
Image Controls	False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform

Inputs/Outputs

Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Input
Built-In Speaker	No
Power I/O	1x Barrel (2 A / 12 VDC) Input 1x USB-C (3 A / 5 VDC) Input
Other I/O	No
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT Upload Only]

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
DCI 4K: 30/25/24
UHD 4K: 30/25/24
1080p

Power

Input Power	12 to 18 VDC at 2 A
Battery	1x L-Series Mount on Fixed Plate

Mounting

Tripod/Accessory Mounting

Bottom/Right
1x 1/4″-20 Female

General

Environmental Resistance	No
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Material of Construction	Aluminum
Dimensions	6.5 x 3.6 x 1.1″ / 16.5 x 9.1 x 2.9 cm
Weight	9.88 oz / 280.00 g
