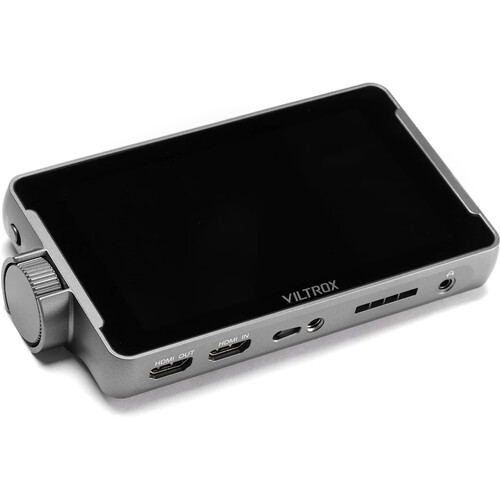

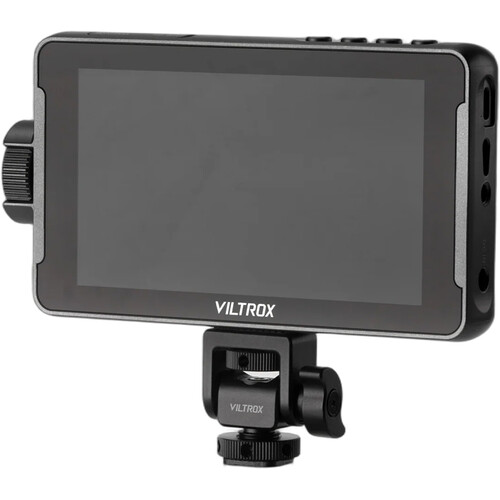

Name: Viltrox DC-550 PRO II 5.5" Touchscreen HD Monitor
SKU: DC-550 PRO II
Availability: InStock

Upgraded Onboard Monitor

The lightweight DC-550 PRO II 5.5″ Touchscreen HD Monitor from Viltrox lets you view your camera’s image on a bright, sharp 5.5″ display. The DC-550 PRO II supports up to UHD 4K60 video input and can send the signal through an HDMI loop-through output. This PRO II model features histograms, positionable waveforms, a cooling fan, 1400 cd/m² brightness, and 1000:1 contrast, making it suitable for outdoor use.

Full Touchscreen Control and Tools

The DC-550 PRO II features a 1920 x 1080 touchscreen display that supports live view from your camera, and it provides image tools such as peaking, color temperature, tone, pixel-to-pixel zoom, brightness, contrast, and custom anamorphic de-squeeze ratios. You can monitor the audio via its built-in speaker or 3.5mm headphone port. The waveforms now feature repositioning for easier viewing and three zoom levels.

Power Options

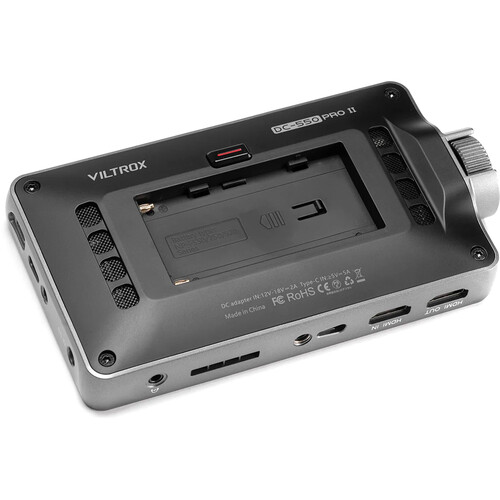

At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with an L-series battery, or you can power it with a separately available AC adapter.

Real-Time LUT Preview

The DC-550 PRO II offers real-time LUTE preview.
This enables you to preview your color grading directly on the screen.
Easily switch between cinematic looks and warm and cool tones.

Specification

Display Size	5.5″ / 14.0 cm
Native Resolution	1920 x 1080
Touchscreen	No
HDR Support	No
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT Upload Only]
Wireless	No
Video Format	HDMI DCI 4K: 60/30/25/24 UHD 4K: 60/30/25/24 1080p
Battery	1x L-Series Mount on Fixed Plate

Display

Panel Type	IPS-Type LCD
Display Size	5.5″ / 14.0 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	160°
Touchscreen	No
Maximum Brightness	1400 nits / cd/m²
Contrast Ratio	1000:1
HDR Support	No
Color Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Pixel-to-Pixel Zoom, RGB Parade, Waveform

Inputs/Outputs

Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Embedded Audio	HDMI Input
Audio I/O	1x 1/8″ / 3.5 mm Headphone Input
Built-In Speaker	No
Power I/O	1x Barrel (12 VDC / 2 A) Input 1x USB-C (5 VDC / 3 A) Input
Other I/O	No
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT Upload Only]
