Name: Viltrox DC-X3 6" Touchscreen On-Camera Monitor with Cage
SKU: DC-X3 WITH CAGE
Availability: InStock

The lightweight DC-X3 6″ Touchscreen HD Monitor with Cage from Viltrox lets you view your camera’s image on a bright, sharp 6″ display. The DC-X3 supports up to DCI/UHD 4K30 via the HDMI and SDI video input and can send the signal through HDMI and SDI loop-through outputs to additional displays. This model includes a rugged outer cage, providing numerous mounting options, including 1/4″-20 and 3/8″-16, anti-twist locating holes, and strap slots.

Ultrabright Display

This daylight-viewable, 6″ on-camera IPS LCD monitor features a 1920 x 1080 resolution, multiple image tools such as histogram and waveform, and 2000 cd/m² brightness that makes it suitable for indoor or outdoor use.

Input/Output

The monitor features HDMI and SDI inputs and HDMI and SDI loop outputs that support video resolutions up to DCI/UHD 4K30. You can monitor the audio via its 3.5mm headphone port or output to separately available speakers.

Image Monitoring Tools

Integrated imaging tools provide peak focus accuracy by capturing key points with precision for sharp, high-quality images. It also includes advanced tools like waveform and 3D LUTs for precise control and real-time color grading.

Power Options

At the rear of the monitor, a built-in L-series battery plate allows you to power the monitor with the L-series battery, or you can power it with a separately available DC barrel or USB-C adapter.

3D LUTs

The integrated SD card slot or the USB port can be used to upgrade the firmware or add custom 3D LUT files to apply to your view.

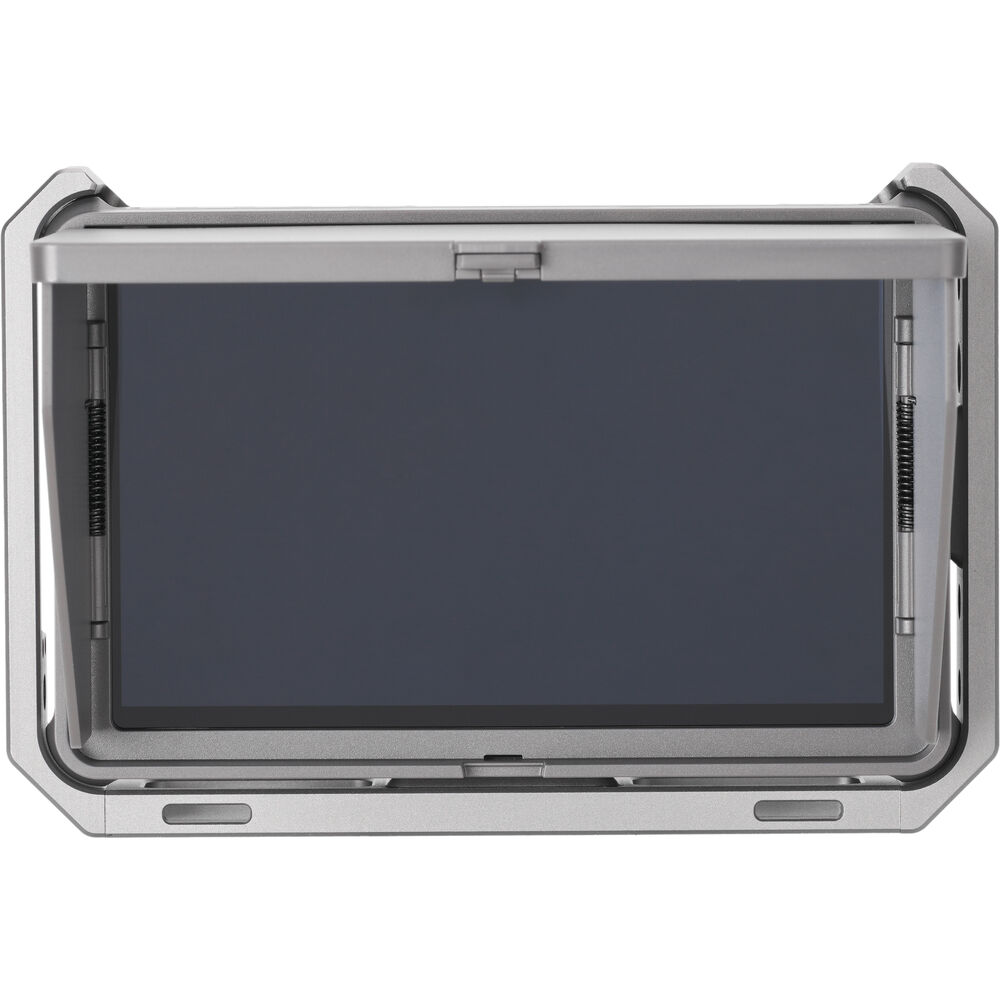

Durable Metal Cage

This model also includes a durable outer cage featuring multiple 1/4″-20 and 3/8″-16, anti-twist locator holes, and strap slots.

It mounts onto the camera using two captive screws.

Mounting and Accessories

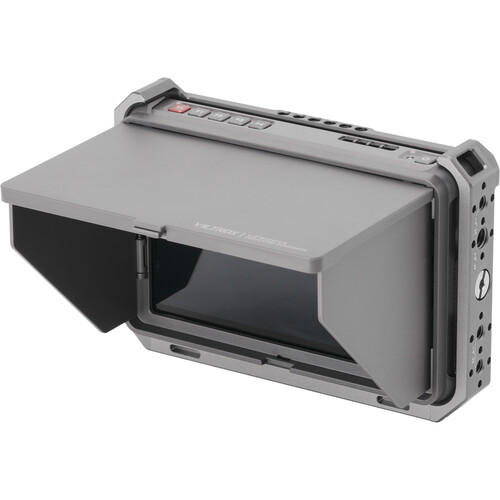

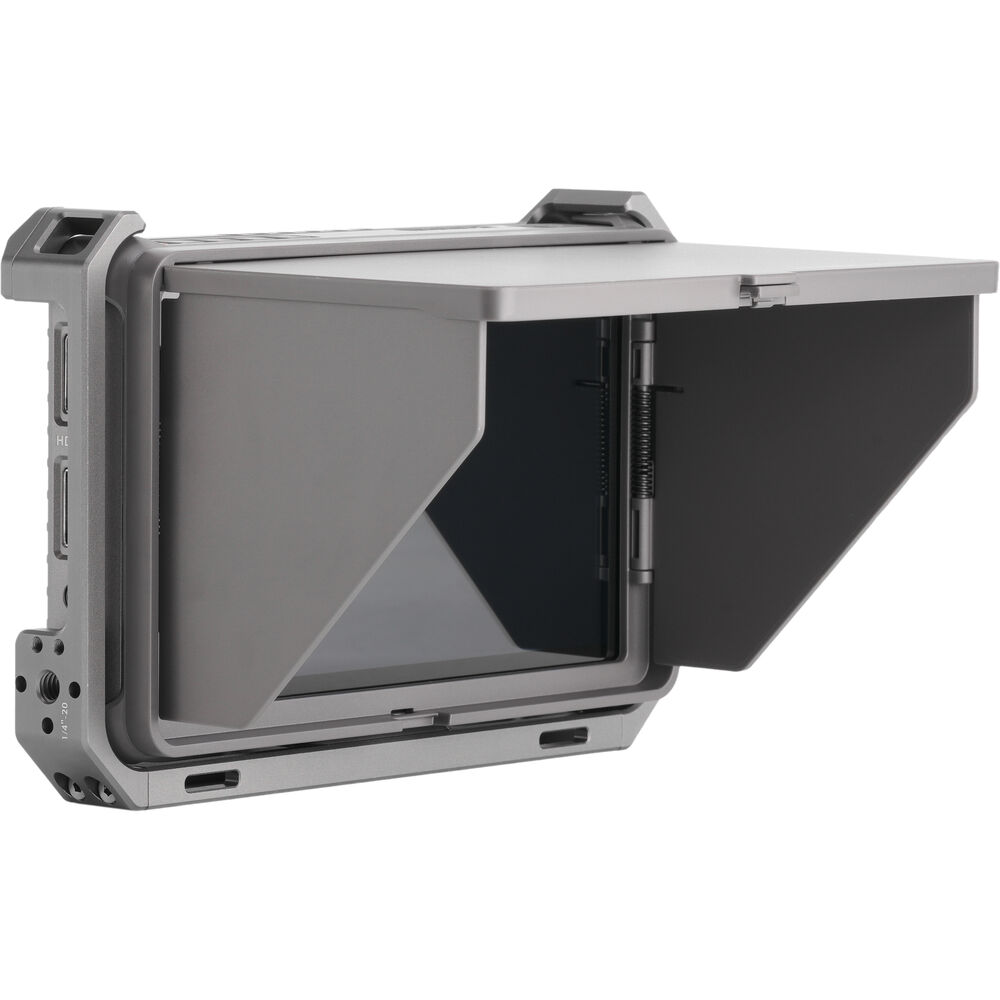

The camera mounts onto a cage, camera, or rig using the included shoe adapter mount, and a sun hood is available to protect the monitor from glare.

Specification

Display Size	6.0″ / 15.2 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	Not Specified by Manufacturer
Media/Memory Card Slot	No
Wireless	No
Video Format	HDMI DCI 4K: 24 UHD 4K: 30 1080p: 60/50 1080i: 60/50 720p: 60/50 480p: 60 576p: 50 NTSC: 60 PAL: 50
Battery	1x L-Series Mount on Fixed Plate

Display

Panel Type	IPS-Type LCD
Display Size	6.0″ / 15.2 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	160°
Touchscreen	Yes
Maximum Brightness	2000 nits / cd/m²
Contrast Ratio	1000:1
Color Support	16.7 Million Colors (8-Bit)
HDR Support	Not Specified by Manufacturer
Color Gamut	100% sRGB 100% Rec. 709
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Histogram, Image Flip, Image Rotate, Overscan, RGB Parade, Underscan, Vectorscope, Waveform, Zebra

Inputs/Outputs

Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel 2.1 mm (18 VDC / 2 A) Input 1x USB-C (9 VDC / 3 A) Input
Other I/O	1x USB-A (Firmware/LUT Upload)
Media/Memory Card Slot	No

Wireless

Wireless	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
DCI 4K: 24
UHD 4K: 30
1080p: 60/50
1080i: 60/50
720p: 60/50
480p: 60
576p: 50
NTSC: 60
PAL: 50

Power

Input Power	10 to 18 VDC at 2 A
Battery	1x L-Series Mount on Fixed Plate

Mounting

Tripod/Accessory Mounting

Bottom
1x Anti-Twist 1/4″-20 Female
Right
1x Anti-Twist 1/4″-20 Female

General

Operating Conditions	32 to 149°F / 0 to 65°C
Storage Conditions	-4 to 167°F / -20 to 75°C
Dimensions	6.1 x 3.9 x 1.2″ / 155.4 x 98.4 x 30 mm
Weight	12.3 oz / 350.00 g
