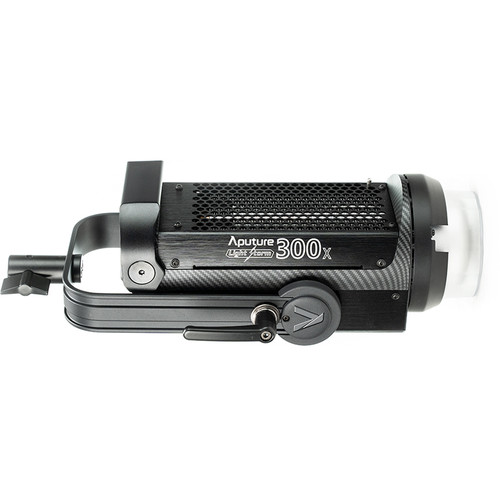

Name: Aputure LS 300x Bi-Color LED Monolight (V-Mount)
SKU: APC0159A2B
Availability: InStock

The LS 300x Bi-Color LED Monolight from Aputure is the first Aputure light to go beyond traditional bi-color lighting by utilizing the expanded vari-white CCT range of 2700-6500K, providing warmer tungsten tones and cooler than daylight whites. The brilliant light can be dimmed from a potent main light to a subtle, nuanced fill light, flicker free across the dimming range. It emits up to 20,500 lux at 3.3′ with its included 55° Hyper Reflector. The Controller Box attached to the LS 300x head with a 9.8′ head extension cable, so adjusting settings is effortless regardless of where the light is set. The self-regulating, multi-voltage controller also operates using single or dual V-mount batteries, suitable for lighting in remote locations.

Robust Bi-Color Performance

Combining the latest optical color-blending technology with Aputure’s dual-color LED chipset provides an unprecedented flexibility from a single LED fixture. A specially-designed color-blending optical element in front of the chipset combines the LED output into a single cohesive point light source. The highly-efficient light output renders at CRI 96, TLCI 96, plus higher than industry standard SS1 85, and D55-SSI 74 ratings. This level of efficiency means colors and skin tones will be reproduced with an extremely-high degree of accuracy.

Local Control, DMX, 2.4 GHz Wireless, and Bluetooth Remote Control Options

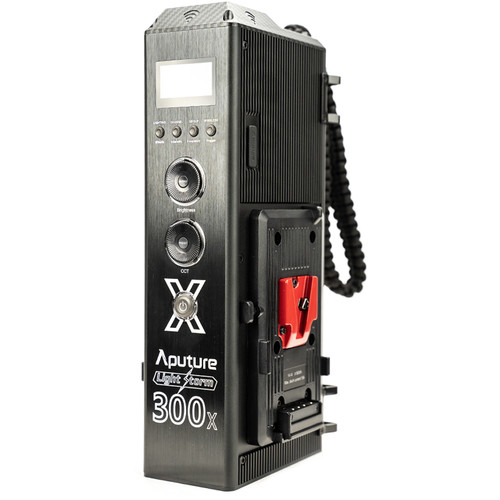

Intuitive local controls and a bright LCD display on the Controller Box allow precise and repeatable setups locally. In addition, the output may be controlled using the included 2.4 GHz wireless remote, or the light may be integrated into a DMX network via the 5-pin XLR in/out ports. Also, thanks to Aputure’s integrated Sidus Mesh network chipset, all the 300x’s functions may be controlled by the Sidus Link app, free to download for iOS and Android portable devices. The app also allows saving presets, adjusting/triggering lighting effects, luminance, and CCT, as well as installation of firmware updates, all from your smartphone or tablet.

Dual Output Modes

Constant Output Mode allows precision CCT adjustment while maintaining constant luminance, and even shift color temperature seamlessly during a scene. Max Output Mode will maximize CCT and dimming levels within the 4000-5500K range.

Bowens S-Mount Versatility

The integrated Bowens-S mount allows using an almost limitless number of available modifiers to narrow, diffuse, or otherwise sculpt the light to suit any application or creative vision.

Four Available Dimming Modes

Linear
Exponential
Logarithmic
S-Curve

5 Available Common CCT Presets

2700K
3200K
4200K
5500K
6500K

Nine Customizable Built-In Lighting Effects

Paparazzi
Fireworks
Lightning
Faulty Bulb
TV
Pulsing
Strobe
Explosion
Fire

Specification

Item Type	1x LED Monolight
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics at 3.3′ / 1 m	105° at 3200K: 473 fc / 5100 Lux 105° at 5600K: 585 fc / 6300 Lux 3200K: 1504 fc / 16,200 Lux (with Reflector) 5600K: 1904 fc / 20,500 Lux (with Reflector)
Color Modes	Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96 CQS 95
Dimming	App-Controlled / Controller Included / DMX (Continuous) • 0 to 100%
Front Accessory Mount	Bowens S
Wireless Remote Control Type	Bluetooth Radio/RF *Remote Included
Power Source	AC Power (Cable Included) Battery (Not Included)
Battery Plate Type	2x V-Mount (Built-In)
Battery	2x V-Mount Rechargeable (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	350 W
Fixture Mounting	1x 5/8″ Receiver (Via Yoke Mount)

Light Fixture

Item Type	1x LED Monolight
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Lumens	56,000
Photometrics	105° at 3200K: 473 fc / 5100 Lux at 3.3′ / 1 m 53 fc / 580 Lux at 9.8′ / 3 m 20 fc / 220 Lux at 16.4′ / 5 m 105° at 5600K: 585 fc / 6300 Lux at 3.3′ / 1 m 65 fc / 700 Lux at 9.8′ / 3 m 23 fc / 250 Lux at 16.4′ / 5 m 3200K: 1504 fc / 16,200 Lux at 3.3′ / 1 m (with Reflector) 120 fc / 1300 Lux at 9.8′ / 3 m (with Reflector) 41 fc / 450 Lux at 16.4′ / 5 m (with Reflector) 5600K: 1904 fc / 20,500 Lux at 3.3′ / 1 m (with Reflector) 157 fc / 1700 Lux at 9.8′ / 3 m (with Reflector) 51 fc / 550 Lux at 16.4′ / 5 m (with Reflector)
Color Modes	Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96 CQS 95
Dimming	App-Controlled / Controller Included / DMX (Continuous) • 0 to 100%
Cooling System	Fan
Beam Angle	105°
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Bowens S

Connectivity

Wireless Remote Control Type	Bluetooth Radio/RF *Remote Included
Mobile App Compatible	Yes: Android & iOS App Name: Sidus Link Functionality: Remote Control
Wireless Channels	3
Wireless Groups	4
Wireless Frequency	2.4 GHz
Wireless Range	328.1′ / 100 m

Power & I/O

Power Source	AC Power (Cable Included) Battery (Not Included)
Inputs/Outputs	Light Fixture 1x XLR 5-Pin Power Input Power Supply/Controller 1x powerCON AC Power Input 1x XLR 5-Pin Power Output 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output
Battery Plate Type	2x V-Mount (Built-In)
Battery	2x V-Mount Rechargeable, 14.4 VDC (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	1x USA Type-A/B to powerCON Cable (19.7′ / 6 m) 1x XLR 5-Pin Male to XLR 5-Pin Female Cable (9.8′ / 3 m)
Inline Switch	No
Power Pass-Thru	No
Power Consumption	350 W

Mounting

Yoke Type	Manually-Operated Yoke (180° Tilt)
Fixture Mounting	1x 5/8″ Receiver (Via Yoke Mount)

General

Display	LCD
Environmental Resistance	No
Certifications	CE, CE RED, FCC, KC, PSE, RoHS, cTUVus
Materials	Aluminum (Housing)
Dimensions	5 x 11 x 3.8″ / 27.9 x 9.7 x 12.7 cm (Power Supply/Controller) 13.6 x 8.5 x 11.7″ / 34.5 x 29.8 x 21.6 cm (Fixture)
Weight	25.13 lb / 11.4 kg
