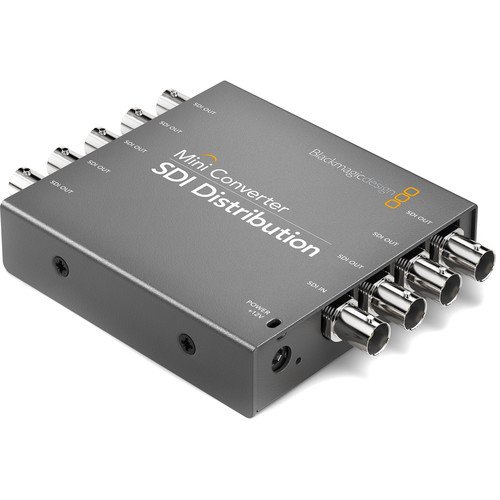

Name: Blackmagic Design Mini Converter SDI Distribution
SKU: CONVMSDIDA
Price: 1669.00 AED
Availability: InStock

The Blackmagic Design Mini Converter SDI Distribution is a 1×8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.

The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.

Specification

Inputs	1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI
Outputs	8x SDI: Automatically match the SDI video input
Re-clocking	Yes
Supported Formats	NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
Video Sampling	4:2:2 and 4:4:4
Audio Sampling	Television standard sample rate of 48 kHz and 24-bit
Color Precision	4:2:2 and 4:4:4
Color Space	YUV and RGB
ASI Support	Yes
Power Supply	12V universal power supply included
Power Consumption	110V: 40mA 220V: 20mA
Voltage Range	12-30V
