Name: Blackmagic Design PYXIS 6K Cinema Box Camera (Leica L)
SKU: CINECAMCPYXA60LFL
Availability: OutOfStock

Full Frame 6K Sensor
Up to 6K36 fps Open Gate / 6K Anamorphic
13-Stop Dynamic Range, Dual-Native ISO
Leica L Lens Mount
4″ HDR LCD Touchscreen
Records Blackmagic RAW and H.264 Proxies
Built-In Streaming via Ethernet or 4G/5G
Switchable Side Plates, Mounting Threads
Two CFexpress Card Slots, USB-C Port
Ethernet and 12G-SDI Ports

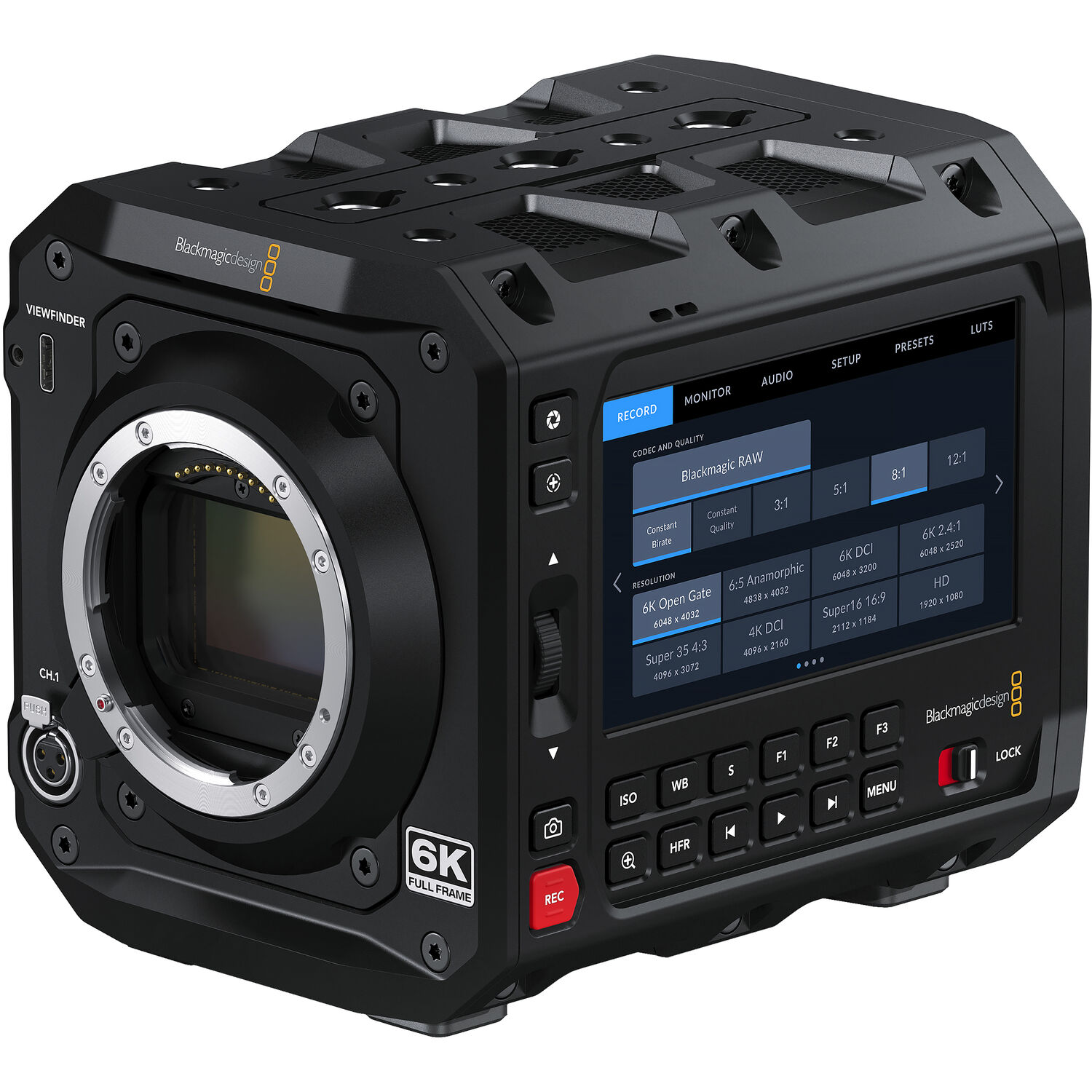

The Blackmagic Design PYXIS 6K Cinema Box Camera takes the digital film innovations of the Blackmagic Design Cinema Camera 6K and turns it into a box-style cinema camera with a native Leica L lens mount with customizable side plates. A full-frame 6K sensor captures rich colors, accurate skin tones, and a wide 13-stop dynamic range with its expanded 36 x 24mm sensor. Record both Blackmagic RAW and H.265 proxy files to the cloud or even stream directly to your social media platform of choice via Ethernet or mobile 4G/5G technology. The PYXIS can film up to 6K Open Gate 3:2 video at 36 fps or 6K Anamorphic 6:5 video at 60 fps, among other selectable resolutions.

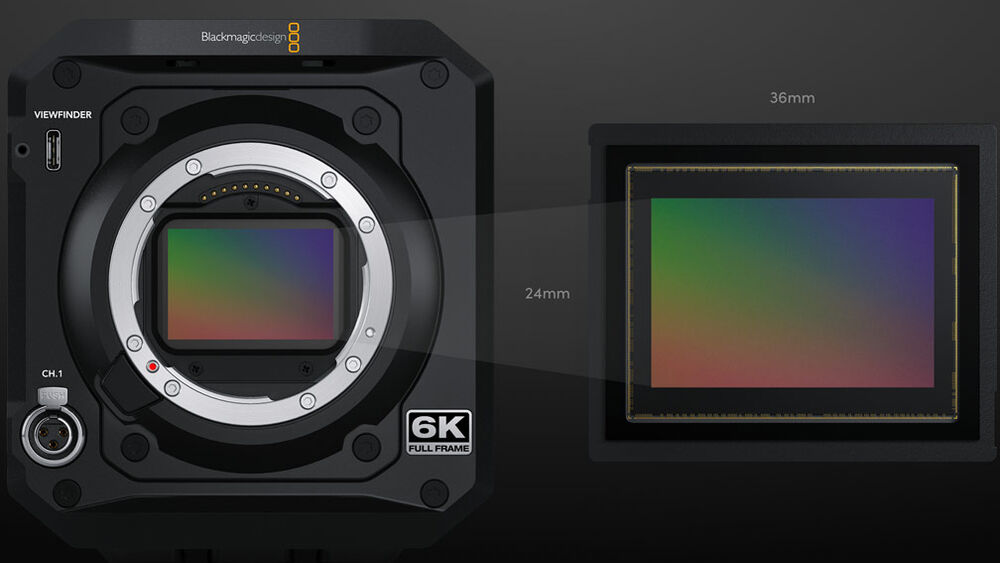

Large-Format Digital Filim Sensor

The PYXIS is equipped with a massive 24 x 36mm full-frame sensor with native 6048 x 4032 resolution, marking it 3x larger than a Super35 sensor. This allows you to shoot with a shallow depth of field or use anamorphic lenses without cropping for a true cinematic look. A 13-stop dynamic range with duel-native ISO up to 25,600 ensures low-noise imagery in all lighting conditions. Shoot up to 36 fps at full sensor resolution or 120 fps windowed.

Flexible Film Formats

Work in a variety of film formats and aspect ratios without sacrificing quality, thanks to the large sensor. At its full area, the sensor provides you with Open Gate 3:2 images for easier framing in post-production. You can also work in true 6:5 anamorphic without needing to crop for widescreen cinematics. Use a Super35-sized window to create a close-up version of your shot.

Multiple Resolutions and Frame Rates

Shoot in standard video resolutions and frame rates from HD to 6K or still images at 24.6 MP using the PYXIS. For higher frame rates, you can window the center and shoot up to 100 fps at 212 x 1184 Super 16. Other options include 6K Open Gate 3:2 at 36 fps, 4832 x 4032 anamorphic at 24 fps, and 1920 x 1080 at 120 fps, among other resolutions.

Effective Sensor Size	36mm x 24mm (Full Frame)
Lens Mount	Active L-Mount.
Lens Control	Iris and focus on supported lenses.
Dynamic Range	13 Stops.
Dual Native ISO	400 and 3200
Shooting Resolutions	6048 x 4032 (Open Gate 3:2) up to 36 fps 4832 x 4032 (Anamorphic 6:5) up to 36 fps 6048 x 3200 (6K DCI 17:9) up to 48 fps 6048 x 2520 (6K 2.4:1) up to 60 fps 4096 x 3072 (Super 35 4:3) up to 50 fps 4096 x 2160 (4K DCI 17:9) up to 60 fps 2112 x 1184 (Super 16 16:9) up to 100 fps 1920 x 1080 (1080 HD 16:9) up to 120 fps
Frame Rates	Maximum sensor frame rate dependent on resolutionand codec selected. Project frame rates of23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.
Focus	Auto focus available using compatible lenses.
Iris Control	Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses,iris button for instant auto iris settings on compatible lenses.
Screen Dimensions	4” 1920 x 1080.
Screen Brightness	1500 nits
Screen Type	LCD capacitive touchscreen.
Metadata Support	Automatically populated lens data from electronicL-Mount lenses. Automatic recording of camera settings,motion sensor data plus slate data such as project, scene number,take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls	Touchscreen menus on 4 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Playback Button, 1 x Next Clip Button, 1 x Previous Clip Button, 1 x Lock Switch.
Timecode Clock	Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections	Total Video Inputs	None
Total Video Outputs	1 x 12G-SDI up to 2160p60 1 x Viewfinder USB-C with power,data, video and locking connector.
Analog Audio Inputs	1 x mini XLR analog audio in, switchable between mic with phantom power support and line level(up to +14dBu).
Analog Audio Outputs	1 x 3.5mm headphone jack.
Reference Inputs	Tri-Sync/Black Burst and Timecode.
Computer Interface	USB Type-C for external drive recording, PTP camera control and software updates.
Ethernet	1 x 1Gb/s RJ 45 connector supporting 10/100/1000 BASE-T.
Audio:
Microphone	Integrated stereo microphone.
Built in Speaker	1 x mono speaker.
Media:
Media	2 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.
Media Format	Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs:
Codecs	Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5, H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Control:
External Control	Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet for external control via HTTP when used with REST client applications such as Postman.
Storage Features:
Storage Type	1 x CFexpress Type B 1 x high speed USB-C expansion port for external media.
Recording Formats	Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies.
Storage Rates	Storage rates based on 30 frames per second.
6048 x 4032 (6K Open Gate 3:2)	Blackmagic RAW 3:1 – 370 MB/s Blackmagic RAW 5:1 – 223 MB/s Blackmagic RAW 8:1 – 140 MB/s Blackmagic RAW 12:1 – 94 MB/s Blackmagic RAW Q0 – 278 to 555 MB/s Blackmagic RAW Q1 – 186 to 444 MB/s Blackmagic RAW Q3 – 124 to 318 MB/s Blackmagic RAW Q5 – 75 to 186 MB/s
4832 x 4032 (Anamorphic 6:5)	Blackmagic RAW 3:1 – 297 MB/s Blackmagic RAW 5:1 – 179 MB/s Blackmagic RAW 8:1 – 112 MB/s Blackmagic RAW 12:1 – 75 MB/s Blackmagic RAW Q0 – 223 to 445 MB/s Blackmagic RAW Q1 – 149 to 356 MB/s Blackmagic RAW Q3 – 100 to 255 MB/s Blackmagic RAW Q5 – 60 to 149 MB/s
6048 x 3200 (6K DCI 17:9)	Blackmagic RAW 3:1 – 295 MB/s Blackmagic RAW 5:1 – 177 MB/s Blackmagic RAW 8:1 – 111 MB/s Blackmagic RAW 12:1 – 75 MB/s Blackmagic RAW Q0 – 221 to 441 MB/s Blackmagic RAW Q1 – 148 to 353 MB/s Blackmagic RAW Q3 – 99 to 253 MB/s Blackmagic RAW Q5 – 60 to 148 MB/s
6048 x 2520 (6K 2.4:1)	Blackmagic RAW 3:1 – 233 MB/s Blackmagic RAW 5:1 – 140 MB/s Blackmagic RAW 8:1 – 88 MB/s Blackmagic RAW 12:1 – 59 MB/s Blackmagic RAW Q0 – 175 to 348 MB/s Blackmagic RAW Q1 – 117 to 279 MB/s Blackmagic RAW Q3 – 78 to 199 MB/s Blackmagic RAW Q5 – 47 to 117 MB/s
4096 x 3072 (Super 35 4:3)	Blackmagic RAW 3:1 – 192 MB/s Blackmagic RAW 5:1 – 116 MB/s Blackmagic RAW 8:1 – 73 MB/s Blackmagic RAW 12:1 – 49 MB/s Blackmagic RAW Q0 – 145 to 288 MB/s Blackmagic RAW Q1 – 97 to 231 MB/s Blackmagic RAW Q3 – 65 to 165 MB/s Blackmagic RAW Q5 – 39 to 97 MB/s
4096 x 2160 (4K DCI 17:9)	Blackmagic RAW 3:1 – 136 MB/s Blackmagic RAW 5:1 – 82 MB/s Blackmagic RAW 8:1 – 52 MB/s Blackmagic RAW 12:1 – 35 MB/s Blackmagic RAW Q0 – 102 to 203 MB/s Blackmagic RAW Q1 – 69 to 163 MB/s Blackmagic RAW Q3 – 46 to 117 MB/s Blackmagic RAW Q5 – 28 to 69 MB/s
2112 x 1184 (Super 16 16:9)	Blackmagic RAW 3:1 – 40 MB/s Blackmagic RAW 5:1 – 24 MB/s Blackmagic RAW 8:1 – 16 MB/s Blackmagic RAW 12:1 – 11 MB/s Blackmagic RAW Q0 – 30 to 59 MB/s Blackmagic RAW Q1 – 21 to 48 MB/s Blackmagic RAW Q3 – 14 to 34 MB/s Blackmagic RAW Q5 – 9 to 21 MB/s
1920 x 1080	Blackmagic RAW 3:1 – 33 MB/s Blackmagic RAW 5:1 – 20 MB/s Blackmagic RAW 8:1 – 13 MB/s Blackmagic RAW 12:1 – 9 MB/s Blackmagic RAW Q0 – 25 to 49 MB/s Blackmagic RAW Q1 – 17 to 40 MB/s Blackmagic RAW Q3 – 12 to 29 MB/s Blackmagic RAW Q5 – 8 to 17 MB/s Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter.
Power Requirements:
Power Supply	1 x External 12V power supply.
External Power Input	1 x 2 pin locking connector.

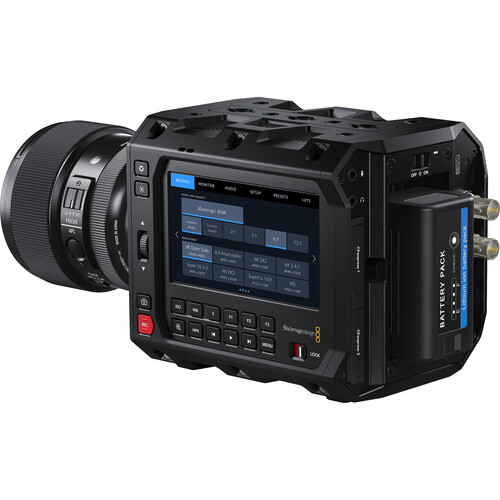

Battery Type	BP-U
Power	11-19.5V
