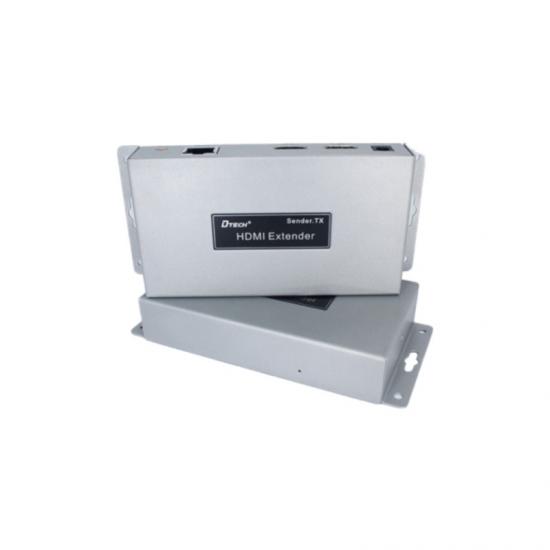

DTECH 4K HDMI Cascade Extender Via Single Cat 5e/6 Cable HDMI Extender Support IR Tx Rx Cascade Connection Receiver Transmitter

Ⅰ. Product Description

Product Name	4K HDMI Cascading Extender
Model	DT-7084（GS）
Resolution	Point to point: 4K@60Hz, up to 60m One point to five cascades: 4K@30Hz, each cascade can reach 50m, the total distance is 200m
Warranty	1 Year

Ⅱ. Product Parameter

(1) Support Cat5e/Cat6e/single shielded/unshielded twisted pair real-time point-to-point, cascaded transmission of image and audio signals;

(2) HDMI signal supports 4K@30Hz resolution, backward compatible with multiple resolutions;

(3) The transmitter supports local output;

(4) The receiving end can be connected in series with the same type of receiving end for cascade transmission, and it can be cascaded for 50 meters; (recommended to use Haikang Super Category 5 or Category 6 standard network cable)

(5) With signal 3dB gain or pre-compensation, to ensure the true restoration of high-definition signal;

(6) Anti-lightning, dust-proof, anti-static, and prolong the service life;

(7) Using 26AWG HDMI standard cable, the transmission distance at the input end can reach 10 meters, and the transmission distance at the output end can reach 5 meters.

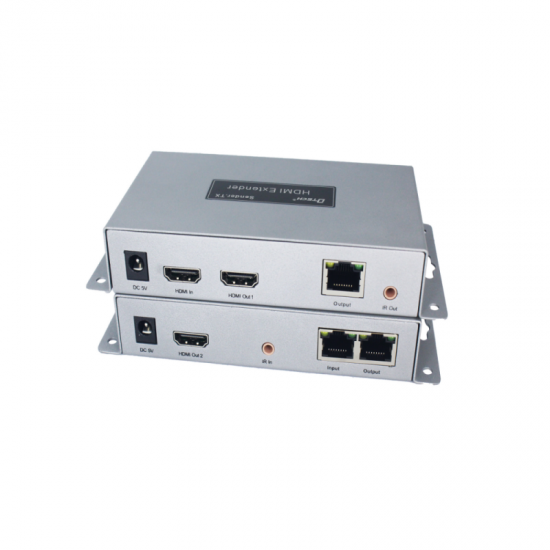

Ⅲ. Interface Description

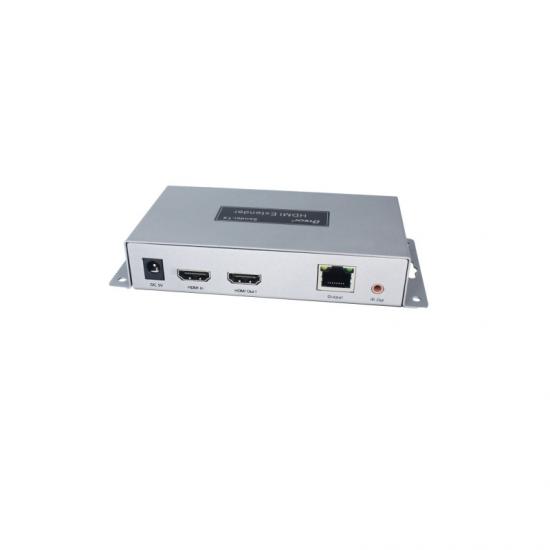

1.Transmitter

Interface	Function Description
DC 5V	DC power input port, 5VDC power adapter input
HDMI In	HDMI Input Port
HDMI Out1	HDMI Output Port
Output	Network Cable output Port
IR Out	Connect infrared output Port

2.Receiver

Interface	Function Description
DC 5V	DC power input port, 5VDC power adapter input
HDMI Out2	HDMI Output Port
IR In	Connect infrared input Port
Iuput	Network Cable input Port
Output	Network Cable output Port
