Name: FeelWorld L4 HDMI Livestream Switcher with 10.1" LCD Monitor
SKU: L4
Availability: InStock

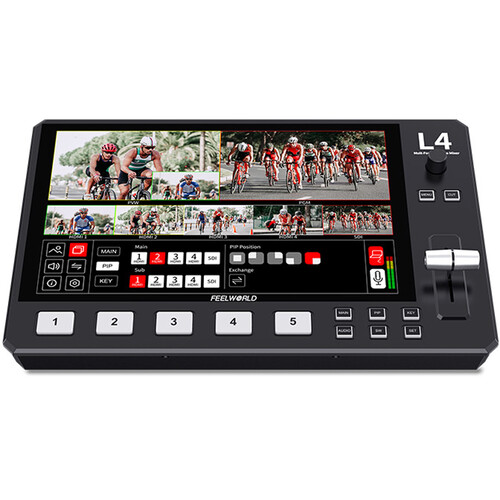

Live-switch, control, and stream your video content using one SDI and up to four HDMI video sources using the L4 HDMI Livestream Switcher with Built-In 10.1″ LCD Monitor from FeelWorld. This compact video switcher can switch up to five inputs, output program and preview video via HDMI and SDI, and stream up to 1080p60 video via USB 3.0 using your computer and third-party streaming software. You can view up to seven pictures on the 10.1″ touchscreen display, including the five individual inputs, PGM preview, and PST preview.

Touchscreen Monitoring and Control

The L4 switcher enables you to switch between inputs using the touchscreen, the T-bar, or the large LED buttons that light up with green or red tally indicators, or it can be controlled via a computer or smartphone app.
You can monitor all four inputs using the built-in color TFT display on the unit, or you can output Program/Preview via the HDMI and SDI outputs.

Chroma Keying and Video Effects

Create engaging video using the configurable PiP (picture-in-picture) modes and 13 transition effects.
Add professional effects via chroma keying.

Fast USB 3.0 Livestreaming

It supports video output up to 1080p60 via USB 3.0 for use with a variety of third-party streaming software or NLE video editing systems.
Use with popular platforms like YouTube, Facebook Live, Twitch, TikTok, and more.

Audio Options

You can utilize the HDMI or SDI-embedded audio or embed audio from a microphone or external source using the 3.5mm stereo input jack.
There is also a 3.5mm output jack to de-embed the audio for use with external speakers or an audio mixer.
The L4 switcher supports 2-channel audio mixing.

Durable Design

This slim switcher features a durable aluminum housing.
A built-in fan switches on automatically to keep the unit cool.

Specification

Effect Types

1x Graphic, Transition, Chroma Key

Processing

Switching Type	Pushbutton, T-Bar, Touchscreen
Processing Resolution	1080p at 23.98/24/30/50/60

Input

Number of Video Input Sources	5

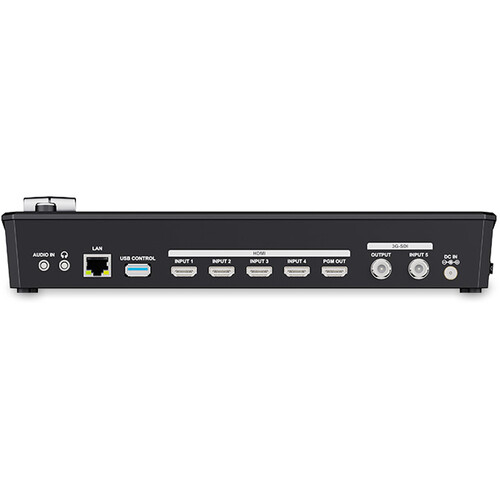

Video Inputs	4x HDMI (1.4) Female 1x BNC (HD-SDI) Female
Input Video Format	HDMI UHD 4K at 23.98/24/25/30 fps 1080p at 24/30/50/60 fps 1080i at 50/60 fps 720p at 50/60 fps WUXGA (1920 x 1200) at 60 fps WUXGA+ (1680 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WXGA+ (1440 x 900) at 60 fps FWXGA (1366 x 768) at 60 fps 1360 x 768 at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps XGA (1024 x 768) at 60 fps SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 25/29.97/30/50/59.94/60 fps
Audio Inputs	1x 1/8″ / 3.5 mm TRS Stereo Analog Female
Embedded Audio Input	HDMI SDI

Output

Video Output Channels	3
Video Outputs	1x HDMI (1.4) Female 1x USB-A (3.0) Female 1x BNC (HD-SDI) Female (Monitor)
Output Video Format	HDMI 1080p at 25/30/50/60 fps 720p at 50/60 fps 1360 x 768 at 60 fps SXGA (1280 x 1024) at 60 fps 1280 x 768 at 60 fps XGA (1024 x 768) at 60 fps USB-C 1080p at 25/30/50/60 fps 720p at 50/60 fps SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 720p at 25/29.97/30/50/59.94/60 fps
Audio Outputs	1x 1/8″ / 3.5 mm TRS Stereo Analog Female
Output Audio Format	Analog
Embedded Audio Output	HDMI: 2-Channel USB-A: 2-Channel
Multiview Output	4-Way Multiview via HDMI
