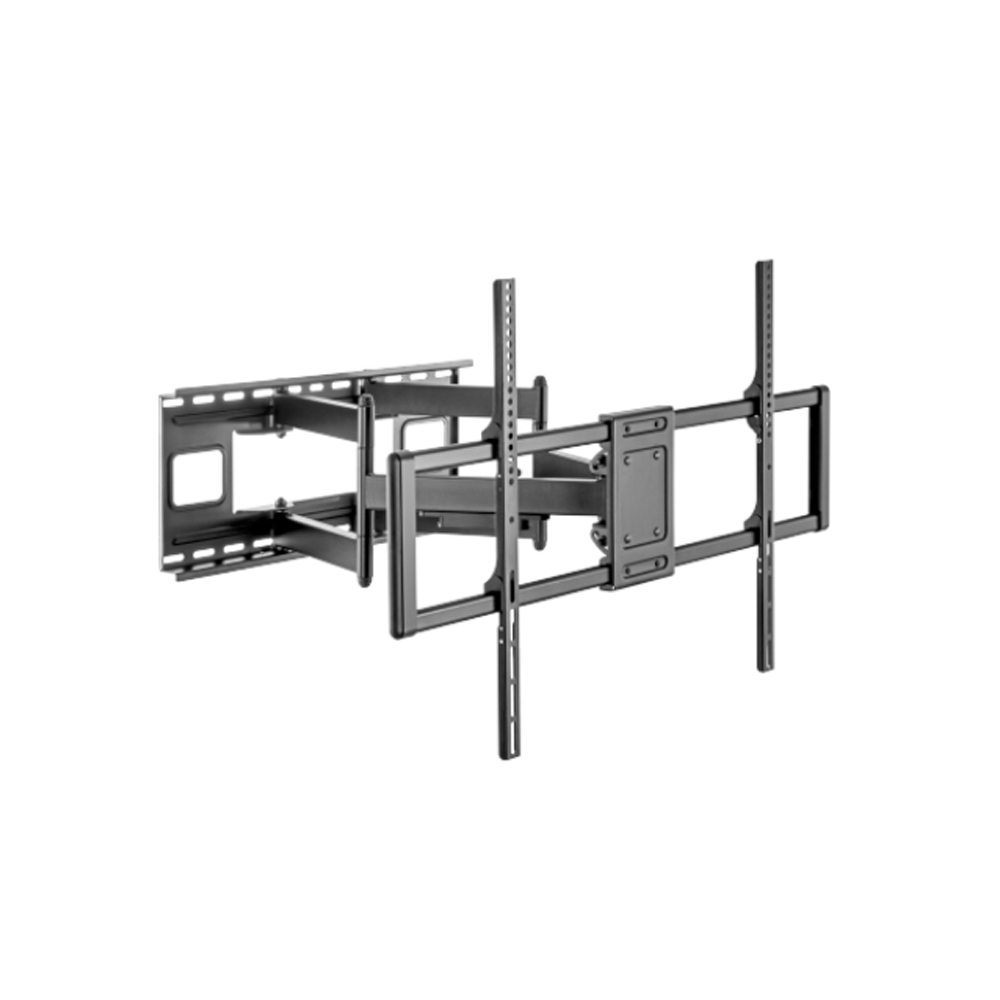

Name: LPA77-696 HEAVY-DUTY FULL-MOTION TV WALL MOUNT FOR 60~120''
SKU: LPA77-696
Availability: InStock

Heavy-duty arms provide strong support for larger and heavier TVs up to 120kg, it basically holds all types of TVs from 60” to 120”. TV installation and removal are made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.

FEATURES

Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Cable Management: keeps everything organized
Extending Arm: provides a wide range of viewing angles
Quick-Release Latch: locks/unlocks the display in place
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Steel
Metal Sheet Thickness:	Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.079″ cold-rolled sheet,VESA Panel THK=0.079″ cold-rolled sheet,Wall Plate THK=0.12″ pickling sheet)
Pipe Size:	50x25x1.5mm Square Steel Tube (2″x0.98″x0.059″ Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	703x1010x630mm (27.7″x39.8″x24.8″)
Fit Screen Size:	60″-120″
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA Only
VESA Compatible:	200×200,300×200,400×200,300×300,400×300,400×400,600×400,800×400,800×600,900×600
Max. Mounting Hole:	910×610
Weight Capacity:	120kg (264lbs)

Strength Tested:	3 Times Approved
Profile:	75~703mm (3″~27.7″)
Tilt Range:	+5°~-15°
Swivel Range:	+60°~-60°
Screen Level:	+5°~-5°
Screen Freely Tilting:	Yes
Installation:	Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Direction Indicator:	Yes
Cable Management:	Yes
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Compartment Polybag
