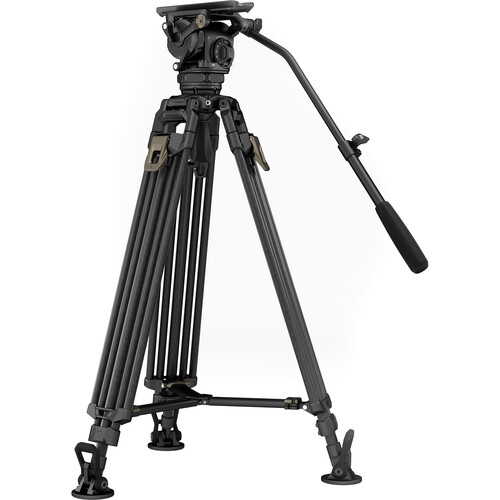

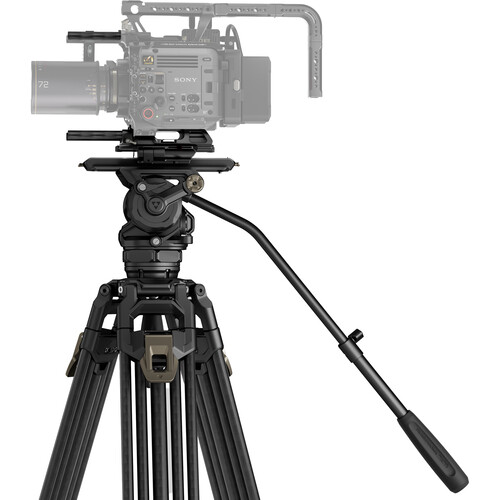

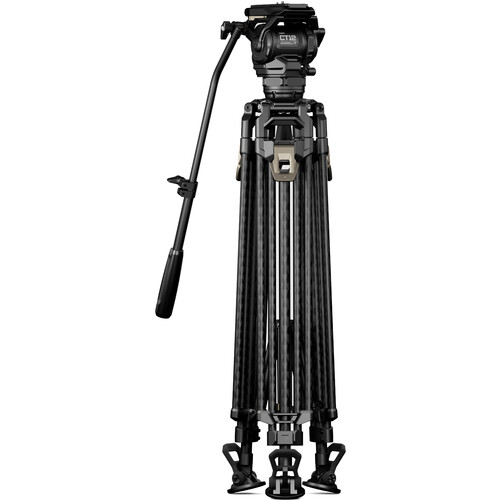

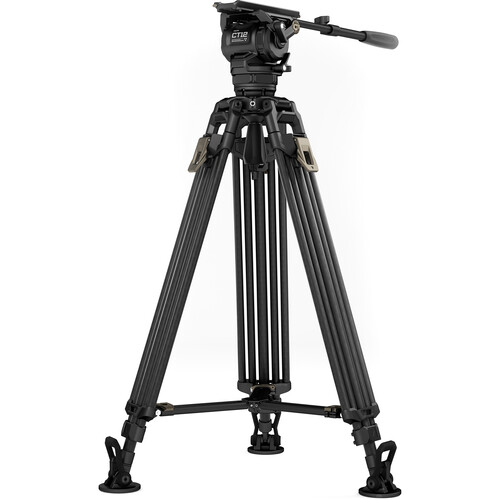

Name: Tilta CT12 75mm Cine Fluid Head With 2-Stage One-Touch Carbon Fiber Tripod System
SKU: TT-CT12-75-SG
Availability: InStock

Utilize a tripod system that stands up to the demands of ENG and EFP production with the space gray CT12 75mm Cine Fluid Head With 2-Stage One-Touch Carbon Fiber Tripod System from Tilta. The CT12 system features a 100/75mm two-stage carbon fiber tripod and an aluminum 75mm fluid head, and it supports 2.2 to 26.5 lb payloads. Other features include an illuminated bubble level, a Manfrotto-type drop-in plate, and a professional damping design for smooth camera movements.

The head provides smooth movements with 10-step dynamic counterbalance, eight levels of pan/tilt drag, +90/-60° tilt, and 360° panning. A pan handle is included with the head, and it can be used on either the left or right side of the tripod. The two-stage carbon fiber tripod is equipped with a single fast lock, without the need to lock and unlock individual stages. It can extend from 2.5 to 5.4′ in height and can accommodate 75 or 100mm tripod heads.

75mm Standard

The head features a 75mm half-ball base and eight levels of adjustable drag, ensuring comfortable operation for a range of different systems. Smooth damping ensures fluid pitch and horizontal movement, easily creating a cinematic feel.

Counterbalance

The counterbalance supports up to 26.5 lb, featuring 10 levels of dynamic balance adjustment. It accommodates camera systems weighing 2.2 to 26.5 lb to maintain stable balance at any tilt angle.

Manfrotto-Type Quick Release

The drop-in Manfrotto receiver enables quick mounting and offers an easy way to balance the camera’s center of gravity without using a dovetail plate. The 360° panoramic base enables smooth horizontal camera sweeps and expansive panoramic shots with ease and features independent locks for the 360° base and for the tilt axis, ensuring equipment remains stable and secure when needed.

Durable, Lightweight Carbon Fiber Legs

The legs can accommodate both 75 and 100mm tripod heads via a removable adapter and feature a plate buckle-style locking mid-level spreader for added stability.

One-Touch Legs

This kit uses 2-stage telescoping legs that can adjust to different heights with a single lock on each leg. This ensures users will no longer need to lock and unlock each stage individually, and it extends from 2.5 to 5.4′ in height.

Specification

Head Type	Fluid Head
Drag Control	Yes
Primary Material	Carbon Fiber
Load Capacity	26.5 lb / 12 kg
Maximum Working Height	5.95′ / 181.36 cm
Minimum Working Height	2.8′ / 84.1 cm
Closed Length	Not Specified by Manufacturer
Weight	17.09 lb / 7.75 kg

Head

Head Type	Fluid Head
Base Mount	75 mm Half Ball
Counter Balance	Incremental 10-Step
Dimensions	Base Diameter: 3.0″ / 75.00 mm

Pan & Tilt

Drag Control	Yes
Independent Pan Lock	Yes
Independent Tilt Lock	Yes
Vertical Tilt	+90° to -60°
Lateral Tilt	No

Legs

Primary Material	Carbon Fiber
Leg Lock	Lever Lock
Leg Sections	3
Independent Leg Spread	No

General

Load Capacity	26.5 lb / 12 kg
Maximum Working Height	5.95′ / 181.36 cm
Minimum Working Height	2.8′ / 84.1 cm
Closed Length	Not Specified by Manufacturer
Accessory Mounting	1x Pan Handle Fitting
Bubble Level	Yes (Illuminated)
Spreader Support	Mid-Level
Weight	17.09 lb / 7.75 kg
