Name: Tilta Full Camera Cage V2 for Sony FX3 &amp; FX30-Black
SKU: TA-T16-FCC-B
Availability: InStock

This Full Cage features many ways to mount various accessories such as 1/4”-20 and 3/8″-16 threads with various locating points, two cold shoe receivers, a NATO Rail for Top Handles, and mounting points for a Single Rod Holders

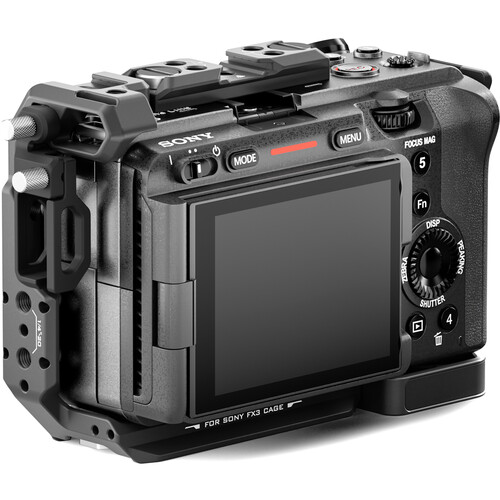

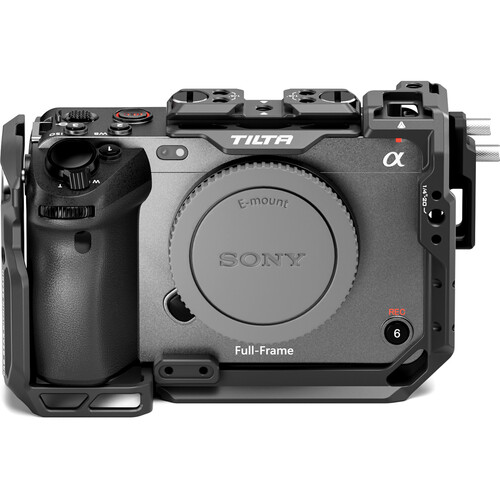

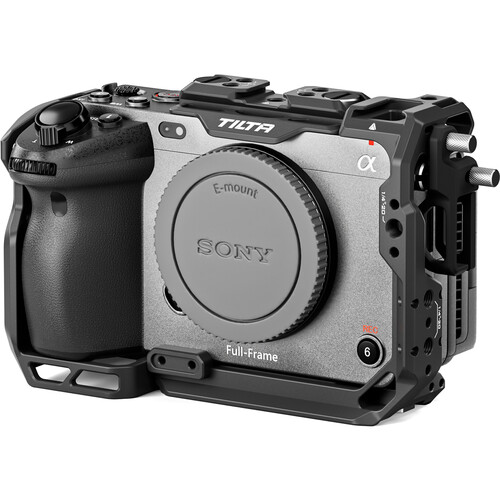

Add protection and accessories to your Sony FX3 or FX30 digital cinema camera with this lightweight and modular Camera Cage V2 from Tilta. This updated model offers the option of full cage protection or a lighter-weight half cage suitable for gimbal use by removing its side L-bracket. The black aluminum cage maintains access to the camera’s controls and features a removable NATO top plate that enables the use of the original XLR top handle or another handle.

Use the cage to mount a variety of accessories using the top plate NATO rail, the shoe mount, and the 3/8″-16 and 1/4″-20 threads with anti-twist locating pins. The cage also features an integrated Arca-style base for quick mounting onto tripod heads and gimbal mounts. It can be used in both horizontal and vertical orientations and also features a right-side handgrip, an HDMI cable clamp, and strap slots for an optional wrist or neck strap.

Compatibility

Sony FX3 cinema camera
Sony FX30 cinema camera
Original Sony XLR top handle

Modular Design

The cage can be configured for both full cage protection and a lighter-weight half cage form for gimbal use. The top module is individually removable and is compatible with the original XLR audio handle. The L-Bracket is removable and can be used as a half cage.

Multiple Accessory Mounts

Accessory-mounting options include a NATO rail, a shoe mount, as well as 3/8″-16 and 1/4″-20 threads with locating pins. The bottom of the camera cage features an Arca-type design for quick installation onto baseplates and gimbals.

Mounting Security

The camera body can be secured via three mounting screws on the left, right, and bottom. The included cable clamp prevents pulling or disconnecting, and it mounts with a thumbscrew

Specification

Battery Plate Type	No
Accessory Mounting	Multiple Anti-Twist 1/4″-20 Female Thread Multiple ARRI Anti-Twist 3/8″-16 Female Thread
Camera Mounting	1/4″-20 Male Screw
Tripod Mounting	Cage 3/8″-16 Female Thread, Built-In Arca-Type Plate
Shoe Mounting	1x Cold Shoe
Rosettes	No
Rail Mounting	Side Plate 1x NATO Rail
Cable Clamp	1x HDMI Clamp

General

Support Type	Cage
Grip Type	Single Handgrip
Camera Compatibility	Sony FX3, Sony FX30
Materials	Aluminum, Silicone
Dimensions	4.5 x 0.4 x 2.4″ / 114.8 x 9 x 60 mm
Weight	5.6 oz / 160 g
