Name: Viltrox DC-A1 7" HDMI 2.0 High-Bright On-Camera Monitor
SKU: DC-A1
Availability: InStock

The lightweight DC-A1 7″ HDMI 2.0 High-Bright Monitor from Viltrox lets you view your camera’s image on an ultrabright, sharp 7″ display. The DC-A1 supports up to DCI/UHD 4K60 via the HDMI video input and can send the signal to another display through an HDMI loop-through output. This model features multiple image tools such as histogram and waveform, and its high 2800 cd/m² brightness makes it suitable for outdoor use in bright sunlight.

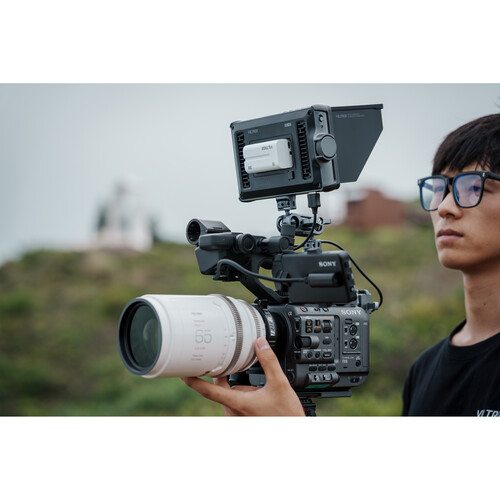

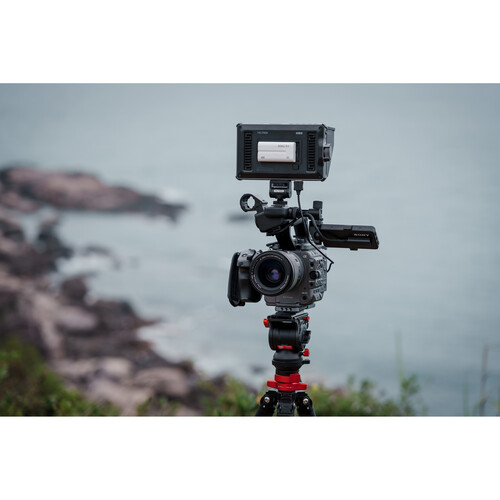

The DC-A1 features a 1920 x 1080 display that supports live view from your camera, and you can monitor the audio via its built-in speaker or 3.5mm headphone jack. At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with the L-series battery, or you can power it with a separately available DC barrel or USB-C adapter. The camera mounts onto a cage, camera, or rig using the included tilt/swivel shoe adapter mount, and a quick release sun hood is available to protect the monitor from glare.

Ultrabright Display

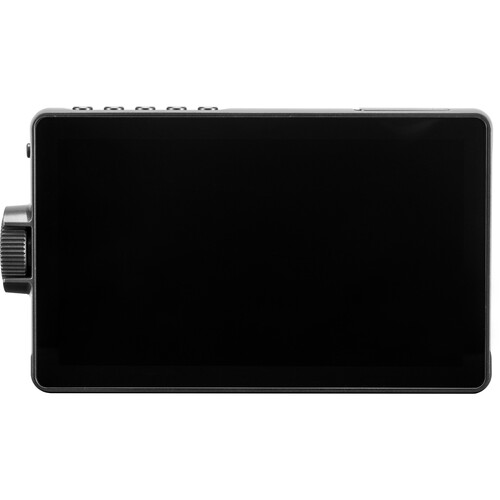

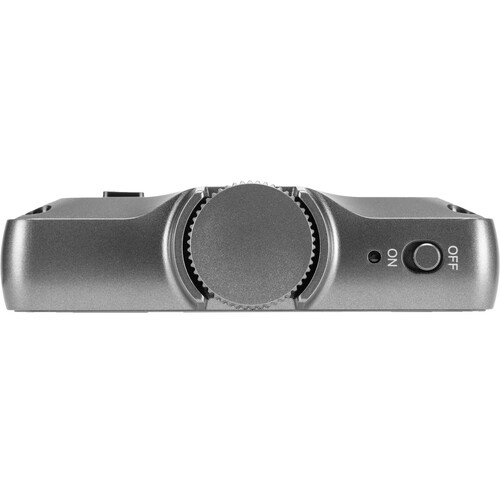

The DC-A1 7″ on-camera LCD monitor features a 1920 x 1080 resolution and is clearly visible, even in direct sunlight, with its 2800 cd/m² brightness. Touchscreen and Intuitive Controls. The monitor features smooth, finger-tip operation with a responsive UI and full touchscreen. You can also quickly access key functions via a knob and custom programmable buttons.

Built-In Monitoring Tools

Built into the firmware, the monitor features multiple pro monitoring tools, including focus peaking, zebras, and waveform. The tools allow you to preview and adjust footage with precise visual control. The monitor also features multiple built-in LUTs, and you can also load custom 3D LUTs using the USB-A port.

4K Input and Loop Output

The monitor features an HDMI input and an HDMI loop output that support up to 4K60 resolutions for seamless, lossless signal monitoring.

Rugged, Travel-Ready Design. The compact monitor is built with durable materials to withstand the rigors of production, and it weighs only 12.3 oz. It also includes a protective sun hood and a carry case.

Multiple Power Options

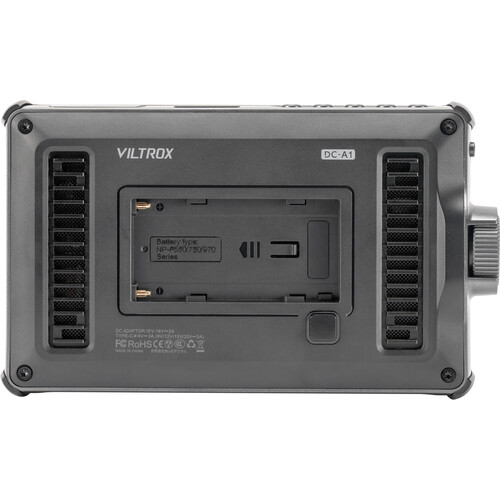

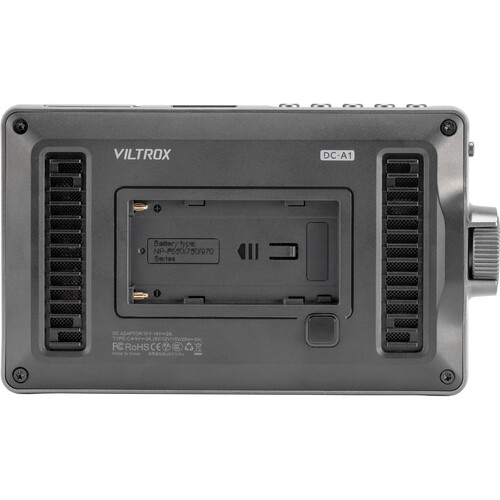

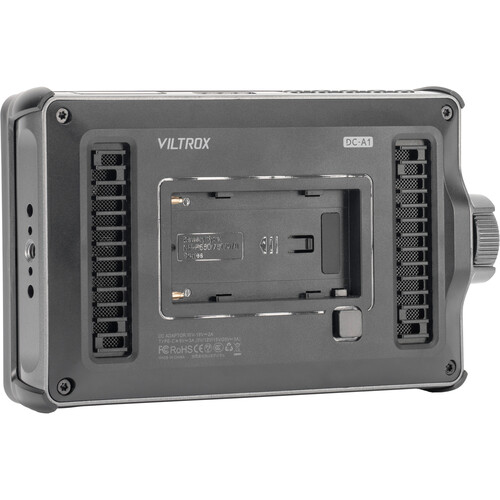

Power the monitor with a separately available DC barrel or USB-C power adapter or via Sony L-series type batteries in the built-in battery plate.

Display Size	7.0″ / 17.8 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	No
Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Media/Memory Card Slot	No
Video Format	HDMI DCI 4K: 60/30/25/24 UHD 4K: 60/30/25/24 1080p: 60
Battery	1x L-Series Mount on Fixed Plate

Display

Panel Type	LCD
Display Size	7.0″ / 17.8 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	170°
Touchscreen	Yes
Maximum Brightness	2800 nits / cd/m² (Peak)
Contrast Ratio	1000:1
Color Support	16.7 Million Colors (8-Bit)
HDR Support	No
Color Gamut	100% sRGB
LUT Support	No
Image Controls	False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform

Inputs/Outputs

Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (2 A / 12 VDC) Input 1x USB-C (3 A / 5 VDC) Input
Other I/O	1x USB-A (LUT Upload) Input
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
DCI 4K: 60/30/25/24
UHD 4K: 60/30/25/24
1080p: 60

Power

Input Power	10 to 18 VDC at 2 A 9 VDC at 3
Battery	1x L-Series Mount on Fixed Plate

Mounting

Tripod/Accessory Mounting

Bottom/Right
2x 1/4″-20 Female

General

Environmental Resistance	No
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Material of Construction	Aluminum
Dimensions	7.4 x 4.4 x 1.1″ / 187.8 x 110.5 x 28.5 mm
Weight	12.3 oz / 348.00 g
