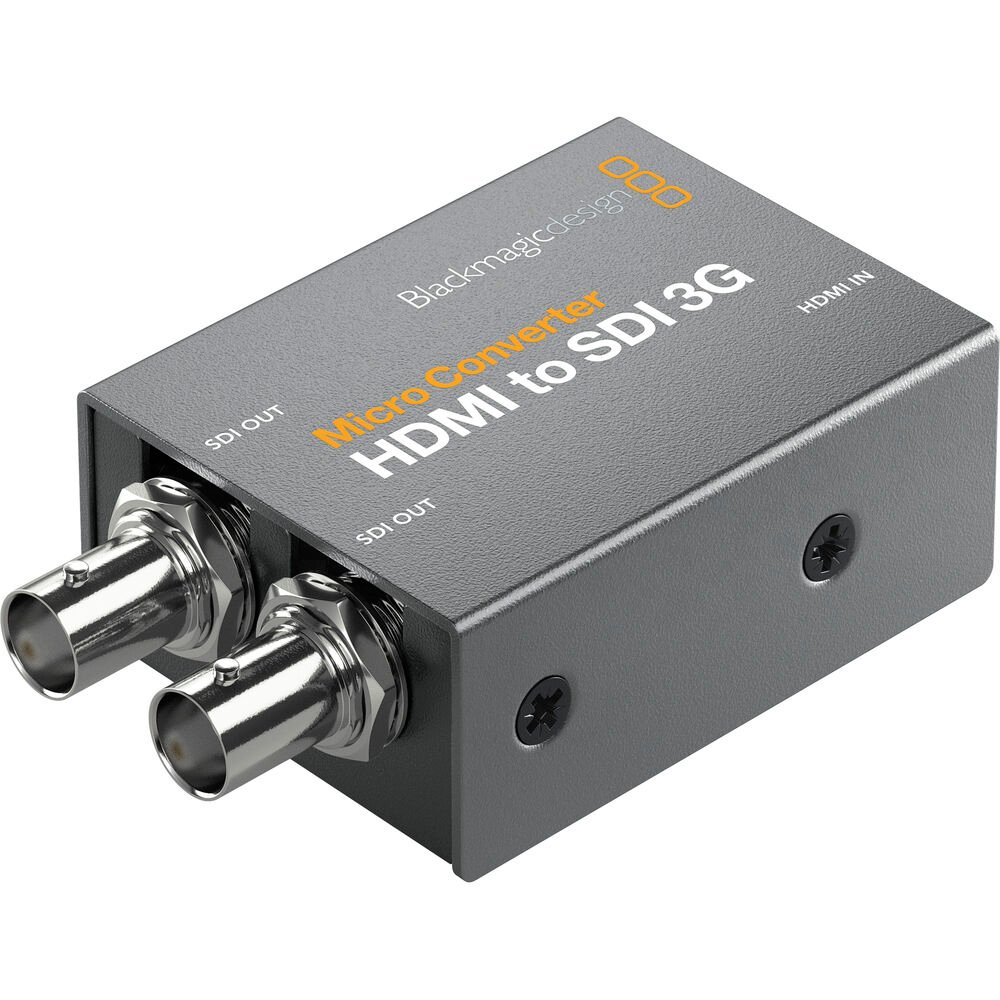

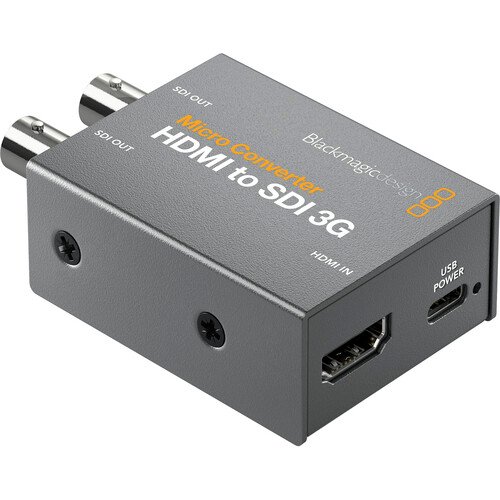

Name: Blackmagic Design Micro Converter HDMI to SDI 3G
SKU: CONVCMIC/HS03G/WPSU
Price: 369.00 AED
Availability: InStock

Super compact and rugged, the Micro Converter HDMI to SDI 3G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Features

Dual SDI Outputs

One HDMI input
Two 3G-SDI outputs
Selectable A and B level formats

Compact, Rugged Design

Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or PC

SDI & HDMI Timecode

HD and SD timecode support
Converts HDMI timecode to SDI

SDI Re-Clocking

Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

SDI support from NTSC and PAL up to DCI 2Kp60
HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

Supports embedded HDMI input and embedded SDI output

LED Indicators

LED indicators for video and power signals

Versatile Power Options

Power from a monitor, laptop, or other component using the USB Type-C port

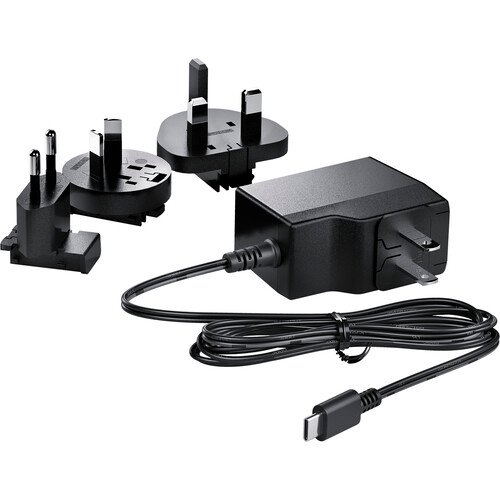

Includes a 100-240 AC power supply with four socket adapters

Video Inputs	1x HDMI (2.0)
Audio Inputs	No
Video Outputs	2x BNC (3G-SDI)
Audio Outputs	No
Other I/O	1x USB-C Input
Expansion Slots	No

Format Support

Input Video Format	HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Embedded Audio	HDMI/SDI
