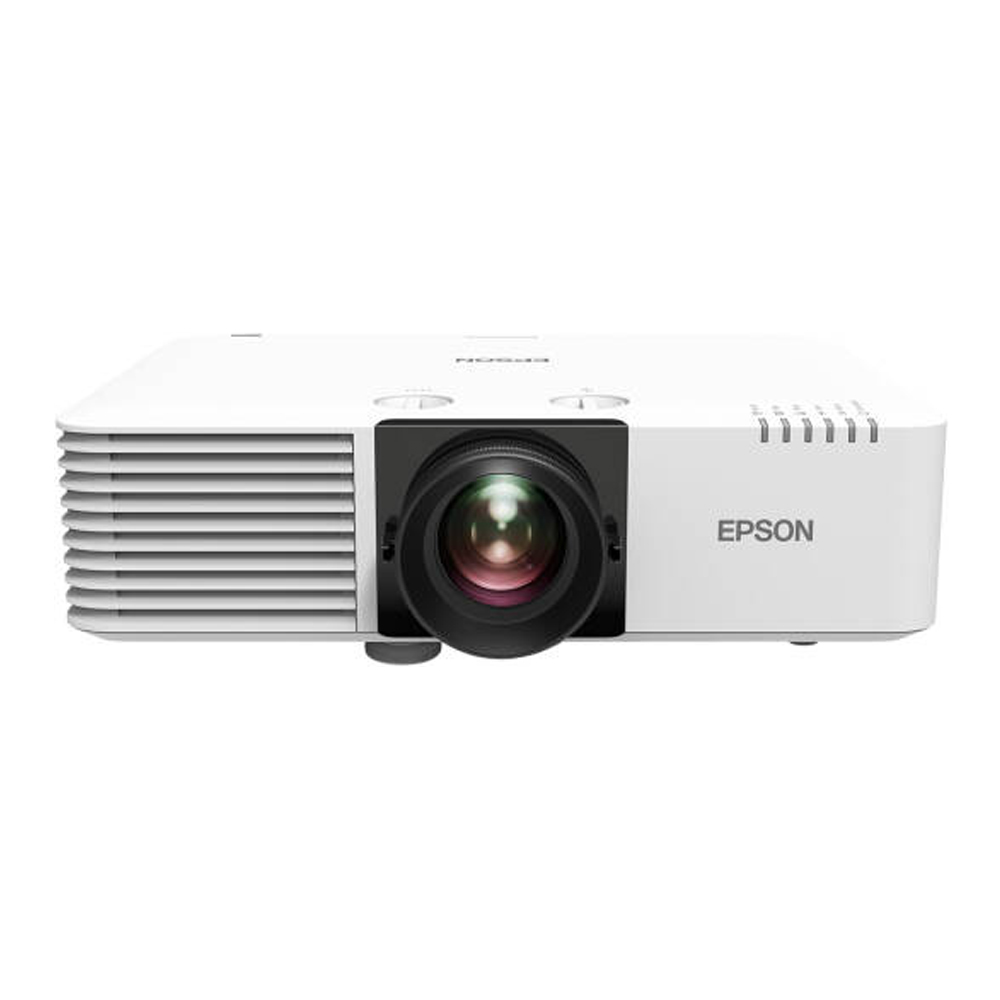

Name: Epson EB-L770U 4K Laser Projector 7000 Lumens
SKU: EB-L770U
Availability: InStock

7,000-lumen brightness Sharp images and vivid colours, even in well-lit rooms
4KE resolution Sharp 4KE images for excellent clarity
BYOD connectivity with optional wireless or wired and HDBaseT
Effortless, flexible installation Lightweight and compact design with wide lens shift
Large image Scalable display size of up to 500 inches

Specification

Projection System	3LCD Technology
LCD Panel	0.67 inch with C2 Fine
Color Light Output	7,000 Lumen- 4,900 Lumen (economy) In accordance with IDMS15.4
White Light Output	7,000 Lumen In accordance with ISO 21118:2020
Resolution	WUXGA
Resolution Enhancement	4K enhancement
Aspect Ratio	16:10
On-Screen Pixel Count	4,608,000 (1920 x1200 x2)
Contrast Ratio	Over 5,000,000 : 1
Light source	Laser
Laser Light source	20,000 hours Durability High, 30,000 hours Durability Eco
Keystone Correction	Manual vertical: ±30 °, Manual horizontal ±30 °
Colour Video Processing	10 Bits
Colour Reproduction	Upto 1.07 billion colours
HDR support	HDR10
Optical
Throw Ratio	1.35 – 2.20:1
Zoom	Manual, Factor:1 – 1.6
Lens	Optical
Lens Shift	Manual – Vertical ±50 %, horizontal ±20 %
Screen Size	50 inches – 500 inches
Projection Lens F Number	1.5 – 1.7
Projection Lens Focal Length	20 mm – 31.8 mm
Projection Lens Focus	Manual
Connectivity

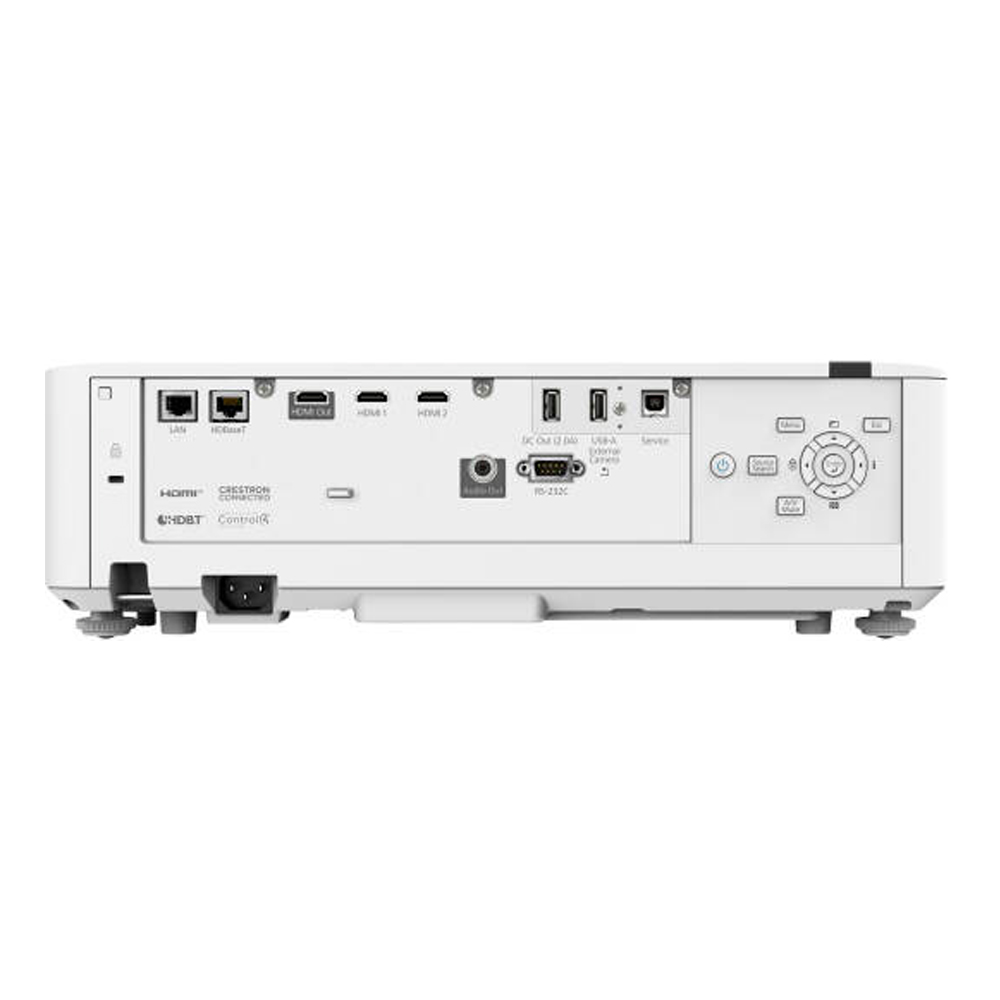

Interfaces	USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Ethernet interface (100 Base-TX / 10 Base-T)
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, IPv6, SNMP, PJLink
Advanced Features
Security	Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes	Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other features	21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App
Video Color Modes	Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control	via: Crestron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption	300 Watt (Normal On-Mode), 209 Watt (Eco On-Mode), 366 Watt (Normal Peak-mode), 277 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions	440‎ x 304 x 122 mm (Width x Depth x Height)
Product weight	8.5 kg
Noise Level	Normal:38 dB (A) – Economy:27 dB (A)
Supported Temperature	Storage -10° C – 60° C
Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
Included Software	Epson Projector Management
Options	Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Visualiser camera, WP System – ELPWP20
Loudspeaker	10 Watt
What’s in the box	Cable cover, HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty document
Room Type / Application	Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop
Colour	White
TCO Certified	For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf
Other
Warranty	36 months Carry in
Country of Origin
Country Of Origin	Philippines
