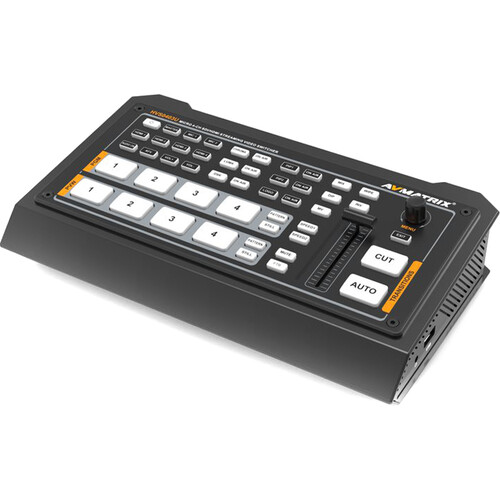

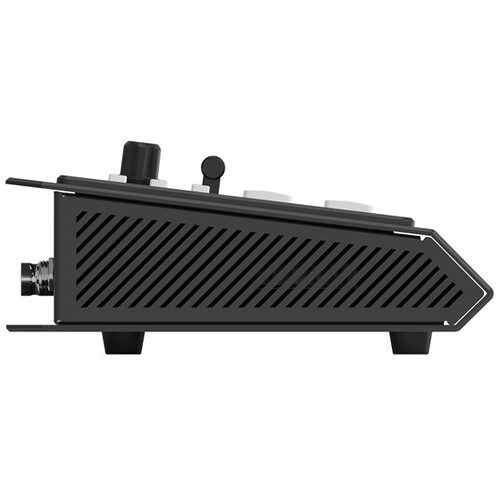

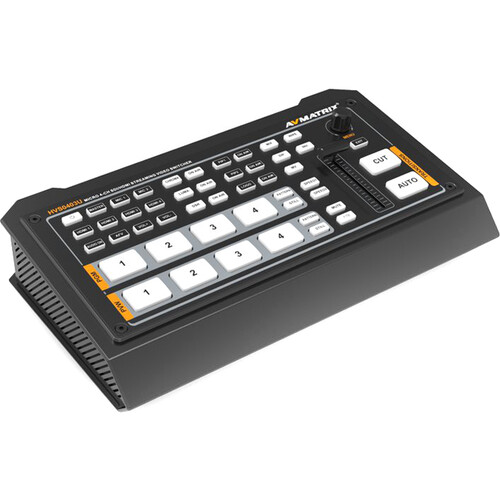

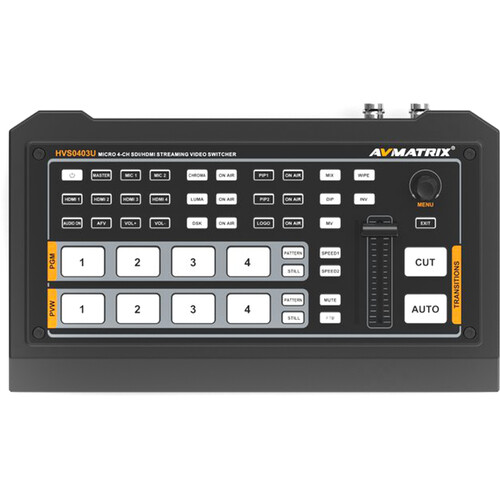

Name: AVMATRIX HVS0403U Micro 4-Channel SDI &amp; HDMI Video Switcher
SKU: HVS0403U
Availability: InStock

Key Features

Compact 4-Channel Video Switcher
2 HDMI and 2 SDI Autodetected Inputs
1 HDMI Multiview, 2 HDMI PGM Outputs
USB-C Output for Streaming
Supports up to 1080p60 Video I/O
Luma/Chroma Key, Mix/Fade/Wipe Effects
T-Bar, Auto, and Cut Transitions
Audio Mixing and PiP Layout
Supports PNG, JPG, and BMP Logo Overlays

Add professional video switching and audio mixing flexibility to your concert productions, house of worship, educational forum, or live sports programming with this HVS0403U Micro 4-Channel SDI & HDMI Video Switcher from AVMATRIX. Boasting two HDMI and two SDI autodetected inputs, the HVS0403U is a compact and user-friendly video switcher loaded with powerful features, including luma and chroma keying, mix/fade/wipe effects, audio mixing, and a picture-in-picture (PiP) or picture-on-picture (PoP) layout, using tactile functions such as auto and cut transitions or with the T-bar.

USB Capture for Streaming

Connect the switcher to a computer via the USB-C output and use software like OBS, PotPlayer, or vMix to realize livestreaming on YouTube, Facebook, Twitter, and other social media platforms.

Upstream and Downstream Keying

The switcher supports chroma and luma key for keying off blue/green and black background colors for virtual studio or live event applications.

Transition Effects

There are wipe (11 x 2 patterns), mix, and dip transition effects available using the T-bar or Auto button function, and users can also transition to different shots by switching via the Cut button.

Powerful Media Management

The media management functions feature 39 preset patterns, and users can import images from a USB thumb drive or capture and store the screenshot image originating from SDI1, SDI2, HDMI3, HDMI4, clean PGM, and PGM.

Audio Mixing and Audio Follows Video

Easily mix the embedded audio from the two HDMI and two SDI sources or set the embedded audio function to AFV (audio follows video) mode. You can also bring in two external audio sources via the unit’s two 3.5mm analog (mic/line) inputs.
